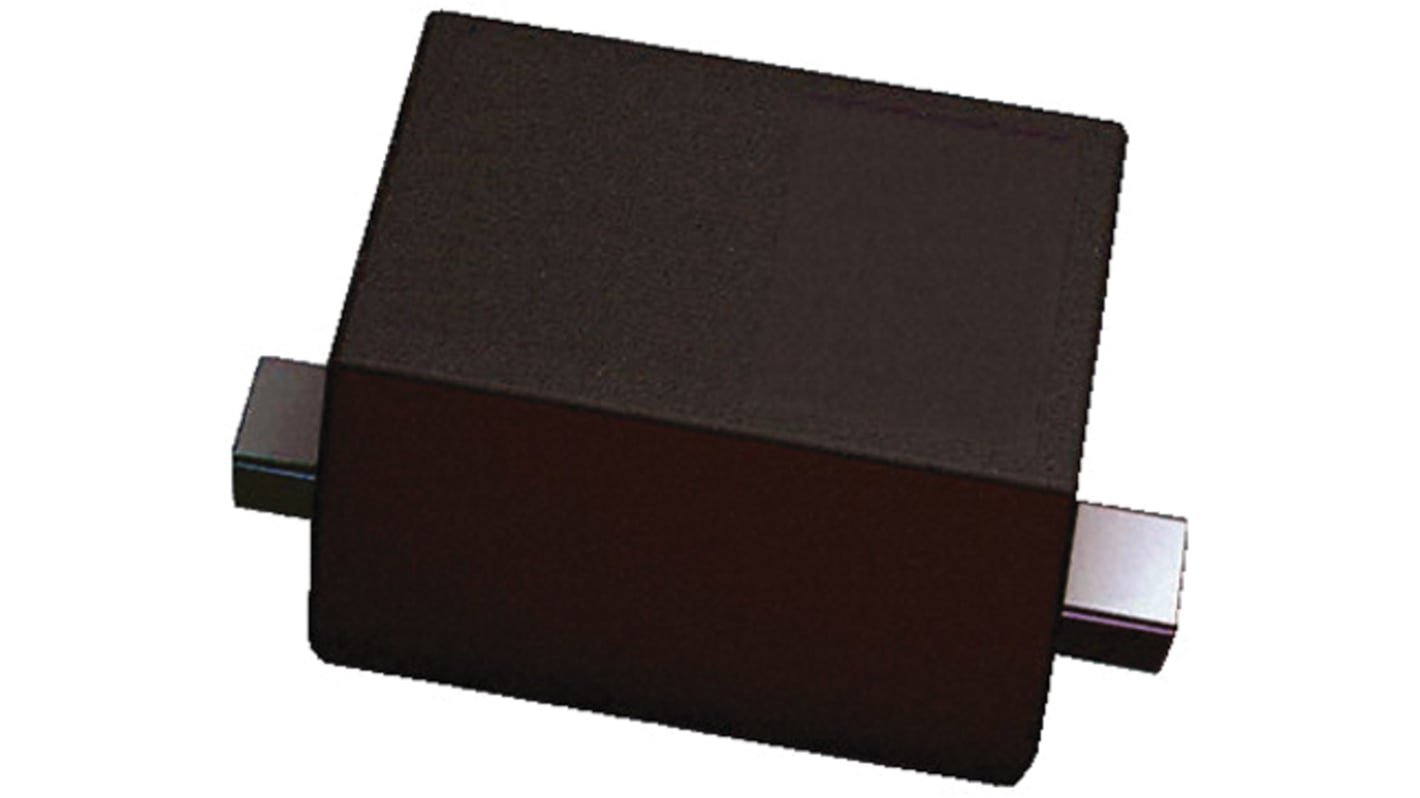

Diodes Inc, 15V Zener Diode ±2% 350 mW SMT 2-Pin SOD-523
- RS Stock No.:
- 170-9013
- Mfr. Part No.:
- BZT585B15T-7
- Brand:
- DiodesZetex
Available to back order for despatch 12/06/2024
Added
Price Each (On a Reel of 3000)
£0.032
(exc. VAT)
£0.038
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 + | £0.032 | £96.00 |
| *price indicative | ||
- RS Stock No.:
- 170-9013
- Mfr. Part No.:
- BZT585B15T-7
- Brand:
- DiodesZetex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Zener Diodes 350mW, BZT585B Series, Diodes Inc
Surface Mount Precision Zener Diodes
±2% Tolerance
Flat Lead Low Profile Package
±2% Tolerance
Flat Lead Low Profile Package
Zener Diodes, Diodes Inc
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 15V |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 350 mW |
| Package Type | SOD-523 |
| Zener Type | Precision |
| Zener Voltage Tolerance | ±2% |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 200Ω |
| Maximum Reverse Leakage Current | 50nA |
| Dimensions | 1.3 x 0.9 x 0.65mm |
| Maximum Operating Temperature | +150 °C |
| Forward Voltage | 1.1V |
| Typical Voltage Temperature Coefficient | 13.2mV/°C |
| Minimum Operating Temperature | -65 °C |
| Forward Current | 200mA |
- RS Stock No.:
- 170-9013
- Mfr. Part No.:
- BZT585B15T-7
- Brand:
- DiodesZetex
