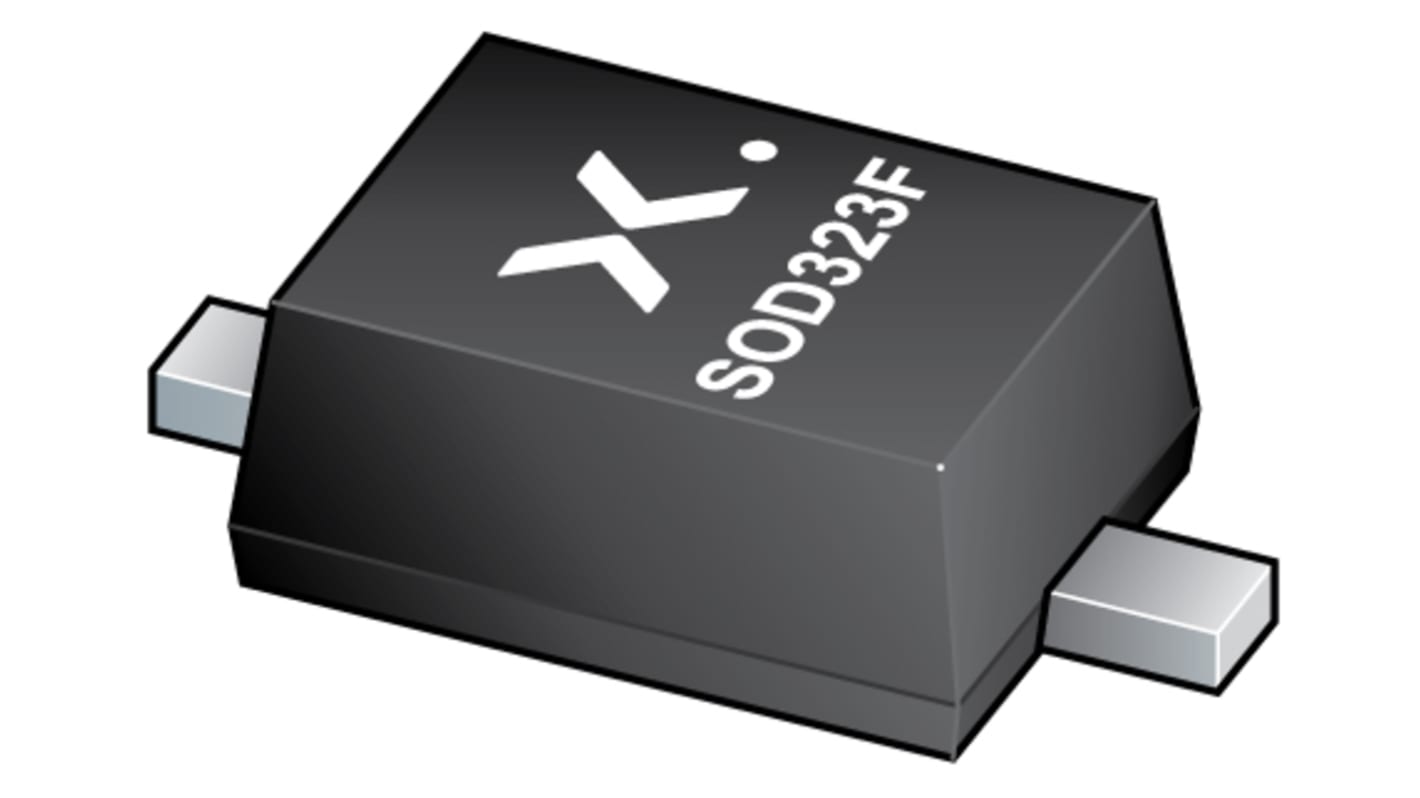

Nexperia, 4V Zener Diode 550 mW SMT 2-Pin SC-90, SOD-323F
- RS Stock No.:
- 152-3696
- Mfr. Part No.:
- TDZ4V7J,115
- Brand:
- Nexperia
35400 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 100)
£0.102
(exc. VAT)
£0.122
(inc. VAT)
| Units | Per unit | Per Pack* |
| 100 - 100 | £0.102 | £10.20 |
| 200 - 400 | £0.078 | £7.80 |
| 500 - 900 | £0.063 | £6.30 |
| 1000 - 2400 | £0.059 | £5.90 |
| 2500 + | £0.057 | £5.70 |
| *price indicative | ||
- RS Stock No.:
- 152-3696
- Mfr. Part No.:
- TDZ4V7J,115
- Brand:
- Nexperia
Technical Reference
Legislation and Compliance
Product Details
Single Zener diodes, General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Non-repetitive peak reverse power dissipation: ≤ 180 W
Low differential resistance
Total power dissipation: ≤ 500 mW
AEC-Q101 qualified
Very small plastic package suitable for surface-mounted design
General regulation functions
Low differential resistance
Total power dissipation: ≤ 500 mW
AEC-Q101 qualified
Very small plastic package suitable for surface-mounted design
General regulation functions
Specifications
Attribute | Value |
|---|---|
| Nominal Zener Voltage | 4V |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 550 mW |
| Package Type | SC-90, SOD-323F |
| Zener Type | General Purpose |
| Pin Count | 2 |
| Test Current | 5mA |
| Dimensions | 1.8 x 1.35 x 0.8mm |
| Typical Voltage Temperature Coefficient | 0.2mV/K |
| Minimum Operating Temperature | -55 °C |
| Forward Current | 250mA |
| Forward Voltage | 1.1V |
| Automotive Standard | AEC-Q101 |
| Maximum Operating Temperature | +150 °C |
