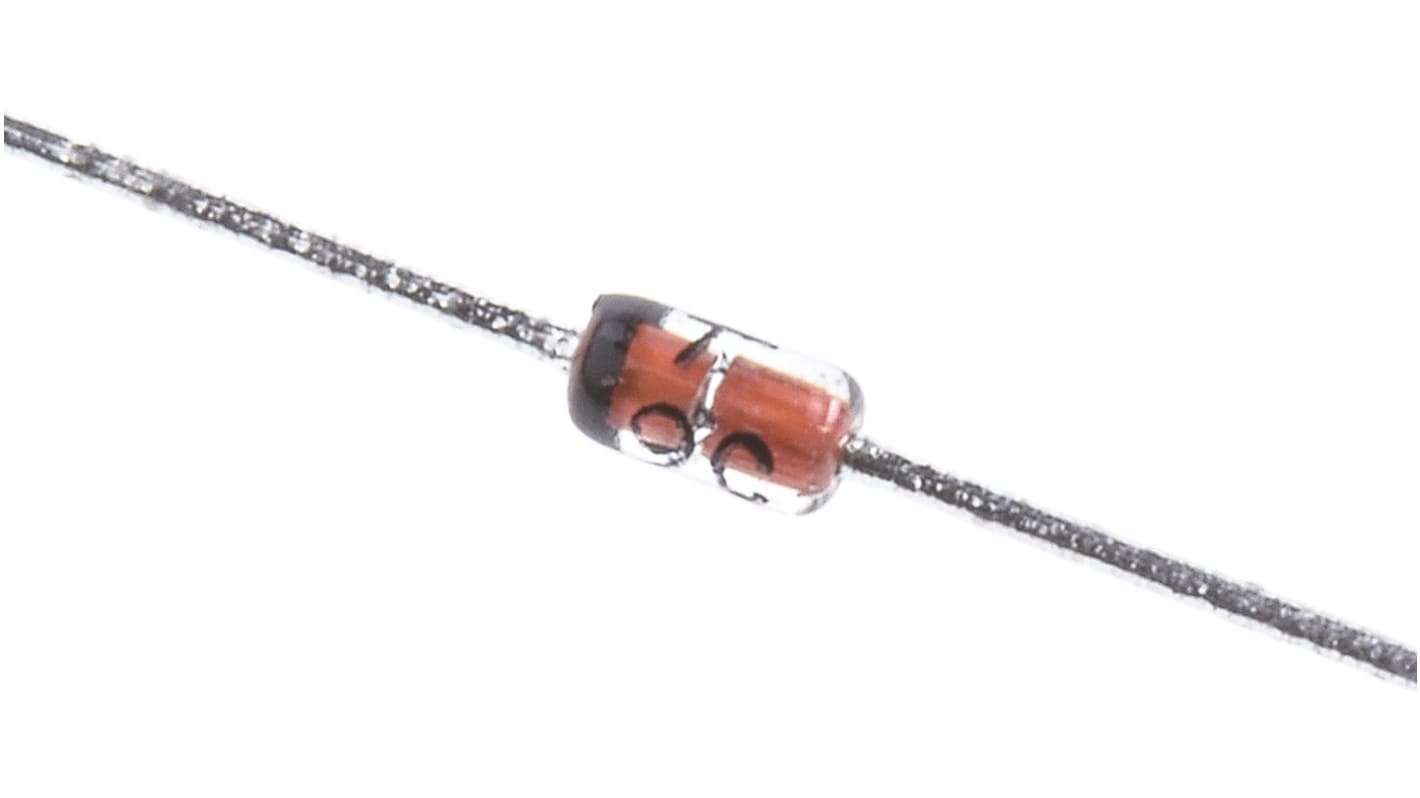

ON Semiconductor, 15V Zener Diode 5% 500 mW Through Hole 2-Pin DO-35

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Zener Diodes 500mW, BZX79C Series, Fairchild Semiconductor

Zener Diodes, Fairchild Semiconductor

Specifications
Attribute Value
Nominal Zener Voltage 15V
Diode Configuration Single
Mounting Type Through Hole
Number of Elements per Chip 1
Maximum Power Dissipation 500 mW
Package Type DO-35
Zener Type Voltage Regulator
Zener Voltage Tolerance 5%
Pin Count 2
Test Current 5mA
Maximum Zener Impedance 30Ω
Maximum Reverse Leakage Current 50nA
Length 4.56mm
Dimensions 1.91 (Dia.) x 4.56mm
Diameter 1.91mm
Minimum Operating Temperature -65 °C
Typical Voltage Temperature Coefficient 9.2 → 13mV/°C
Maximum Operating Temperature +200 °C
17000 In stock - FREE next working day delivery available
Price Each (In a Bag of 1000)
£ 0.018
(exc. VAT)
£ 0.022
(inc. VAT)
Units
Per unit
Per Bag*
1000 +
£0.018
£18.00
*price indicative
