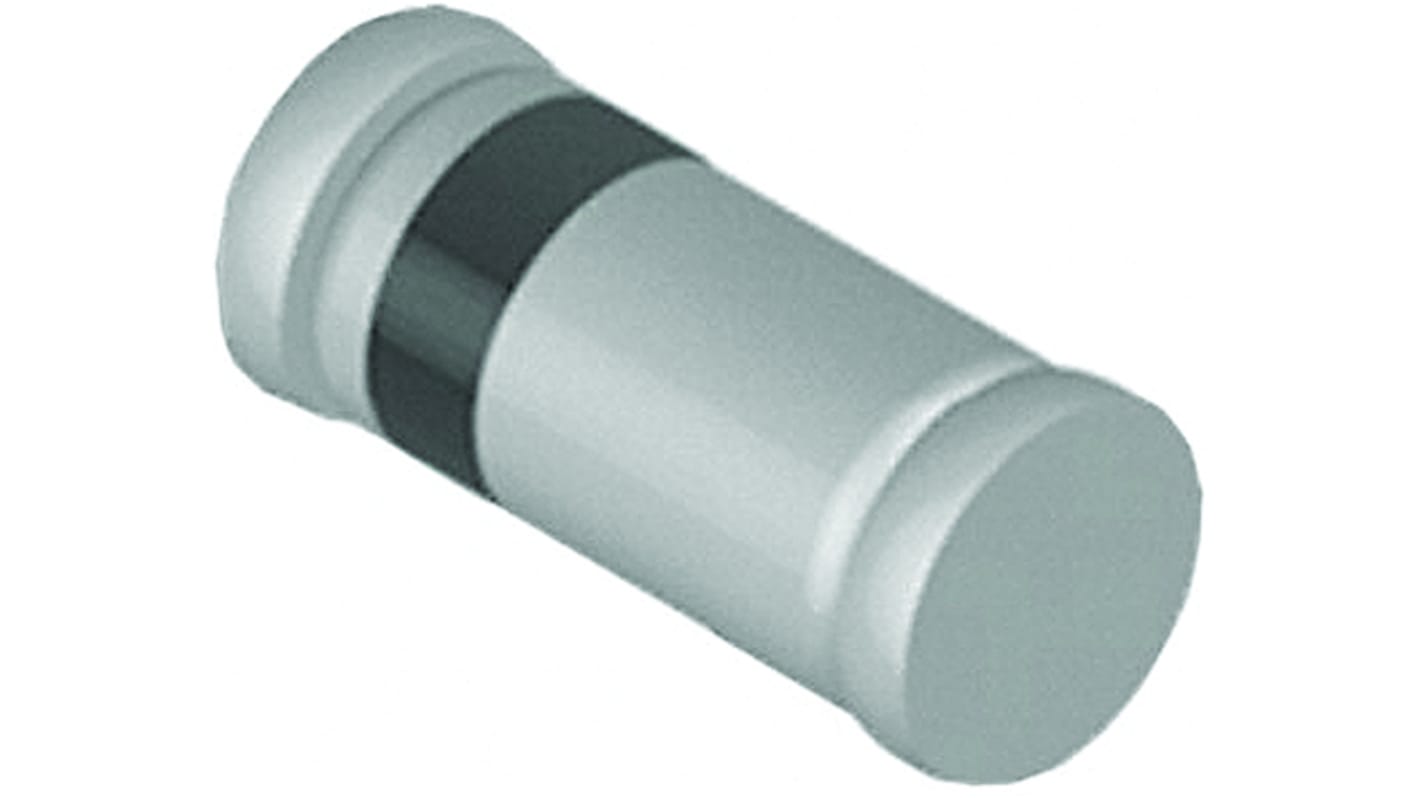

Vishay, 5.1V Zener Diode 5% 500 mW SMT 2-Pin SOD-80
- RS Stock No.:
- 145-2750
- Mfr. Part No.:
- TZS4689-GS08
- Brand:
- Vishay
Discontinued product
- RS Stock No.:
- 145-2750
- Mfr. Part No.:
- TZS4689-GS08
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Zener Diodes 500mW, TZS46xx to TZS47xx Series, Vishay Semiconductor
Small Signal Zener Diodes
Zener voltage specified at 50μA
Maximum delta VZ given from 10μA to 100μA
Very high stability
Low noise
AEC-Q101 qualified
Zener voltage specified at 50μA
Maximum delta VZ given from 10μA to 100μA
Very high stability
Low noise
AEC-Q101 qualified
Zener Diodes, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 5.1V |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 500 mW |
| Package Type | SOD-80 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 5% |
| Pin Count | 2 |
| Test Current | 0.05mA |
| Maximum Reverse Leakage Current | 10µA |
| Dimensions | 3.7 x 1.6 x 1.6mm |
| Maximum Operating Temperature | +175 °C |
