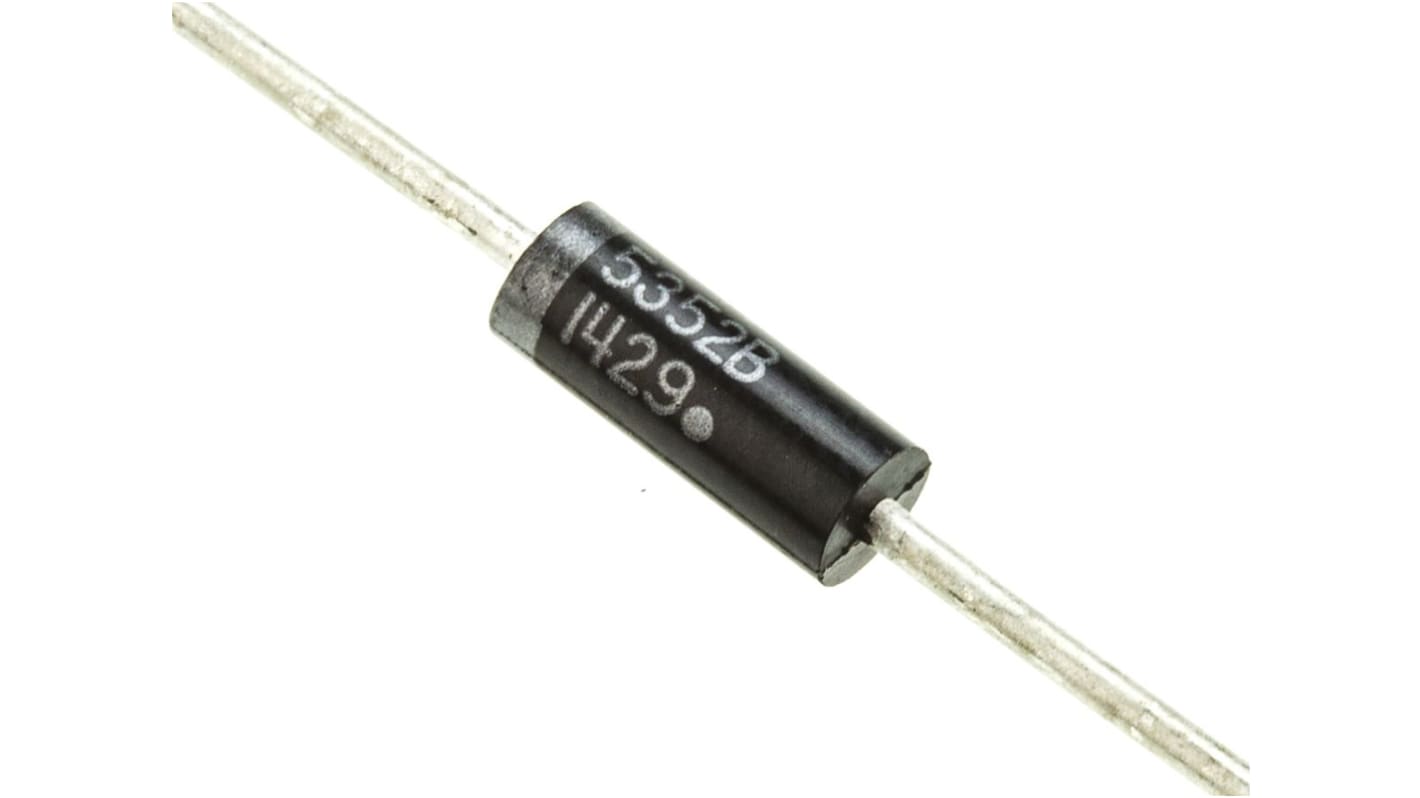

onsemi, 15V Zener Diode ±5% 5 W Through Hole 2-Pin 017AA-01
- RS Stock No.:
- 463-280
- Mfr. Part No.:
- 1N5352BG
- Brand:
- onsemi
570 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 10)
£0.234
(exc. VAT)
£0.281
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 90 | £0.234 | £2.34 |
| 100 - 990 | £0.13 | £1.30 |
| 1000 - 1990 | £0.11 | £1.10 |
| 2000 + | £0.108 | £1.08 |
| *price indicative | ||
- RS Stock No.:
- 463-280
- Mfr. Part No.:
- 1N5352BG
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
Product Details
Zener Diodes 5W Surmetic, 1N5347 to 1N5363 Series, ON Semiconductor
ON Semiconductor 1N53 series is Surmetic™ 40 axial-leaded 5 Watt zener diode This axial lead device features a molded package which is void-free transfer−molded, thermosetting plastic, offers protection in most common environmental conditions, The voltage regulator has tight limits and better operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. The external surfaces are corrosion resistant and leads are readily solderable
Applications
Industrial
Zener Diodes, ON Semiconductor
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 15V |
| Mounting Type | Through Hole |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 5 W |
| Package Type | 017AA-01 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | ±5% |
| Pin Count | 2 |
| Test Current | 75mA |
| Maximum Zener Impedance | 2.5Ω |
| Maximum Reverse Leakage Current | 1µA |
| Dimensions | 8.89 x 3.68 x 3.68mm |
| Maximum Operating Temperature | +200 °C |
| Minimum Operating Temperature | -65 °C |
- RS Stock No.:
- 463-280
- Mfr. Part No.:
- 1N5352BG
- Brand:
- onsemi
