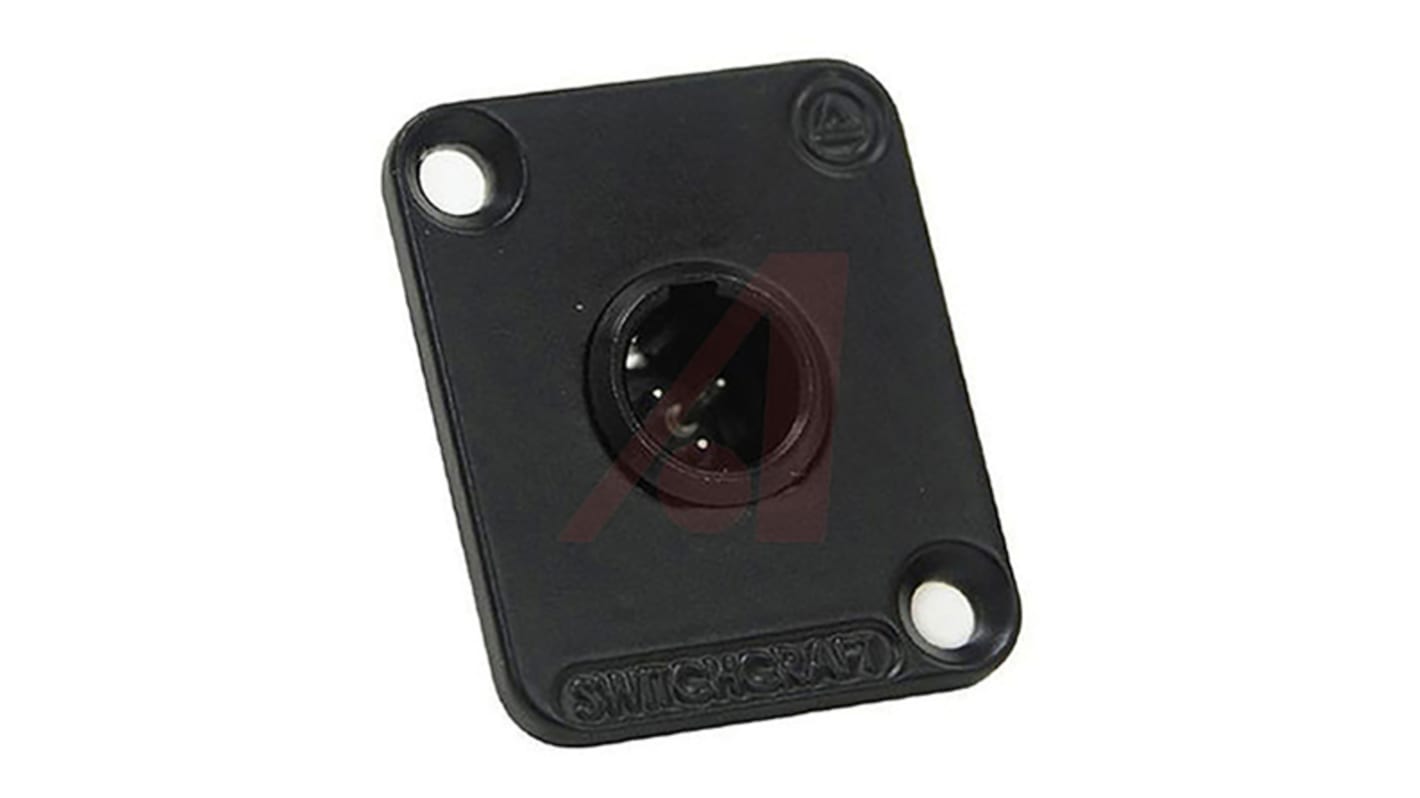

Switchcraft 3 Way Panel Mount XLR Connector, Male, Gold

  • RS Stock No. 878-5229
  • Mfr. Part No. EHT3MBAUPKG
  • Brand Switchcraft
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

EH TQG Series Chassis Mount XLR Connector

Premium range of high quality XLR connectors following the same specifications as the popular Switchcraft TQG Series. EH TQG series offers both Male & Female with the same cut-out adding further installation simplicity to ensure your application is covered

Robust metal construction
Offered in either a Black or Nickel finish to suit your application
Can be supplied in a variety of pin-out configurations ranging from 3 - 8 and can be either Gold or Silver plated
Designed to synergise with the QGPK Series of I/O panels and WP Series of Wall-Plates, making the EH TQG Series suitable for a comprehensive range of Communication & Professional Audio Applications

Specifications
Attribute Value
Number of Contacts 3
Gender Male
Mounting Type Panel Mount
Body Orientation Straight
Colour Black
Contact Plating Gold
Housing Material Copper Alloy, Zinc Alloy
Termination Method Solder
Contact Material Copper Alloy
Available to back order for despatch 28/10/2020
Price Each (In a Pack of 25)
£ 11.562
(exc. VAT)
£ 13.874
(inc. VAT)
Units
Per unit
Per Pack*
25 +
£11.562
£289.05
*price indicative
