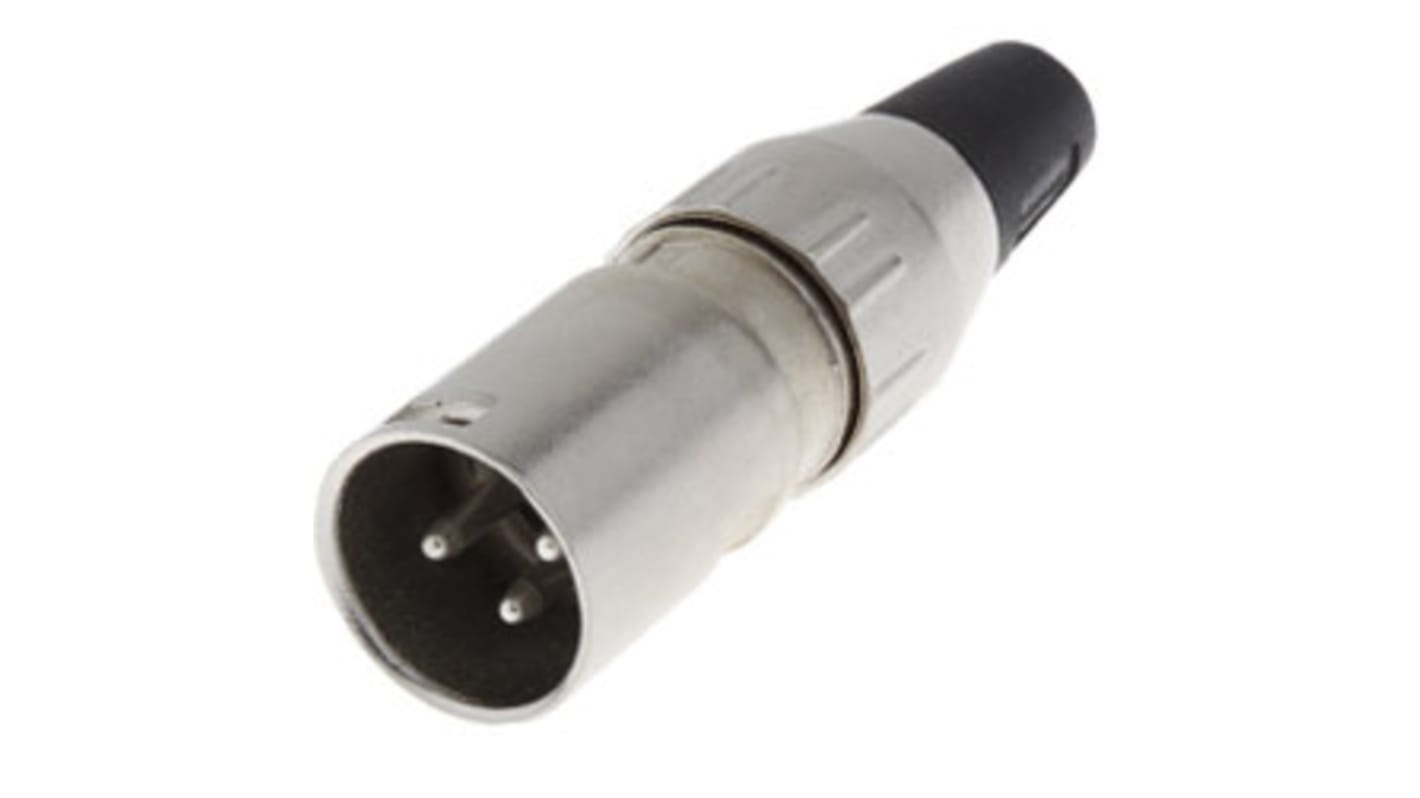

Deltron 3 Way Cable Mount XLR Connector, Male, Gold, 50 V ac

  • RS Stock No. 180-6763
  • Mfr. Part No. 705-0300
  • Brand Deltron
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

A range of audio & video connectors incorporating many innovative features.Assembly and disassembly is screw less and is achieved by a few quick turns of the back shell.

Available in satin nickel or matt black finish,with silver gold plated contacts.
The Strain relief collet ensures a positive cable grip.
Generous solder buckets enable easier cable assembly as well as catering for larger conductive sizes.
A range of coloured plastic coding rings,each with a single number moulded in,offer a quick and easy system of channel identification.

Specifications
Attribute Value
Number of Contacts 3
Gender Male
Mounting Type Cable Mount
Contact Plating Gold
Housing Material Zinc Alloy
Termination Method Crimp
Current Rating 15A
Voltage Rating 50 V ac
Contact Material Brass
Minimum Operating Temperature -25°C
Maximum Operating Temperature +70°C
48 In stock - FREE next working day delivery available
Price Each
£ 4.14
(exc. VAT)
£ 4.97
(inc. VAT)
Units
Per unit
1 +
£4.14
