Amphenol ICC Wire to Board Cable Assembly
- RS Stock No.:
- 249-3512
- Mfr. Part No.:
- 10156402-002LF
- Brand:
- Amphenol ICC
500 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 10)
£0.783
(exc. VAT)
£0.94
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 40 | £0.783 | £7.83 |
| 50 + | £0.694 | £6.94 |
| *price indicative | ||
- RS Stock No.:
- 249-3512
- Mfr. Part No.:
- 10156402-002LF
- Brand:
- Amphenol ICC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

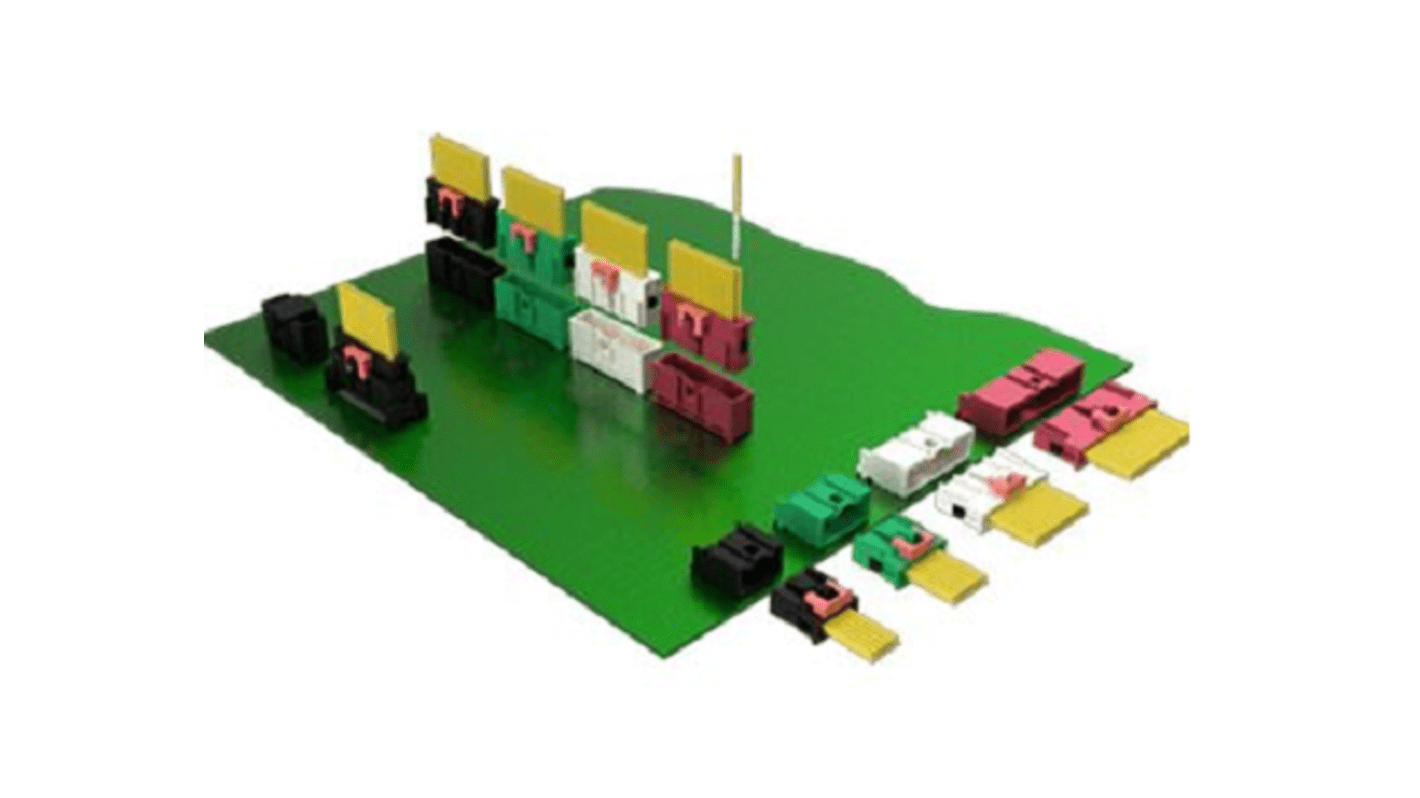

The Amphenol ICC WireLock Crimped lead with Tin plated Terminals is a 1.80 mm pitch wire-to-board connector system. It’s compact design addresses the growing need
for space saving automotive-grade connectors. It supports cable wire gauge from 22 AWG to 26 AWG. It is available in 10 to 40 positions in double row with vertical and horizontal TH and SMT configurations.
for space saving automotive-grade connectors. It supports cable wire gauge from 22 AWG to 26 AWG. It is available in 10 to 40 positions in double row with vertical and horizontal TH and SMT configurations.
Current rating is 3A with each contact Terminal-Position-Assurance (TPA) Four different coding with different colors
Connector positioning assurance (CPA)
Connector positioning assurance (CPA)
Specifications
Attribute | Value |
|---|---|
| Series | WireLock |
| Pitch | 1.8mm |
