Molex Wire Stripper, 0.03mm → 16.0mm

  • RS Stock No. 176-6892
  • Mfr. Part No. 63817-1100
  • Brand Molex
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

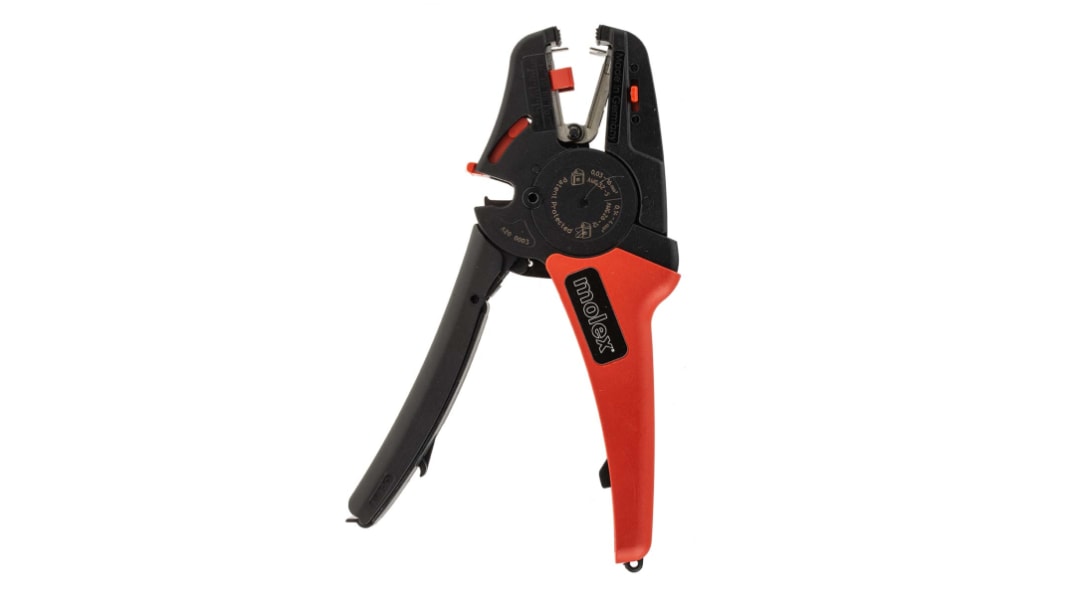

Molex 207122 Wire Stripper

The Molex wire stripper is a great tool for any Electrician, Mechanic and at-home DIY, providing the widest stripping capacity of any tool of its type in the industry.

It also reduces overall tooling investments, provides production flexibility and it has been designed with fine adjustability to ensure that thin insulations can be stripped without damage to conductors

A built-in wire cutter is also included with this item.

This tool is designed for conduit wire, flex power cable, equipment wire, and flat phone cable. The wire range is 16.00-0.03mm2 (6-32 AWG) in diameter and insulation thickness of 1.00mm (.040”) maximum.

Although the tool is self-adjusting, 90% of wires can be stripped without adjusting the tool.

Lightweight and ergonomically designed, this tool is qualified for high-volume production and portable field usage

Specifications
Attribute Value
Cable Type Conduit Wire, Equipment Wire, Flat Phone, Flex Power
Stripping Range 0.03 → 16 mm², 32 → 6AWG
Minimum Size 0.03mm
Maximum Size 16.0mm
Series 207122
7 In stock - FREE next working day delivery available
Price Each
£ 159.44
(exc. VAT)
£ 191.33
(inc. VAT)
Units
Per unit
1 - 4
£159.44
5 - 9
£154.65
10 +
£150.22
