- RS Stock No.:
- 903-3567
- Mfr. Part No.:
- 4320-01069-0
- Brand:
- Murata Power Solutions
176 In stock - FREE next working day delivery available
Added
Price Each
£1.06
(exc. VAT)
£1.27
(inc. VAT)
Units | Per unit |
1 - 4 | £1.06 |
5 - 9 | £1.04 |
10 - 24 | £1.01 |
25 + | £0.99 |
- RS Stock No.:
- 903-3567
- Mfr. Part No.:
- 4320-01069-0
- Brand:
- Murata Power Solutions
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Accessories for 12-Pin DMS Series Panel Meters
Accessories for all DMS Series 12-pin Panel Meters.

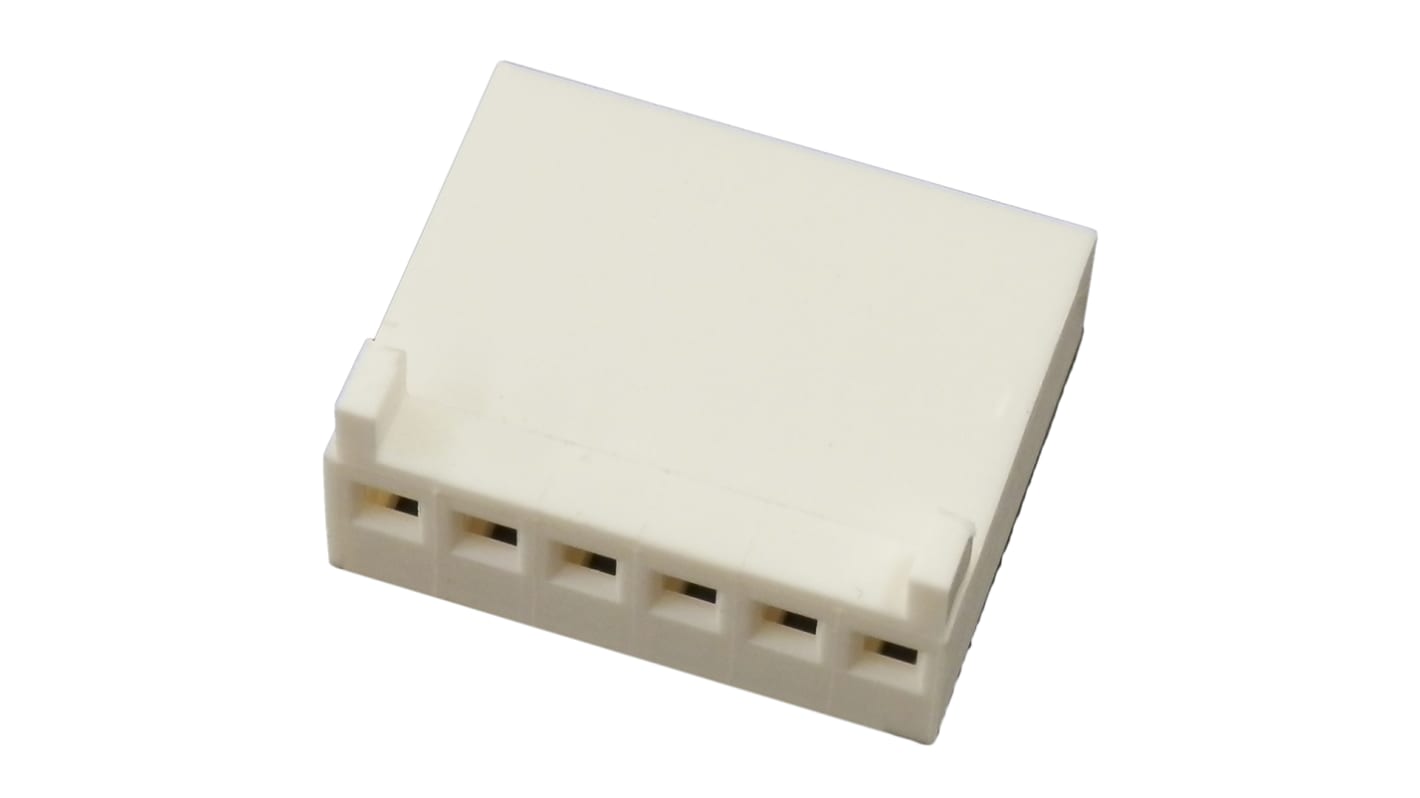

6-Position Connector Housing and Crimp Terminals
4320-01069-0 (903-3567) 6-position connector housings and 4400-01032-0 (903-3545) crimp terminals provide a secure method for making input/output connections to all panel mounted 12-pin DMS series meters.
These connectors are ideal for use in low-volume prototype applications. Two connector housings and 12
terminals are required for each meter.
6-Position SIP Socket
4320-01074-0 (903-3554) 6-position SIP sockets provide any easy and inexpensive, low profile solution for mounting on 12-pin DMS series panel meters on printed circuit boards. These sockets provide excellent mechanical retention force, and in many applications they can supply all the necessary mechanical force to hold the meters in position.
Murata Power Solutions Series
Specifications
Attribute | Value |
---|---|
Number of Contacts | 6 |
Number of Rows | 1 |
Gender | Female |
Mounting Type | Panel Mount |
Series | DMS |
For Use With | 12-Pin DMS Series |
Body Orientation | Straight |
Length | 15.7mm |
Width | 12.7mm |
Housing Material | Nylon |
- RS Stock No.:
- 903-3567
- Mfr. Part No.:
- 4320-01069-0
- Brand:
- Murata Power Solutions
