Molex C-Grid III Interconnection System Connector Housings
This range of Connector Housings feature a 2.54 mm pitch and form part of the C-Grid III interconnection system from Molex. This system offers post and receptacle interconnection, with design flexibility and modular components that provide a wide range of interconnection packaging alternatives within the electronic markets. Ideal for use with a wide range of commercial and consumer applications.
Features and Benefits
2.54 mm pitch
1 to 80 Circuits
Dual and single row housing
Black in colour
Wire to board configurations and fittings
Uniform locking system in place on all contacts
Interchangeable housing styles
1 to 80 Circuits
Dual and single row housing
Black in colour
Wire to board configurations and fittings
Uniform locking system in place on all contacts
Interchangeable housing styles

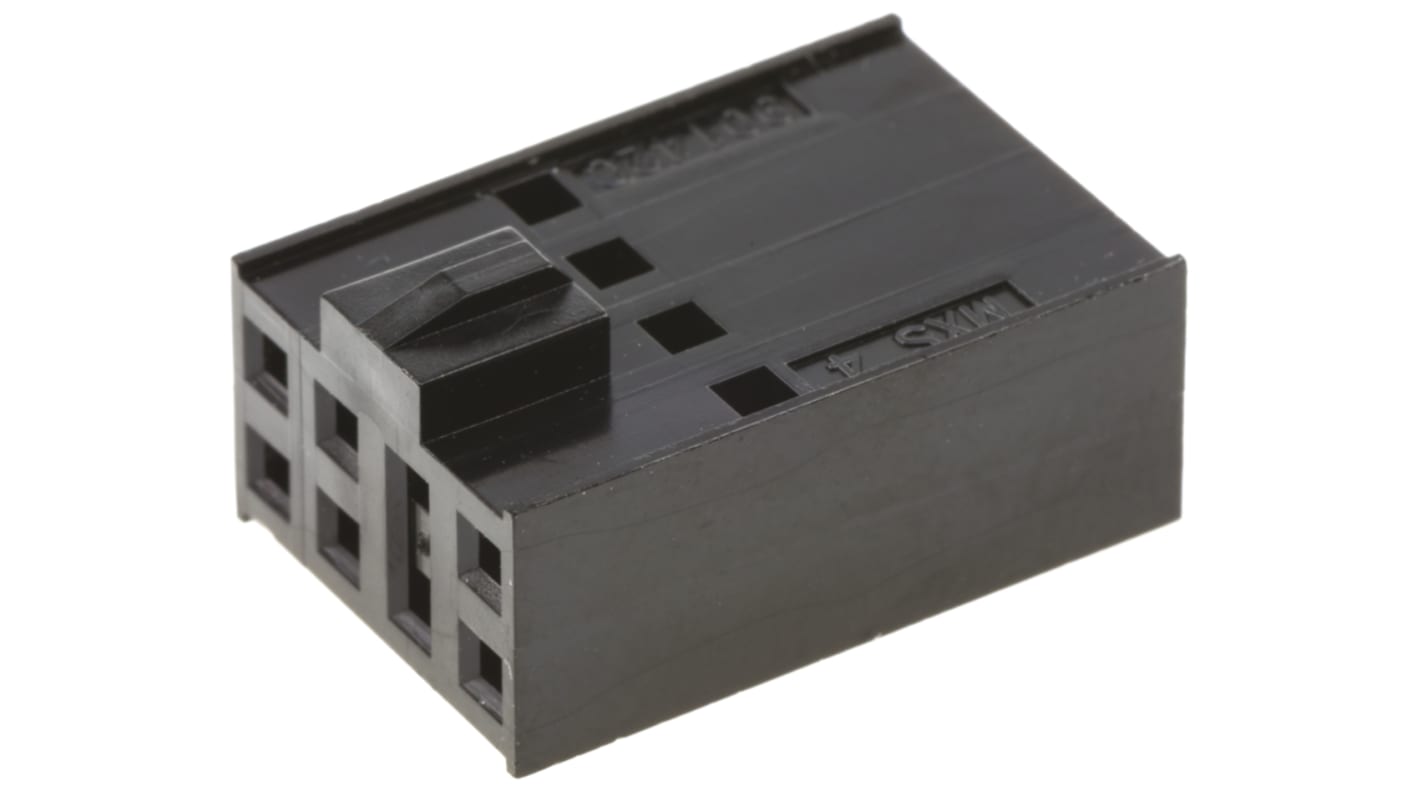

Molex Connector Housing, Female, 8 Way - C-Grid III Series - 90142-0008
Features & Benefits
Wide operating temperature range of -55°C to +105°C for use in extreme climates
3A maximum current per contact for energy efficiency and low heat dissipation
Can be joined to connectors using a simple hand crimping tool, saving time and effort
3A maximum current per contact for energy efficiency and low heat dissipation
Can be joined to connectors using a simple hand crimping tool, saving time and effort
Applications
Personal computers
Consumer electronics
Security systems
Consumer electronics
Security systems
Is this connector flame-retardant?
Yes, this connector stops burning in 10 seconds or less in the event of a fire, making it useful in volatile settings.
Standards
DIN 41651; HE13/14
2.54mm Molex C-Grid III Range
Specifications
Attribute | Value |
---|---|
Number of Contacts | 8 |
Number of Rows | 2 |
Pitch | 2.54mm |
Gender | Female |
Series | C-Grid III |
For Use With | C-Grid III Connector |
Body Orientation | Straight |
Length | 10.16mm |
Width | 7.72mm |
Housing Material | PPO |
