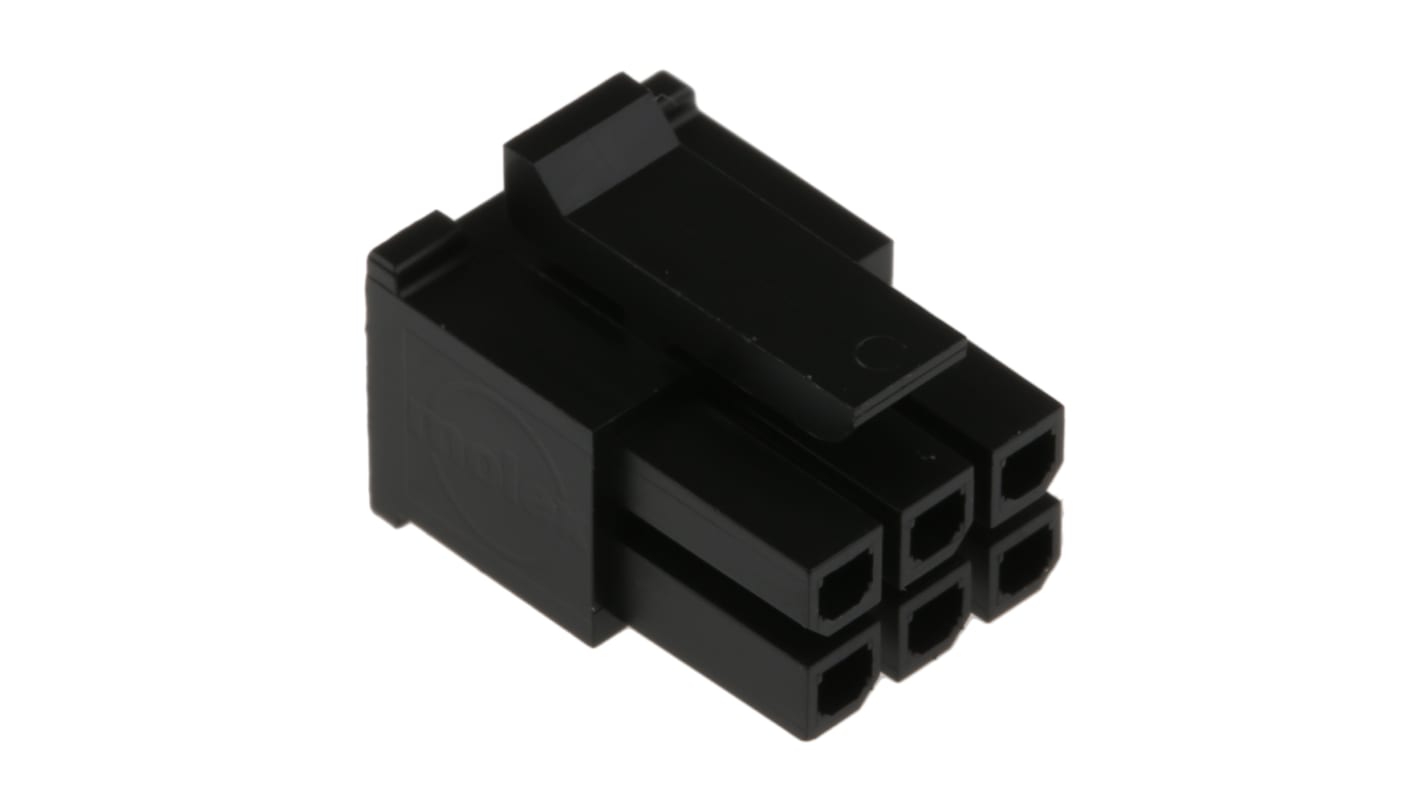

Molex, Micro-Fit 3.0 Female Connector Housing, 3mm Pitch, 6 Way, 2 Row

  • RS Stock No. 233-2769
  • Mfr. Part No. 43025-0600
  • Brand Molex
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Molex Micro-Fit Connector Housings – Series 43025 & 43020

The 4305 and 43020 series from Molex features 3.0 mm pitch connector housings, they form part of the unique, compact Micro- Fit connector system. A typical application for a connector housing is to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connector and connection it is housing.

Features and Benefits

• Housings are black in colour
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board

Molex Micro-Fit 3.0 Series

Specifications
Attribute Value
Number of Contacts 6
Number of Rows 2
Pitch 3mm
Gender Female
Mounting Type Cable Mount
Series Micro-Fit 3.0
For Use With Micro-Fit 3.0 Receptacle
Body Orientation Straight
Length 9.85mm
Width 11.56mm
Housing Material PET
18265 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£ 0.35
(exc. VAT)
£ 0.42
(inc. VAT)
Units
Per unit
Per Pack*
5 - 120
£0.35
£1.75
125 - 495
£0.24
£1.20
500 - 2495
£0.22
£1.10
2500 - 4995
£0.17
£0.85
5000 +
£0.16
£0.80
*price indicative
