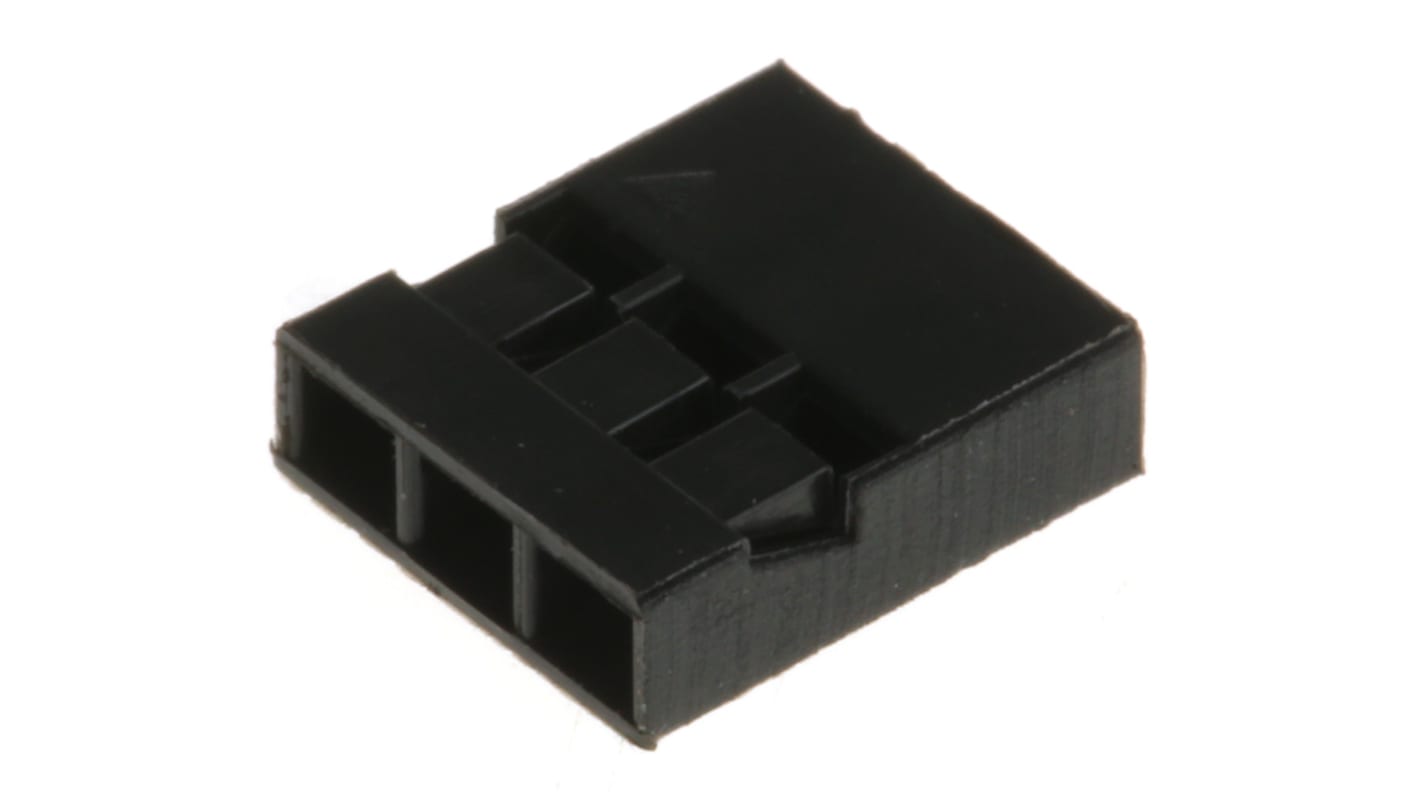

HARWIN, M22-30 Female Connector Housing, 2mm Pitch, 3 Way, 1 Row

  • RS Stock No. 173-0886
  • Mfr. Part No. M22-3010300
  • Brand HARWIN
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Socket Housings

Single and double row crimp socket shells which mate with 2mm pitch headers.

M22-301 Series SIL housings mate with M22-201/203 Series headers typical stock nos. 681-3287 and 681-3316 respectively
M22-302 Series DIL housings mate with M22-202/204 Series headers typical stock nos. 681-3297 and 681-3326 respectively
Shells accept crimp terminals stock nos. 547-3245 (tin plate) or 547-3289 (gold plate)

Specifications
Attribute Value
Number of Contacts 3
Number of Rows 1
Pitch 2mm
Gender Female
Mounting Type Cable Mount
Series M22-30
For Use With M22 Series Connector
Body Orientation Straight
Length 6mm
Width 2mm
Housing Material Nylon
Available to back order for despatch 23/10/2020
Price Each (In a Bag of 1000)
£ 0.144
(exc. VAT)
£ 0.173
(inc. VAT)
Units
Per unit
Per Bag*
1000 +
£0.144
£144.00
*price indicative
