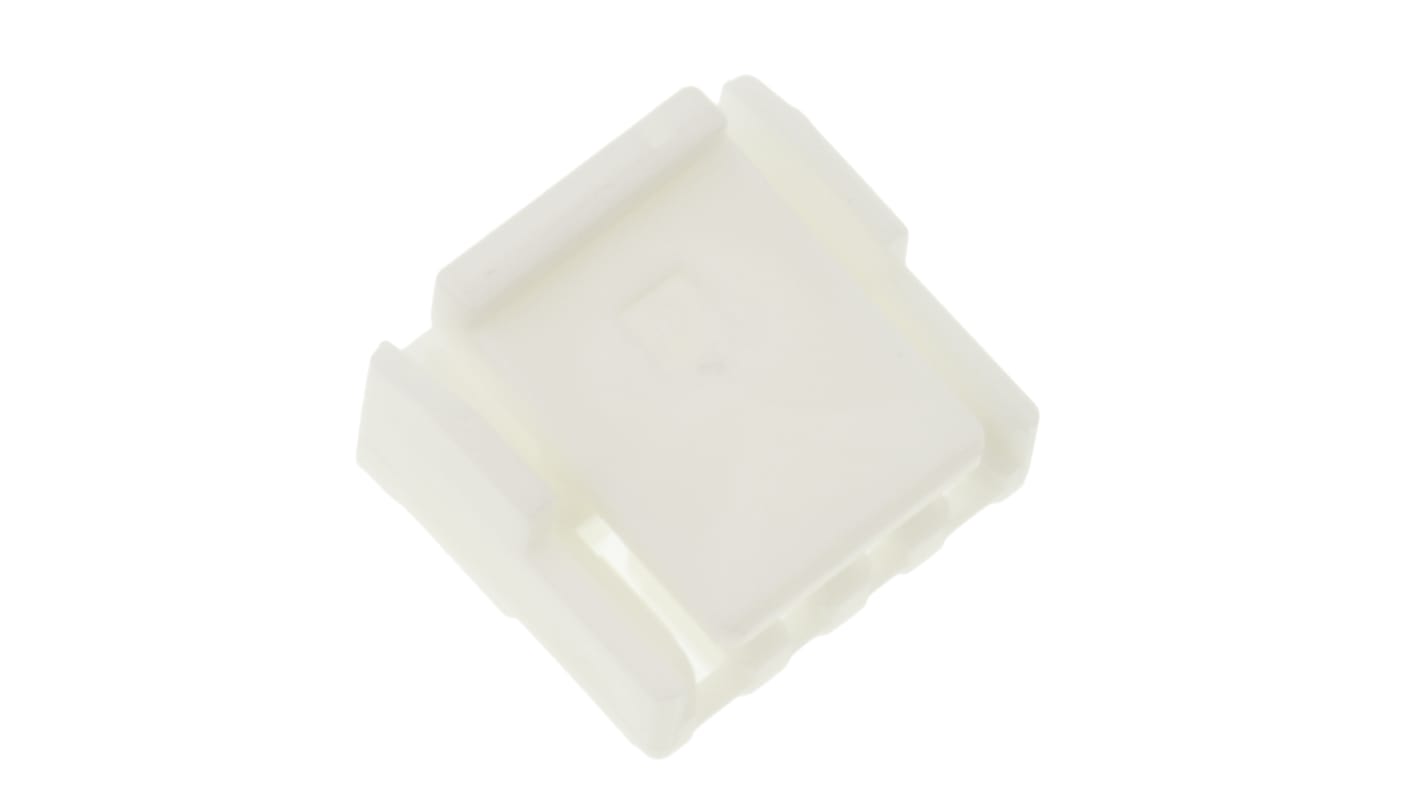

JST, GH Connector Housing, 1.25mm Pitch, 4 Way, 1 Row Right Angle, Straight
- RS Stock No.:
- 172-4854
- Mfr. Part No.:
- GHR-04V-S
- Brand:
- JST
15000 In stock - FREE next working day delivery available
Added
Price Each (In a Bag of 3000)
£0.043
(exc. VAT)
£0.052
(inc. VAT)
| Units | Per unit | Per Bag* |
| 3000 + | £0.043 | £129.00 |
| *price indicative | ||
- RS Stock No.:
- 172-4854
- Mfr. Part No.:
- GHR-04V-S
- Brand:
- JST
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
GH Series Wire to Board Housings
The GH Series from JST are a range of connectors that have been developed with a low insertion force which makes them suitable for PDP, LCD or any small electronics equipment. The design incorporates a secure locking structure for the connector parts including the contacts.
Features and Benefits
• 1.25 mm pitch
• Secure locking of housing and contacts
• Easier mating due to low insertion
• Prevention of contact deformation during crimping
• Low insertion force with clear click sounds
• Secure locking of housing and contacts
• Easier mating due to low insertion
• Prevention of contact deformation during crimping
• Low insertion force with clear click sounds
1.25mm Wire to Board - JST GH Series
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 4 |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Mounting Type | Cable Mount |
| Series | GH |
| For Use With | Board-In Connector, Crimp Connector |
| Body Orientation | Right Angle, Straight |
| Length | 6.25mm |
| Width | 4.15mm |
| Housing Material | PBT |
