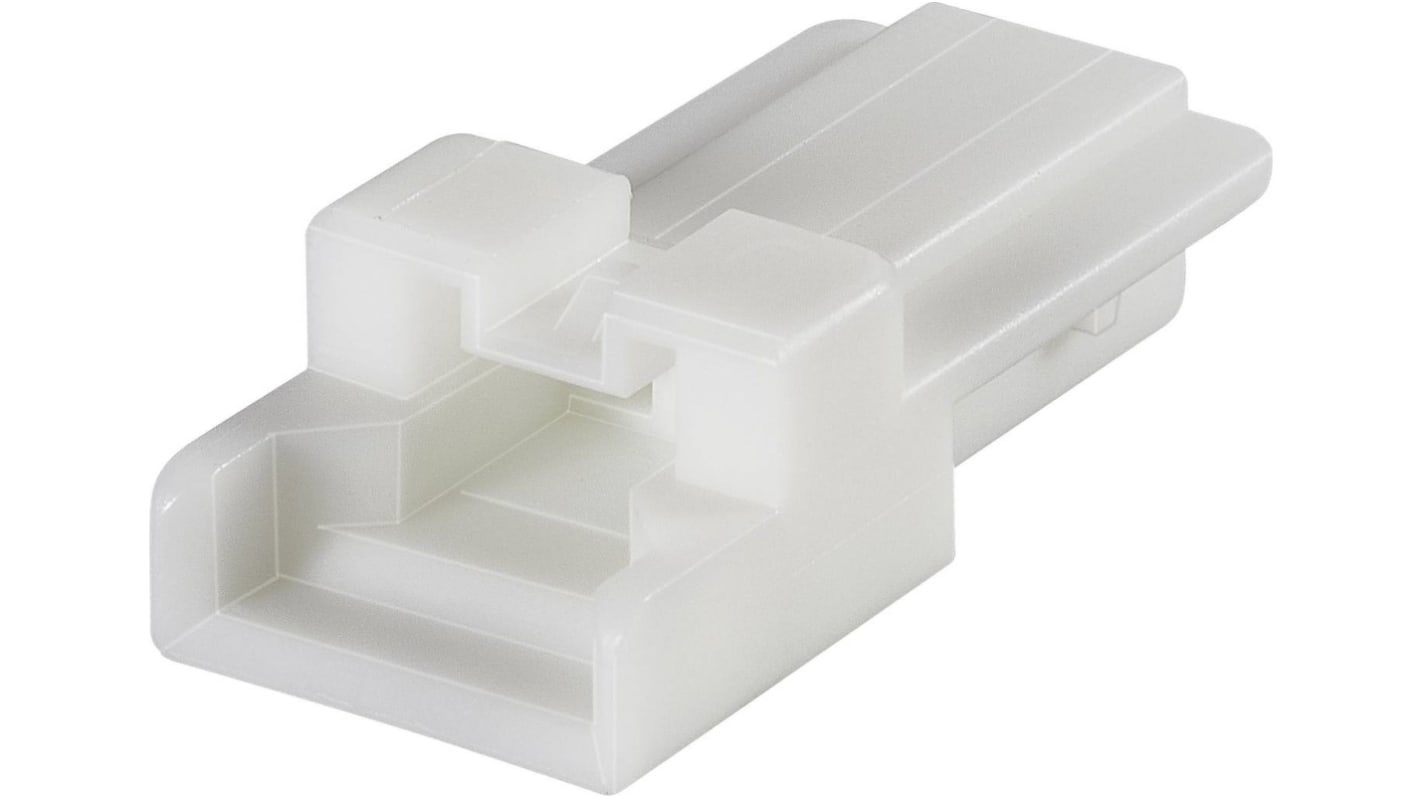

JST, PA Female Crimp Connector Housing, 2mm Pitch, 3 Way, 1 Row

  • RS Stock No. 163-0384
  • Mfr. Part No. PALR-03VF
  • Brand JST
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Applicable to both crimp and insulation displacement style receptacles.

Secure locking device prevents accidental disconnection.
Secondary retainers provide added protection against incomplete insertion or disconnection.
Panel locking type is also available.

Specifications
Attribute Value
Number of Contacts 3
Number of Rows 1
Pitch 2mm
Gender Female
Mounting Type Cable Mount
Series PA
For Use With PAL Connectors
Body Orientation Straight
Length 11.4mm
Width 6.3mm
Housing Material Nylon
900 In stock - FREE next working day delivery available
Price Each (In a Bag of 50)
£ 0.132
(exc. VAT)
£ 0.158
(inc. VAT)
Units
Per unit
Per Bag*
50 - 450
£0.132
£6.60
500 - 2450
£0.123
£6.15
2500 - 4950
£0.115
£5.75
5000 - 12450
£0.109
£5.45
12500 +
£0.105
£5.25
*price indicative
