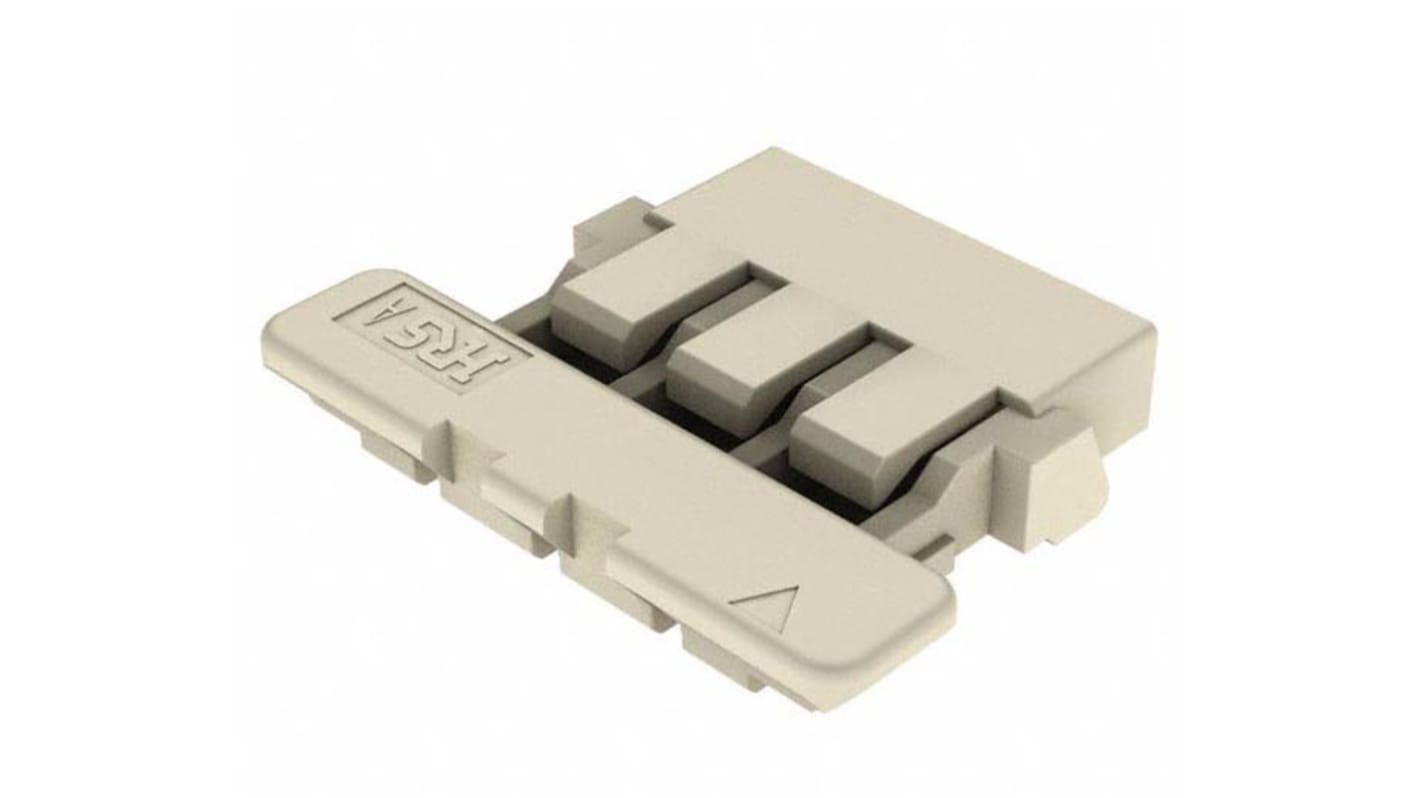

Hirose, DF58 Female Connector Housing, 1.2mm Pitch, 3 Way, 1 Row

  • RS Stock No. 144-1817
  • Mfr. Part No. DF58-3S-1.2C
  • Brand Hirose
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Small-Sized, Low Profile 1.0mm Height, Wire-to-Board Connectors for Power Supply

Small-sized, low profile connectorLeveling of the vertical mating cable
Proprietary ViSe Lock design
High current capability up the maximum of 3.0A (2pos. : When 28AWG is used)
Highly reliable contact design
Halogen-free

Specifications
Attribute Value
Number of Contacts 3
Number of Rows 1
Pitch 1.2mm
Gender Female
Mounting Type Surface Mount
Series DF58
For Use With Power Supply
Body Orientation Straight
Length 4.47mm
Width 5.8mm
Housing Material Liquid Crystal Polymer
1000 In stock - FREE next working day delivery available
Price Each (In a Pack of 1000)
£ 0.066
(exc. VAT)
£ 0.079
(inc. VAT)
Units
Per unit
Per Pack*
1000 +
£0.066
£66.00
*price indicative
