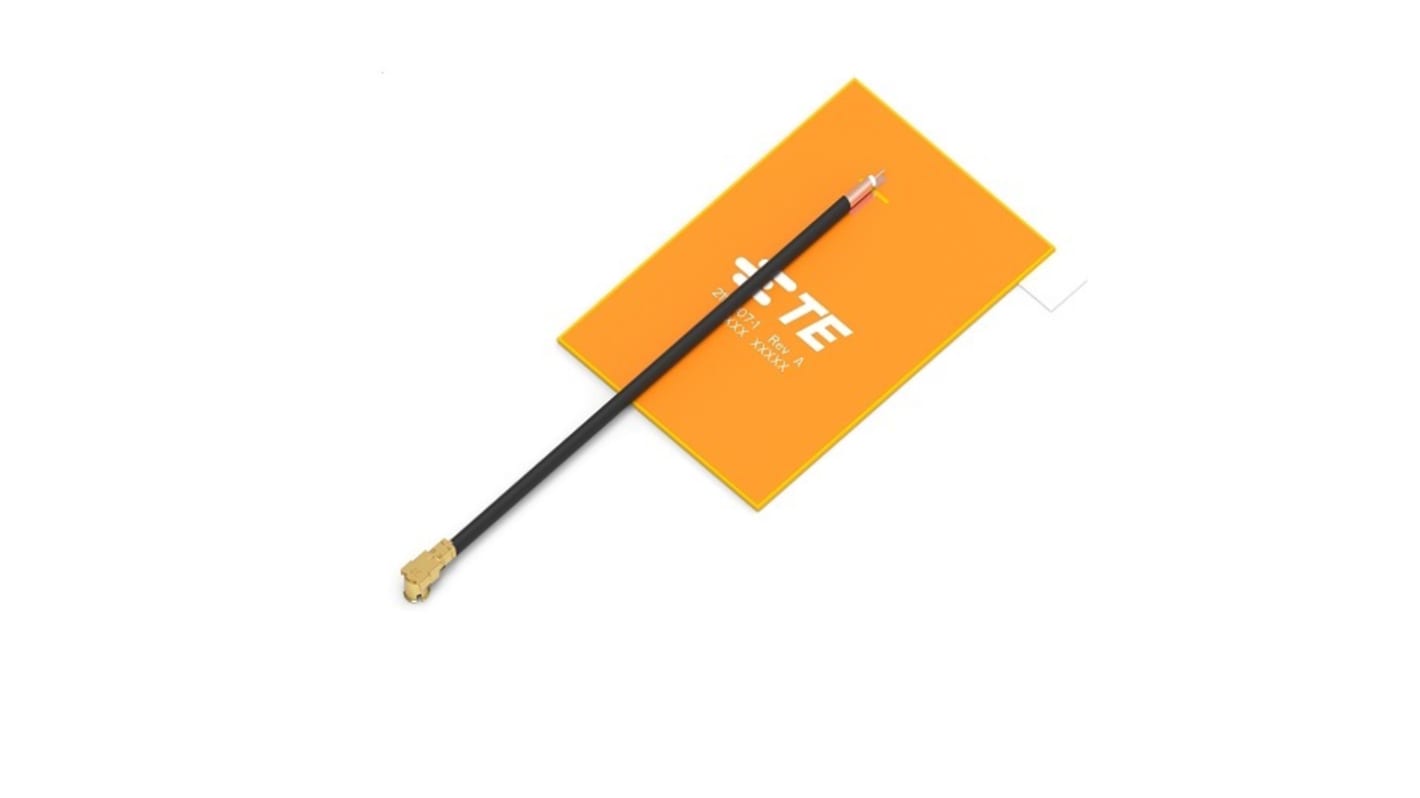

TE Connectivity 2118907-9 PCB WiFi Antenna, Bluetooth (BLE), WiFi, ZigBee
- RS Stock No.:
- 237-8081
- Mfr. Part No.:
- 2118907-9
- Brand:
- TE Connectivity
2995 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£1.574
(exc. VAT)
£1.889
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 5 | £1.574 | £7.87 |
| 10 - 20 | £1.464 | £7.32 |
| 25 - 45 | £1.386 | £6.93 |
| 50 - 95 | £1.352 | £6.76 |
| 100 + | £1.318 | £6.59 |
| *price indicative | ||
- RS Stock No.:
- 237-8081
- Mfr. Part No.:
- 2118907-9
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The TE Connectivity 2118907-9 is an triple band embedded antenna, it has 2400MHz to 7125MHz frequency range, 50Ω impedance rating. These antennas offer adhesive backing that simplifies mounting within the device for a PCB. WLAN Antennas feature a ground-plane independent design. TE Small Form-Factor WLAN Antennas provide reliable performance to address applications where miniaturization is needed.
Wi-Fi 6, also including Wi-Fi 6E new 6GHz band, Bluetooth, ZigBee
Global Frequency coverage
Adhesive backing on the PCB simplifies mounting within the device
Different cable length and connector options available
Flexible PCB antenna assembly
Global Frequency coverage
Adhesive backing on the PCB simplifies mounting within the device
Different cable length and connector options available
Flexible PCB antenna assembly
Specifications
Attribute | Value |
|---|---|
| RF Protocols | Bluetooth (BLE), WiFi, ZigBee |
| Internal/External | Internal |
| Frequency Range | 2.4 GHz, 5 GHz, 6 GHz |
| Antenna Physical Form | PCB |
| Antenna Mounting Type | Adhesive |
| Gain | 3.7dBi |
| Connector Gender | Male |
| Cable Length | 200mm |
| Antenna Directivity | Omnidirectional |
