- RS Stock No.:
- 203-5118
- Mfr. Part No.:
- 214415-1011
- Brand:
- Molex
- RS Stock No.:
- 203-5118
- Mfr. Part No.:
- 214415-1011
- Brand:
- Molex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

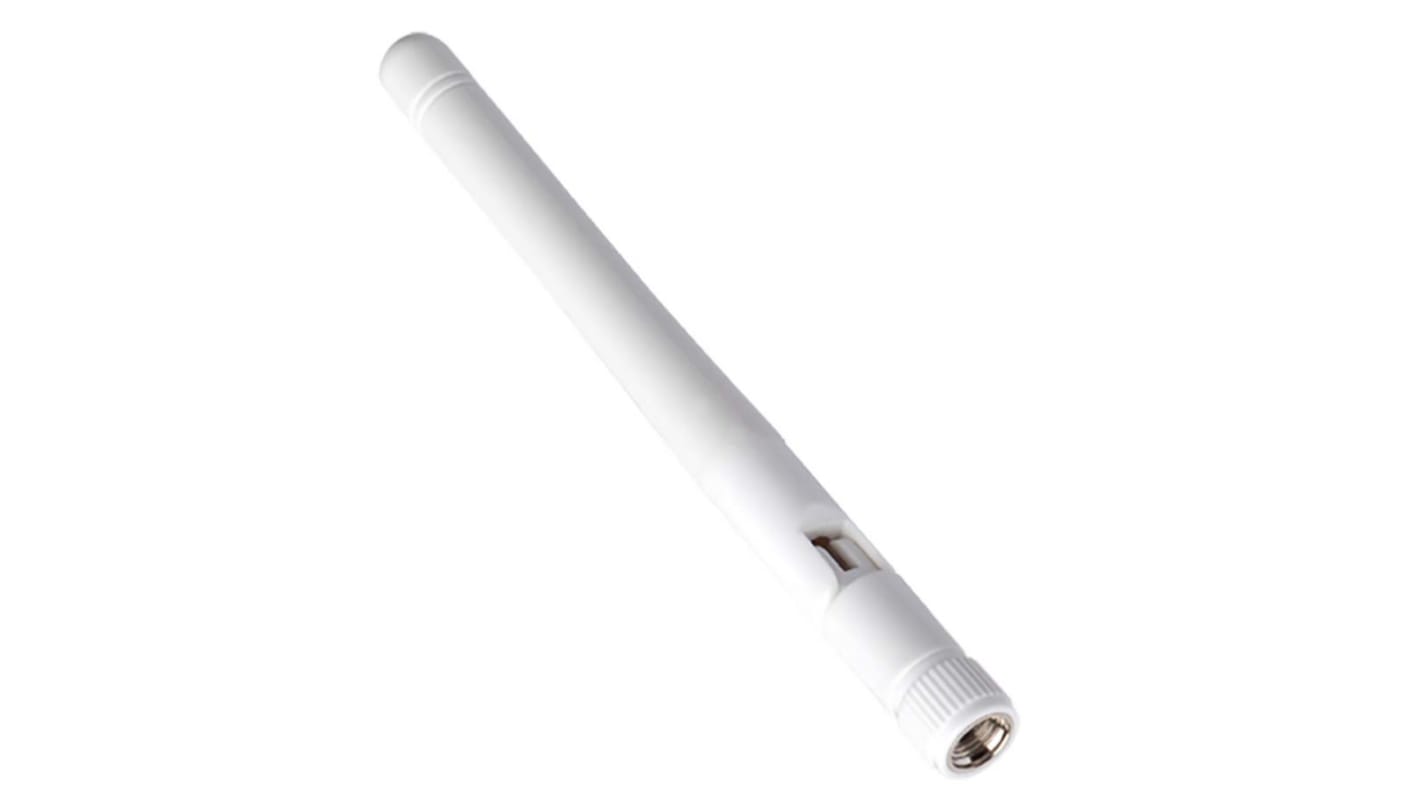

The Molex Electronics Wi-Fi or Bluetooth external antennas offers high RF performance and reliability for wireless and networking applications. It works with an operating temperature ranges from -40 to +85°C. It has a Hinge joint which allows 90º rotation on the vertical plane and SMA-J connector which allows 180º rotation on the horizontal plane.
PET bag packaging
50ohms Impedance
2.4GHz operating frequency
IP65 rated design
Two SMA straight cable plugs
50ohms Impedance
2.4GHz operating frequency
IP65 rated design
Two SMA straight cable plugs
Specifications
Attribute | Value |
---|---|
Internal/External | External |
RF Protocols | Bluetooth (BLE), WiFi |
Frequency Range | 2.4 GHz |
Antenna Physical Form | Whip |
Connector Type | SMA |
Antenna Mounting Type | Through Hole/Bolted |
Mounting Type | Direct |
Gain | 5.3dBi |
Antenna Directivity | Omnidirectional |
Connector Gender | Male |
Weight | 7.715g |
Width | 9.35mm |
Series | 214415 |
