SIP Welder 140A
- RS Stock No.:
- 918-5090
- Mfr. Part No.:
- 5741
- Brand:
- SIP
Discontinued product
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS Stock No.:
- 918-5090
- Mfr. Part No.:
- 5741
- Brand:
- SIP
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

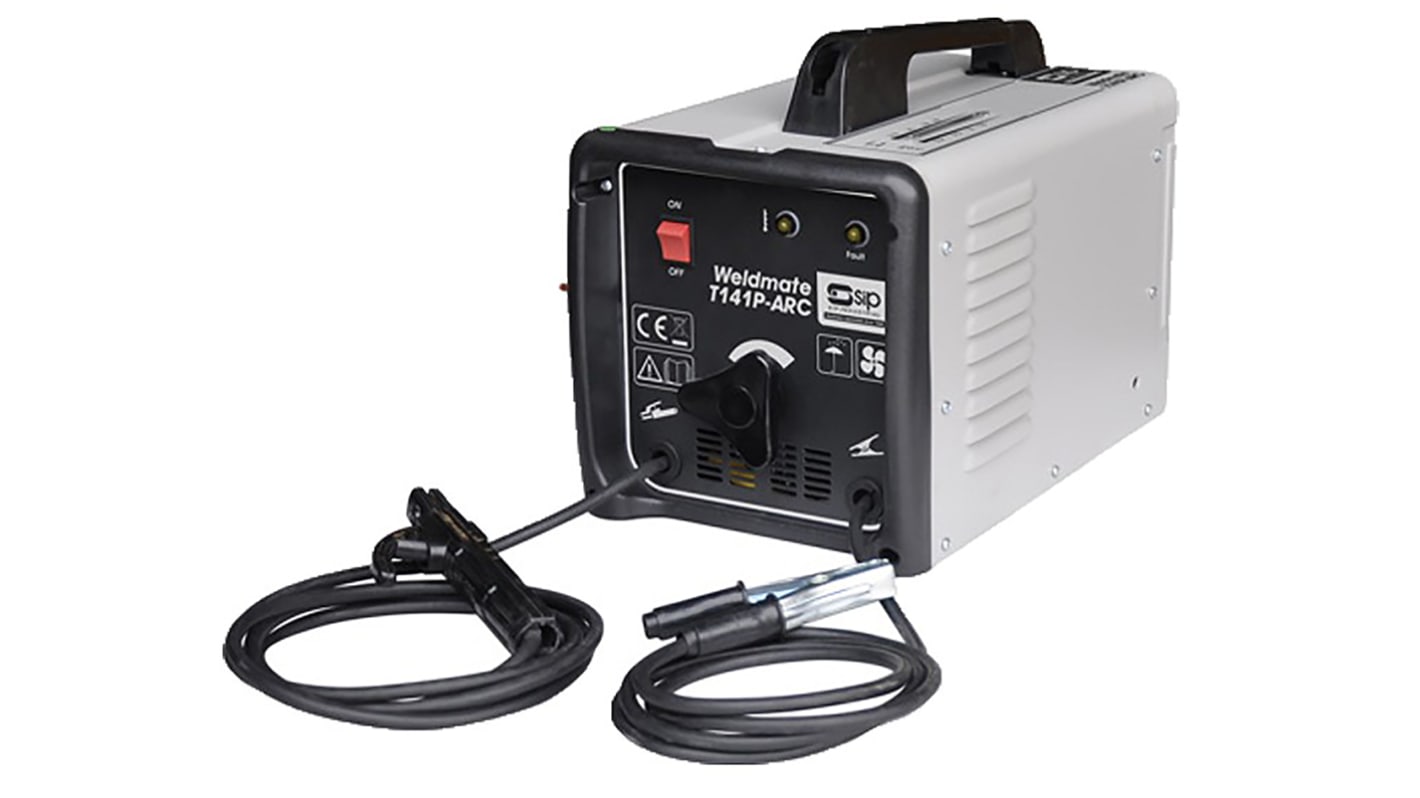

Weldmate T141P Arc Welder
The Weldmate T141P Arc high quality welder offers you fantastic versatility with an infinitely step-less output and electrode power to gauge enabling the rapid setting of the output current. This amazing welder includes a 140 A peak current range and a 1.5 to 5 mm mild steel weld thickness. The weldmate uses a domestic electricity supply 230 V and requires 1.6mm to 3.2 mm electrodes.
FEATURES and BENFITS:
Infinitely variable step-less output
Rapid setting of the output current
40 to 140 A peak current range
1.5 to 5 mm weld thickness
Welding current 40 to 115 A
1.6 to 3.2 mm Electrode size
Voltage supply 230 V
Peak current 140 A
Insulation class F
Protection IP 21S
DIMENSIONS:
Height packaged 335 mm
Width packaged 295 mm
Length packaged 515 mm
Net Weight 15.5 kg
Gross weight 16.5 kg
Infinitely variable step-less output
Rapid setting of the output current
40 to 140 A peak current range
1.5 to 5 mm weld thickness
Welding current 40 to 115 A
1.6 to 3.2 mm Electrode size
Voltage supply 230 V
Peak current 140 A
Insulation class F
Protection IP 21S
DIMENSIONS:
Height packaged 335 mm
Width packaged 295 mm
Length packaged 515 mm
Net Weight 15.5 kg
Gross weight 16.5 kg
Standards
Protection IP 21S
Insulation Class F
Insulation Class F
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 230V |
| Welder Type | Arc Welder |
| Output Current | 140A |
| Maximum Electrode Size | 3.2mm |
| Weight | 15.5kg |
| Minimum Electrode Size | 1.6mm |
| Model Number | T141P |
| Plug Type | Type G - British |
