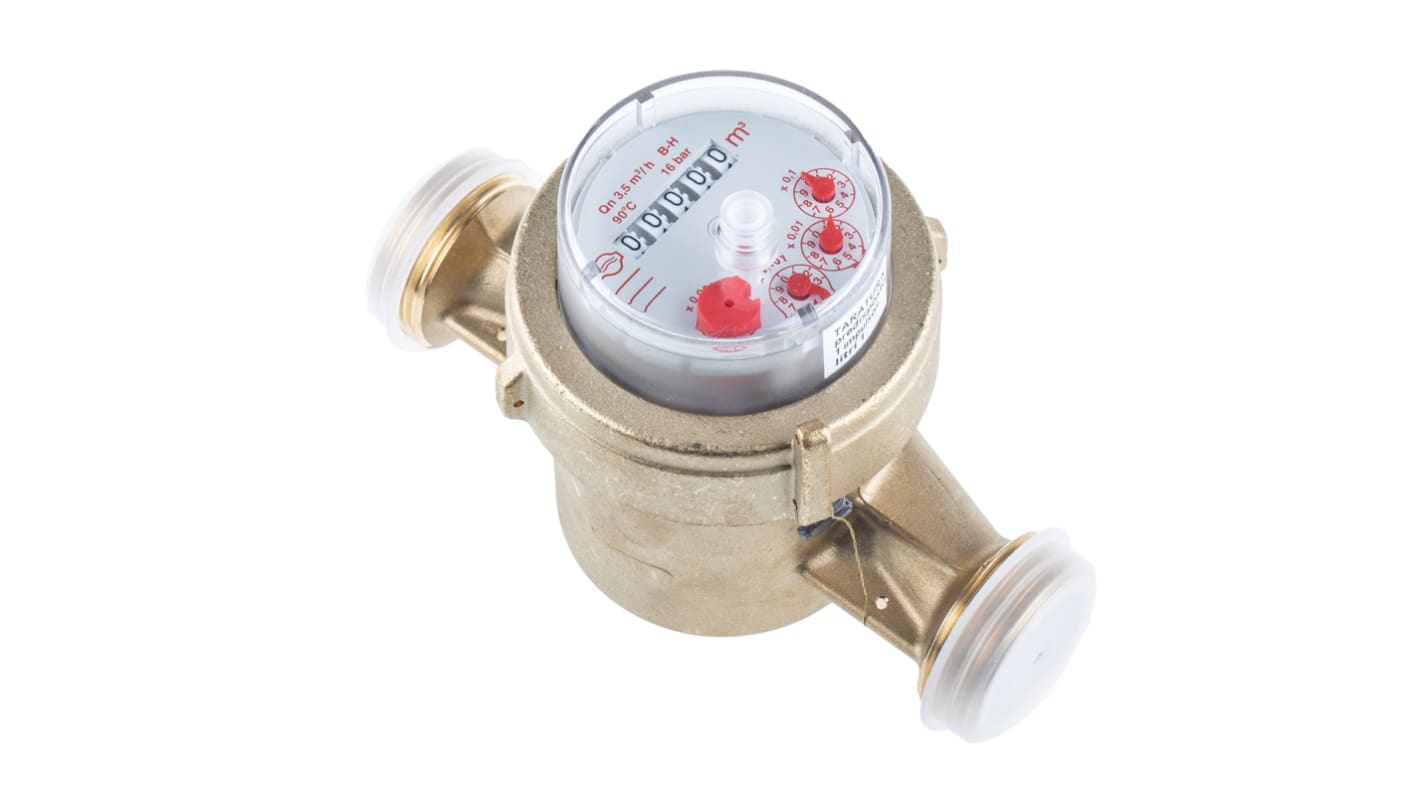

Altecnic Class A, B 7m³/h Water Meter 1 in BSPP Male

  • RS Stock No. 399-5046
  • Mfr. Part No. GG-DALC25P1
  • Brand Altecnic
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): IT
Product Details

Pulsed Output Single Jet Turbine Water Meters

Brass body
Conforms to ISO 4064 and EC75/33 Class A/B
Equipped with impulse emitting device for remote reading
Dry dial counter
Suitable for installation in any orientation
Supplied with 200cm cable, nuts, tails and washers
Connections in BSPPM
Output per pulse 1 litre per 1 pulse
Power rating current 0.2A
Power rating Voltage 30 V
Temperature rating water (maximum) 90°C
Maximum operating pressure 16 bar
Maximum reading 100m3
Minimum reading 0.000m3
Instruction leaflet included

Note

The impulse emitting device is in the form of a single normally open reed switch which closes momentarily once per litre of water flow. Connections are via a two core cable coloured brown and white connected internally to the water reed switch

Standards

ISO 4064; EC75/33 Class A/B

Specifications
Attribute Value
Class A, B
Nominal Flow Rate 7m³/h
Maximum Reading 9999.9m³
Connection 1 in BSPP Male
Connection Gender Male
Thread Size 1in
Thread Standard BSPP
22 In stock for FREE next working day delivery
Price Each
£ 144.83
(exc. VAT)
£ 173.80
(inc. VAT)
Units
Per unit
1 - 4
£144.83
5 +
£140.40
