- RS Stock No.:
- 784-6106
- Mfr. Part No.:
- 1522010
- Brand:
- Rittal
- RS Stock No.:
- 784-6106
- Mfr. Part No.:
- 1522010
- Brand:
- Rittal
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

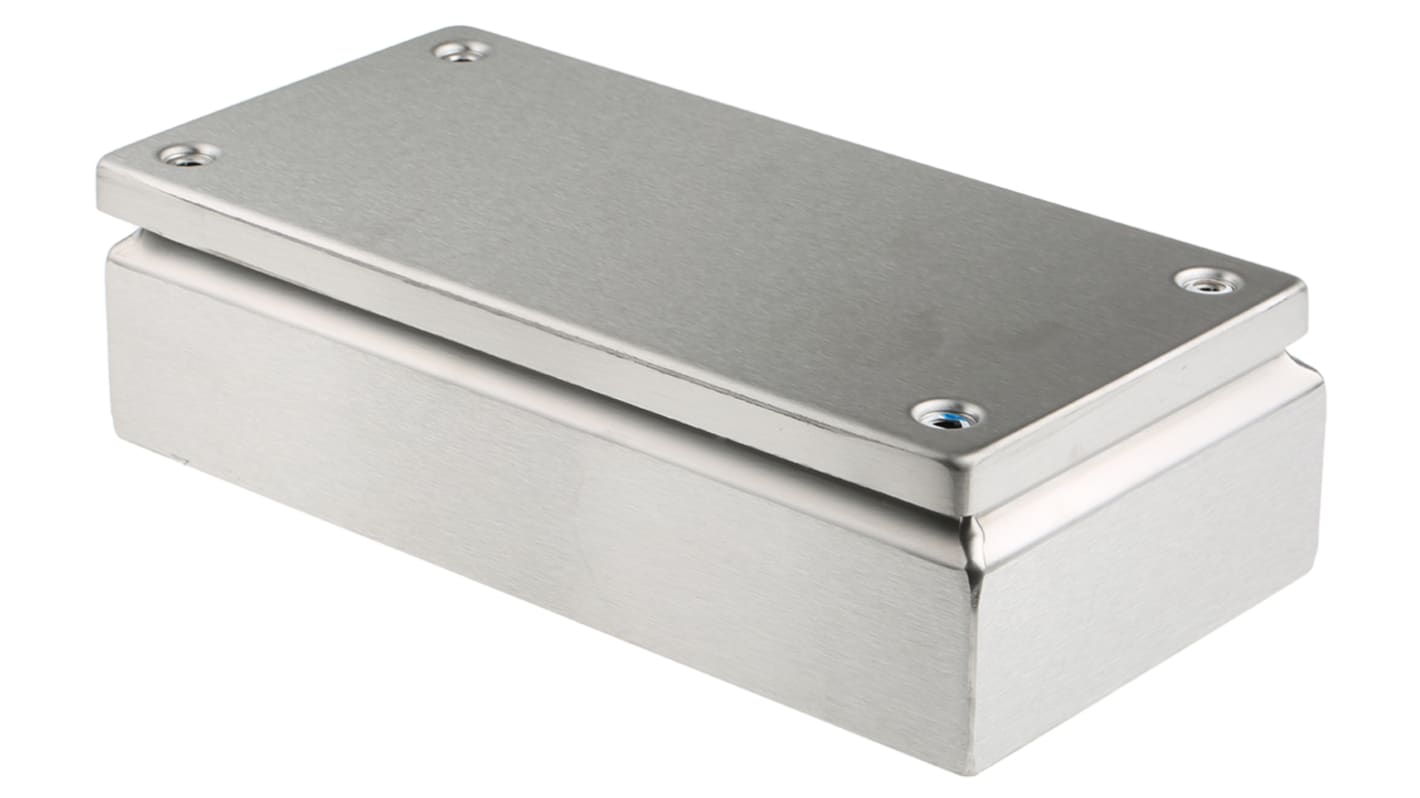

Rittal Steel Terminal Box, 150mm Height, 80mm Depth - KL Series - 1522010
Keep your sensitive electrical components safe from external elements using this terminal box from Rittal. Its made from corrosion-resistant stainless steel, making it durable and long-lasting. To ensure the protection of your contents from unauthorised access and tampering, the door can be secured in place using four screws. You can install this enclosure in tight spaces thanks to its compact dimensions of 150 (height) x 300 (width) x 80mm (depth). The interior of the unit is equipped with pre-drilled mounting holes for quick and simple installation of a chassis plate or DIN rail.
Features & Benefits
Supplied fully assembled to save time and effort during installation
Suitable for wall or surface mounting for versatile installation
Non-transparent door to keep contents hidden from view for greater security
Suitable for wall or surface mounting for versatile installation
Non-transparent door to keep contents hidden from view for greater security
Applications
Factories and workshops
Electrical circuits
Information technology centres
Electrical circuits
Information technology centres
Is this terminal box waterproof?
Thanks to its IP66 (ingress protection) rating, this box is protected against dust and high-pressure water jets. It features a foamed-in PU (polyurethane) seal that makes the enclosure water-tight, keeping your sensitive equipment protected against moisture.
Specifications
Attribute | Value |
---|---|
External Height | 300 mm |
External Width | 150 mm |
External Depth | 80mm |
Body Material | 304 Stainless Steel |
Transparent Door | No |
IP Rating | IP66 |
Chassis Plate | No |
Gland Plate | No |
Colour | Unpainted |
Series | KL |
External Mounting Type | Bracket |
IK Rating | IK08 |
Internal Mounting Type | Mounting Bosses |
Fixing Kit | No |
