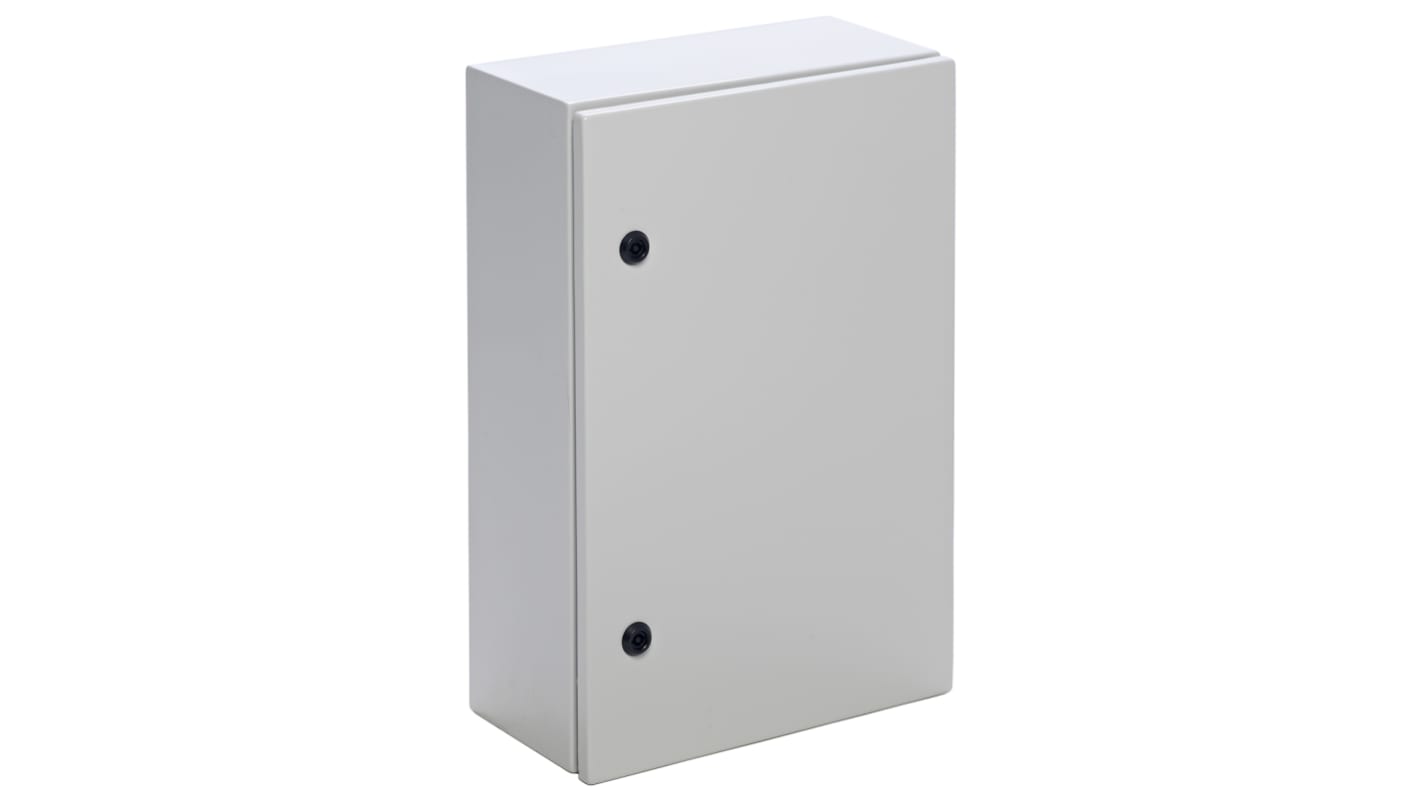

Contactum Galvanised Steel Wall Box, IP66, 700 mm x 500 mm x 250mm
- RS Stock No.:
- 183-3521
- Mfr. Part No.:
- 47-SB705025D
- Brand:
- Contactum
5 In stock - FREE next working day delivery available
Added
Price Each
£166.62
(exc. VAT)
£199.94
(inc. VAT)
| Units | Per unit |
| 1 + | £166.62 |
- RS Stock No.:
- 183-3521
- Mfr. Part No.:
- 47-SB705025D
- Brand:
- Contactum
Technical Reference
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- AE
Product Details
Galvanised steel
Powder coated – RAL 7032
Injected polyurethane gasket
Bottom gland plate
Ingress protection
Mechanical impact protection
C/W mounting plate – galvanised steel
Fitted earth strip
Material thickness 1.2mm - 1.5mm
Corrosion Resistance
Earthing studs are provided on both the enclosure and the door
CNC machine formed polyurethane gasket for reliable sealing
Corner formed door ensures better weatherproofing
Easily removable hinges, ideal for changing the door opening direction (for certain sizes)
Special profiled lip for better waterproofing
Lock features:
Quarter turn cylindrical lock
Durable metal lock and keys
Key engaged when the lock is open
Powder coated – RAL 7032
Injected polyurethane gasket
Bottom gland plate
Ingress protection
Mechanical impact protection
C/W mounting plate – galvanised steel
Fitted earth strip
Material thickness 1.2mm - 1.5mm
Corrosion Resistance
Earthing studs are provided on both the enclosure and the door
CNC machine formed polyurethane gasket for reliable sealing
Corner formed door ensures better weatherproofing
Easily removable hinges, ideal for changing the door opening direction (for certain sizes)
Special profiled lip for better waterproofing
Lock features:
Quarter turn cylindrical lock
Durable metal lock and keys
Key engaged when the lock is open
Note
Mounting Plate Supplied as Standard
Specifications
Attribute | Value |
|---|---|
| External Height | 700 mm |
| External Width | 500 mm |
| External Depth | 250mm |
| Body Material | Galvanised Steel |
| IP Rating | IP66 |
| Chassis Plate | Yes |
| Gland Plate | Yes |
| Colour | Grey |
| RAL Code | RAL 7032 |
| External Mounting Type | Bracket |
| Standards Met | IEC 60529, IEC 62208, IEC 62262 |
