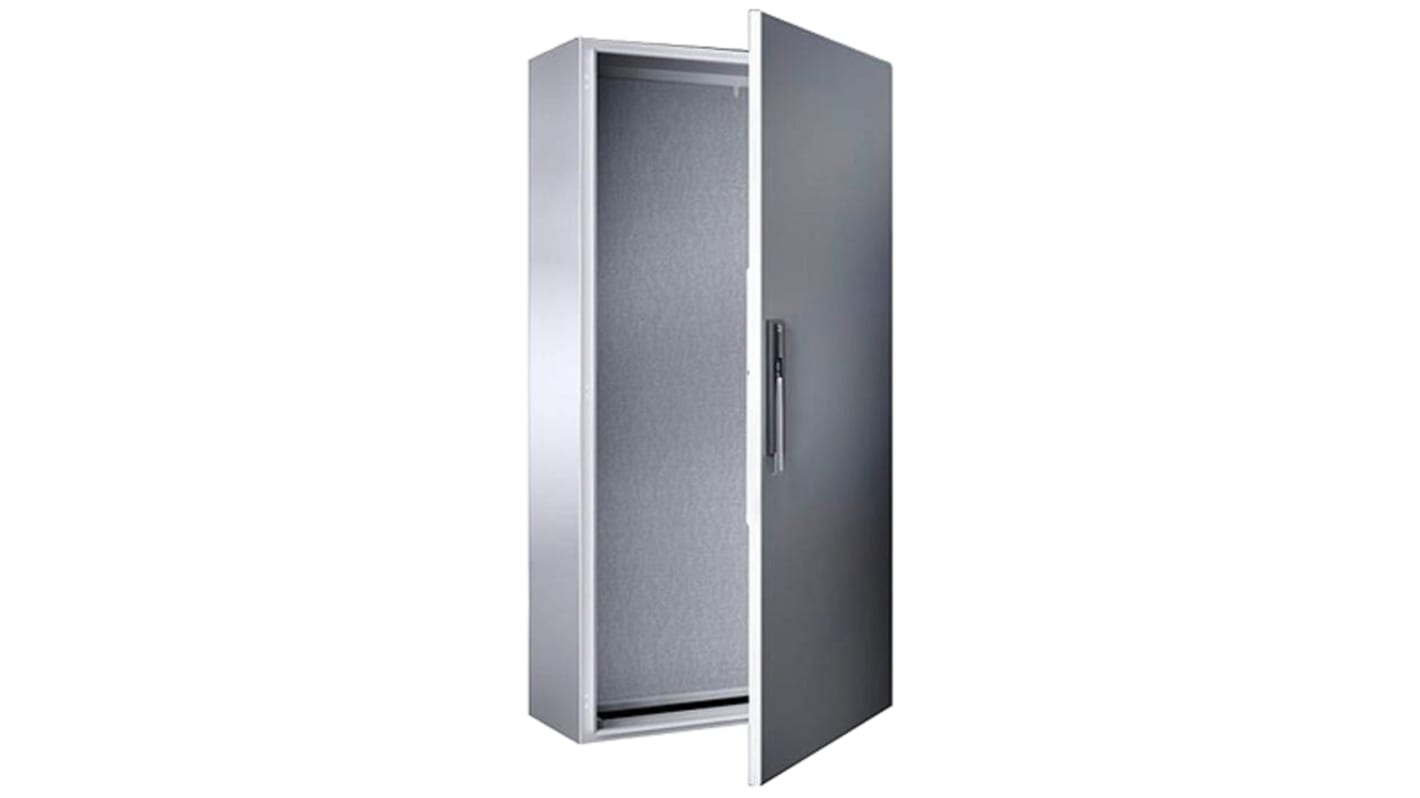

Rittal CM, Steel Wall Box, IP55, 400mm x 800 mm x 600 mm

  • RS Stock No. 124-3443
  • Mfr. Part No. 5110.500
  • Brand Rittal
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Rittal CM Compact System Enclosures

The CM series from Rittal is a 1.5 mm steel enclosure fitted with a 2 mm steel door. It has an open base to accommodate base plates. The CM series combines the benefits of a compact enclosure and the configuration diversity of the TS 8 baying system. Perforated mounting strips in the door enable support strips, cable conduit holders and covers to be attached quickly.

Features and Benefits

• 1.5 mm steel enclosure and 2 mm steel door
• All-round foamed-in PU seal on door
• Zinc-plated 3 mm steel mounting plate
• Light grey RAL 7035
• Dipcoat primed, powder-coated on the outside, textured paint
• IP55 protection with selection of the appropriate gland plates or trim panel
• IK08 protection
• Open base for individual cable entry

Note

Stock nos. 124-3443, 124-3444, 124-3445, 124-3446, 124-3447, 124-3448, 124-3449 and 124-3450 have 1 door hinged on the right, which can be swapped to the left.
Stock nos. 124-3451, 124-3452, 124-3453, 124-3454, 124-3455 and 124-3456 have 2 doors.

Standards

IEC 60 529, NEMA 12.

Approvals

UL, cUL, CSA, TUV, Lloyds Register of Shipping.

Supplied with

Enclosure, 3-point locking system with double-bit insert and mounting plate.

Specifications
Attribute Value
External Height 800 mm
External Width 600 mm
External Depth 400mm
Body Material Steel
Transparent Door No
IP Rating IP55
Chassis Plate No
Gland Plate No
Colour Grey
Series CM
Fixing Kit No
Standards Met CSA, CUL, Lloyds Register of Shipping, TUV, UL
External Mounting Type Bracket
Special Features Cable Conduit Holders & Covers, Perforated Mounting Strips
13 In stock for FREE next working day delivery
Price Each
£ 206.85
(exc. VAT)
£ 248.22
(inc. VAT)
Units
Per unit
1 +
£206.85
