Rittal AE, Steel Wall Box, IP66, 300mm x 760 mm x 760 mm

  • RS Stock No. 111-3715
  • Mfr. Part No. 1073500
  • Brand Rittal
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

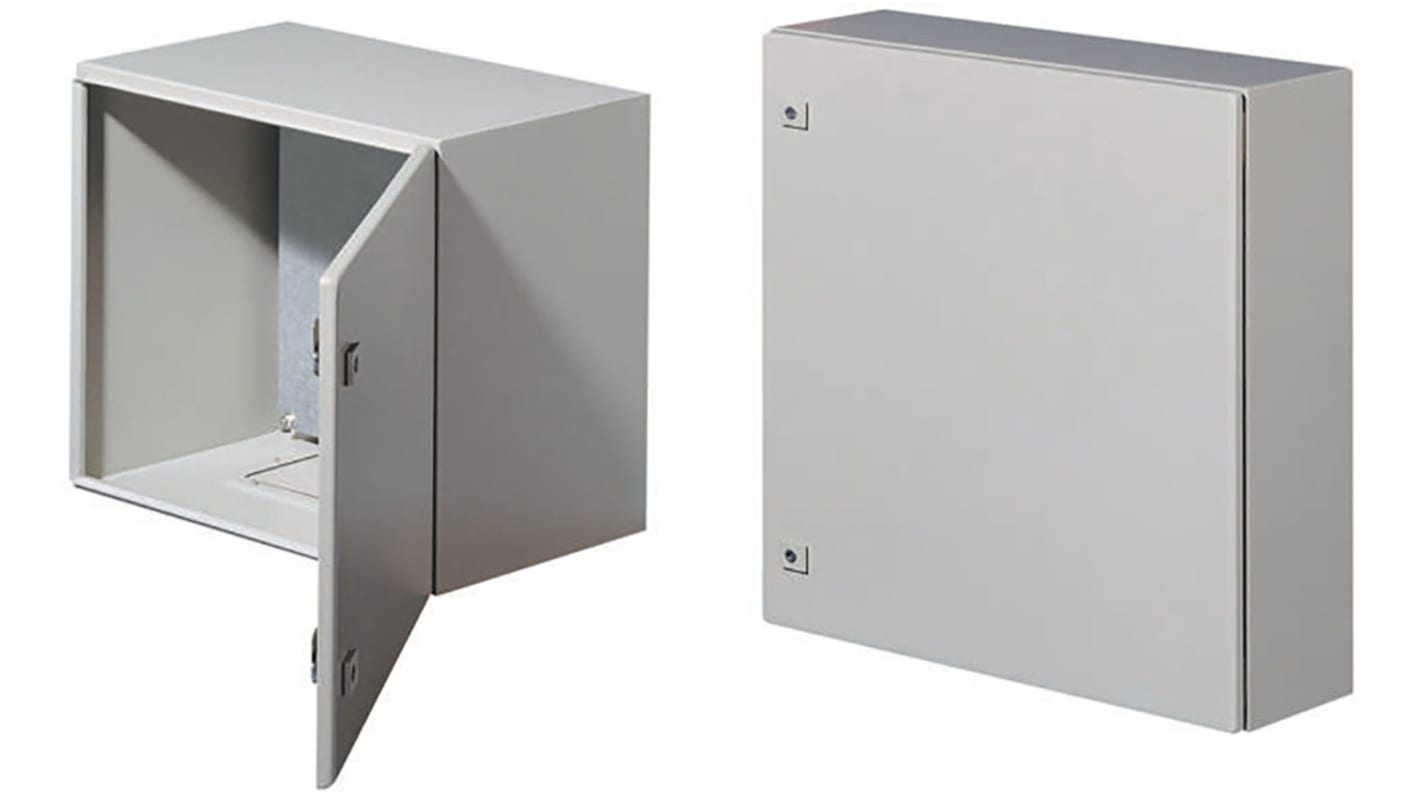

IP66 Sheet Steel Wall Boxes, AE series

The AE series wall box from Rittal has a strong unibody construction which has been dipcoat-primed and powder coated in a textured light grey finish for added corrosion protection. The door is interchangeable allowing it to be mounted on either side of the enclosure and is fitted with 2 cam locks and a foam gasket. The enclosure is also supplied with a gland plate in the base and a zinc plated mounting plate.

IP66 protection
Made from sheet steel
Outside of enclosure is dipcoat-primed and powder coated (RAL 7035 light grey)
Door interchangeable, 130° opening
Door fitted with 2 cam locks and foam gasket
Pre-punched for wall mounting brackets and interchangeable doors


Wall mounting brackets are available separately, stock no. 464-5742


IP66 to EN 60 529/10.91, NEMA Type 4.



Supplied with

zinc plated mounting plate.

Attribute Value
External Height 760 mm
External Width 760 mm
External Depth 300mm
Body Material Steel
Transparent Door No
IP Rating IP66
Chassis Plate No
Door Lock Type Cam
Gland Plate Yes
Colour Grey
Series AE
Fixing Kit No
Internal Mounting Type Panel
Application Electrical
For Protection Of Instrumentation
External Mounting Type Bracket
5 In stock for FREE next working day delivery
Price Each
£ 195.11
(exc. VAT)
£ 234.13
(inc. VAT)
Per unit
1 +
