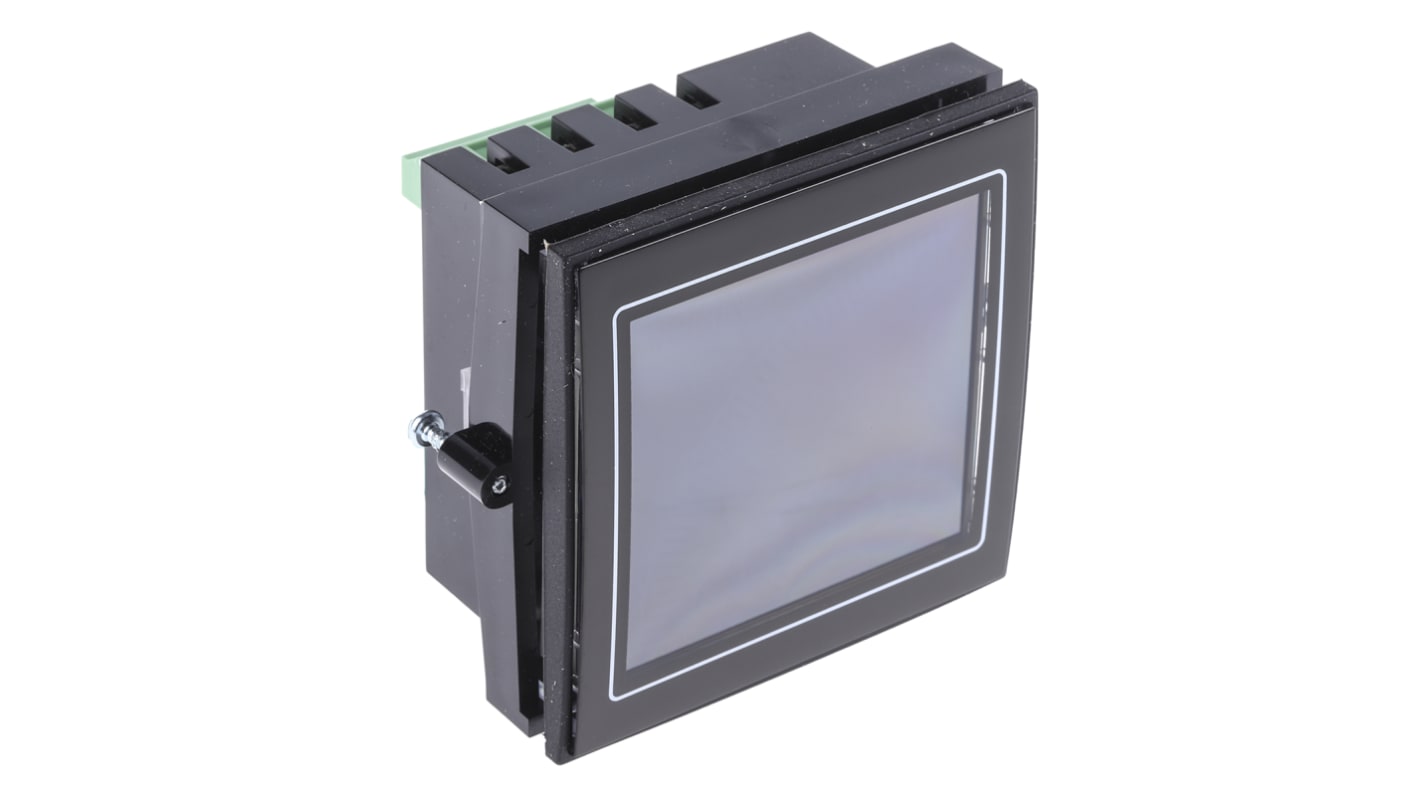

Trumeter Digital Voltmeter, LCD Display 4-Digits 1 %, 68 x 68 mm


24 In stock - FREE next working day delivery available
Add to Basket

Price Each

£42.34

(exc. VAT)

£50.81

(inc. VAT)

Units

Added

RS Stock No.:
815-8302
Mfr. Part No.:
APM-VOLT-ANN
Brand:
Trumeter
COO (Country of Origin):
MY
UnitsPer unit
1 - 4£42.34
5 - 9£41.04
10 +£40.14

APM Digital Panel Voltmeter


The Trumeter APM is the most visible, easy to use, multi-format, programmable panel meter on the market.
The APM Digital panel voltmeter provides a flexible voltage measuring input, capable of measuring both AC and DC voltages. Easy to install, it also automatically detects AC or DC signals, boasting input ranges of 600 V dc or 528 V ac. The voltmeter is supplied with an easily programmable scale that allows you to set a bar graph scale to your own specifications. It also has 15 built-in configurations that allow you to programme centre zero, positive and negative scales.


Features and Benefits


• Large 4-digit LCD display
• 40 segment bar graph display
• Separate starburst display area for annunciators, custom messages and alarm information
• User-adjustable back light brightness, colour and intensity
• 1% accuracy
• Wide viewing angle
• Custom annunciators
• 2 Independent outputs (output models only)
• 2 Independent alarm set-points
• 00-600 V dc, 0-528 V ac input range
• 4-20 mA analogue monitor output (output models only)
• USB port to connect to PC for custom user settings
• IP65 protection


Note

All Trumeter products come with a 3 year manufacturer's warranty

Trumeter APM Digital Panel Volt Meter

AttributeValue
Current TypeAC, DC
Number of Digits4
Display TypeLCD
Cutout Height68mm
Cutout Width68mm
Depth53mm
Supply Voltage12 → 24 V ac/dc
Meter Accuracy1 %
Analogue EffectSimulated Analogue Display
Minimum Temperature-10°C
Meter TypeVoltmeter
Maximum Temperature+60°C
Measurement Range0 → 600 V dc, 0 → 600V ac
