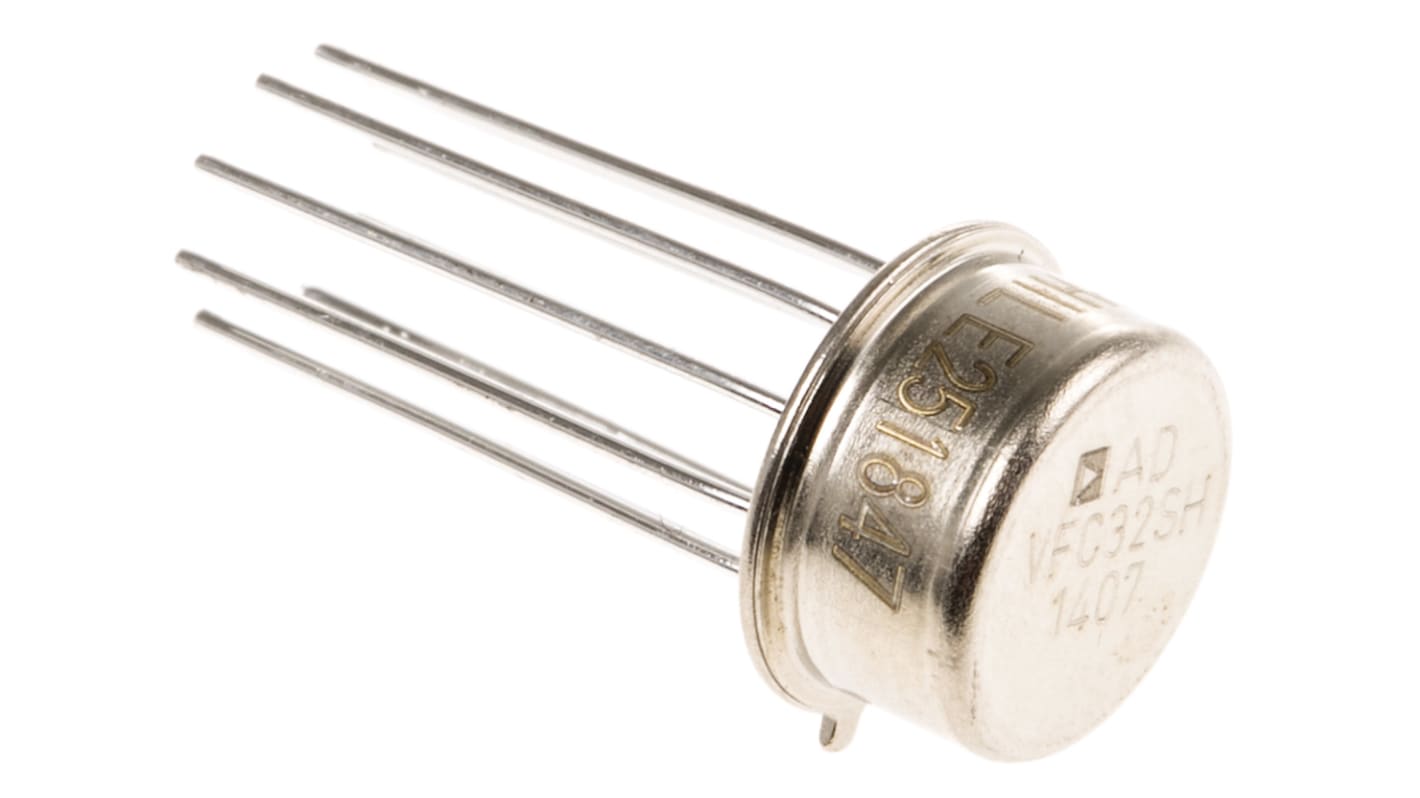

ADVFC32SH, Voltage to Frequency Converter, Non-Synchronous, 500kHz ±0.2%FSR, 10-Pin TO-100

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Voltage/Frequency Converters, Analog Devices

This economic Voltage to Frequency converter has minimal power supply requirements while offering a broad Full-Scale Frequency range. With excellent temperature characteristics and stability.

Specifications
Attribute Value
Converter Function FVC, VFC
Converter Type Non-Synchronous
Full Scale Frequency 500kHz
Linearity Error ±0.2%FSR
Power Supply Type Dual
Typical Dual Supply Voltage ±15V
Mounting Type Through Hole
Package Type TO-100
Pin Count 10
Dimensions 9.4 x 9.4 x 4.7mm
Height 4.7mm
Length 9.4mm
Maximum Operating Temperature +125 °C
Minimum Operating Temperature -55 °C
Width 9.4mm
Available to back order for despatch when stock is available
Price Each (In a Box of 100)
£ 19.37
(exc. VAT)
£ 23.24
(inc. VAT)
Units
Per unit
Per Box*
100 +
£19.37
£1,937.00
*price indicative
