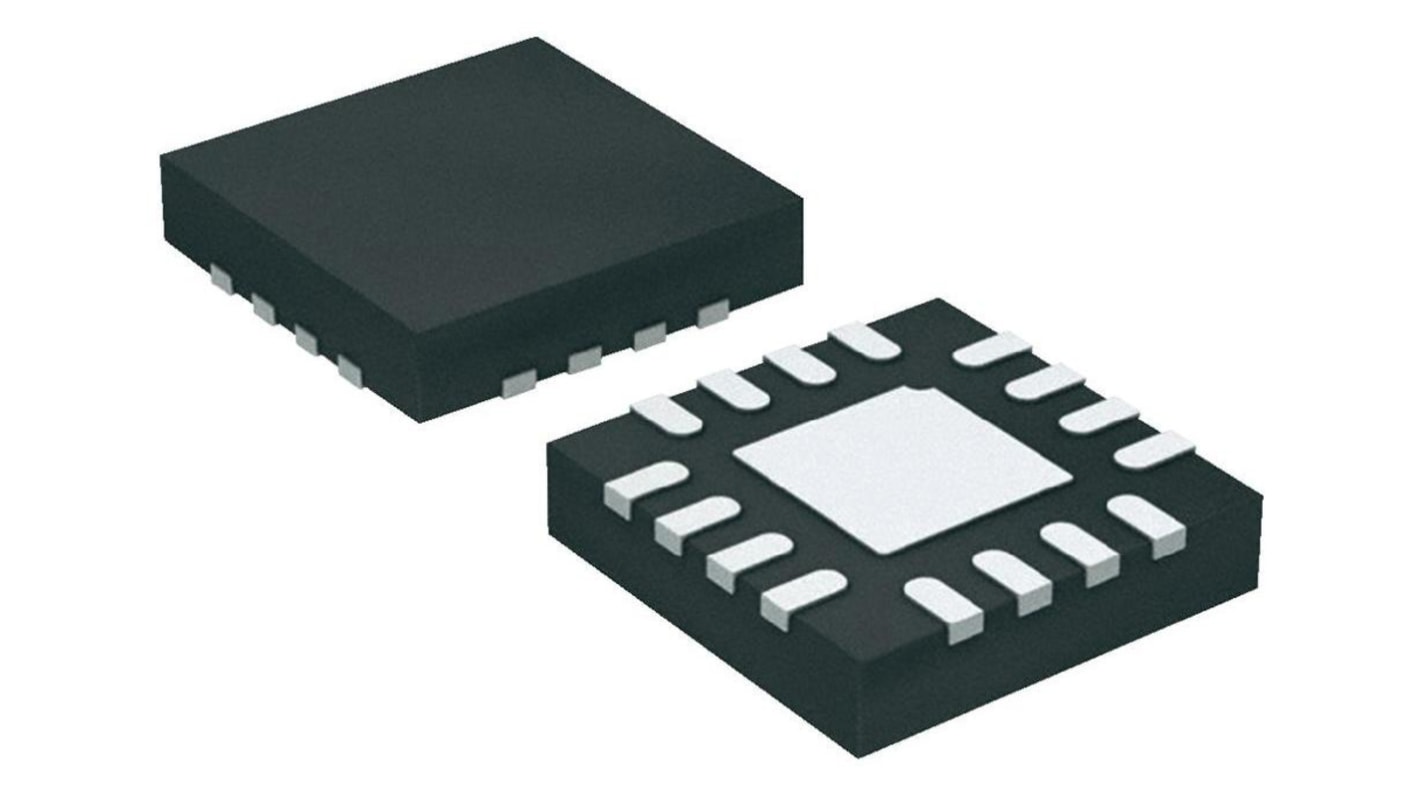

Maxim Integrated Voltage Monitor 3.5V max. 16-Pin TQFN, MAX17523ATE+
- RS Stock No.:
- 168-2919
- Mfr. Part No.:
- MAX17523ATE+
- Brand:
- Maxim Integrated
Discontinued product
- RS Stock No.:
- 168-2919
- Mfr. Part No.:
- MAX17523ATE+
- Brand:
- Maxim Integrated
Technical Reference
Legislation and Compliance
Product Details
The MAX17523 adjustable overvoltage and overcurrent protection device is ideal for protecting systems against positive and negative input voltage faults up to ±40V, and feature low 190mΩ (typ) RON integrated FETs. The adjustable overvoltage range is between 6V and 36V, while the adjustable undervoltage range is between 4.5V and 24V. The overvoltage-lockout (OVLO) and undervoltage-lockout (UVLO) thresholds are set using optional external resistors. The factory preset internal OVLO threshold is 33V (typ), and the preset internal UVLO threshold is 19V (typ). The MAX17523 also features programmable current-limit protection up to 1A. The device can be set for autoretry, latch-off, or continuous fault response when an overcurrent event occurs.
Industrial Power Protection Increases Robustness
Flexible Design Options Eases Designs
Saves Space: 16-Pin, 3mm x 3mm, TQFN Package
Flexible Design Options Eases Designs
Saves Space: 16-Pin, 3mm x 3mm, TQFN Package
Note
Please note that any defect or non – conformance of this product must be discovered and reported to RS within 20 days of purchase.
Specifications
Attribute | Value |
|---|---|
| Voltage Supervisor Type | Overvoltage Protection |
| Number of Supervisors | 1 |
| Maximum Reset Threshold Voltage | 3.5V |
| Minimum Reset Threshold Voltage | 1V |
| Mounting Type | Surface Mount |
| Package Type | TQFN |
| Pin Count | 16 |
| Dimensions | 3 x 3 x 0.75mm |
| Maximum Operating Supply Voltage | 36 V |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
- RS Stock No.:
- 168-2919
- Mfr. Part No.:
- MAX17523ATE+
- Brand:
- Maxim Integrated
