Bernstein Tools for electronics PCB Circuit Board Holder x 25 to 270, 0.28

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): IT
Product Details

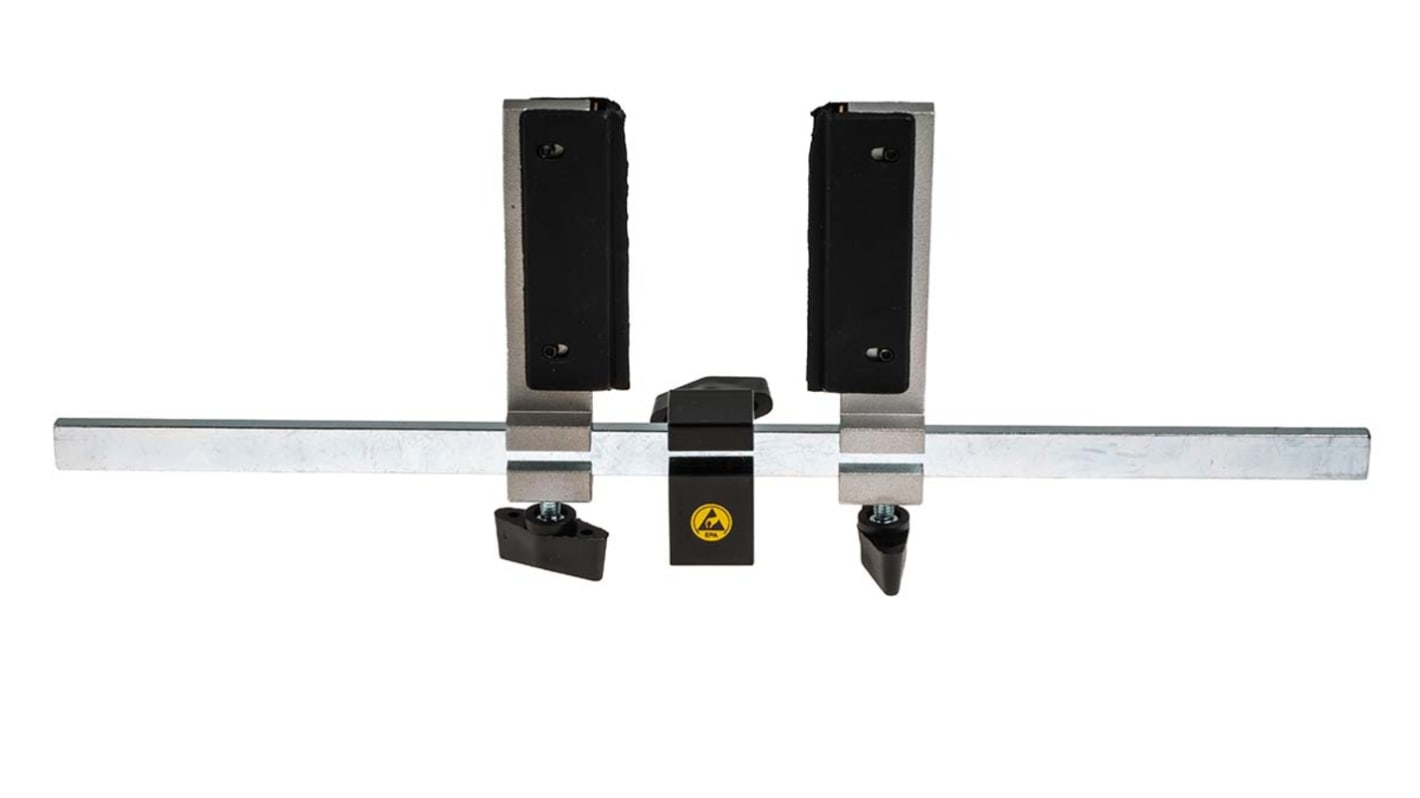

SPANNFIX ESD Circuit Board Holder System

Professional high quality ESD circuit board holder for use with Bernstein ESD vices and mounted bases (RS 834-8209, 7252693). For use in conjunction with the Bernstein angular adaptor (834-8218) and the Bernstein ESD clamping lid (834-8230) for a full PCB holding system solution.

Circuit Board Holder

Black powder coated Aluminium casting
Adjustable clamping capacity from 25mm to 270mm
Built in resilience in the clamping arms for secure holding

Circuit Board Clamping Lid

Black powder coated Aluminium casting
20mm thick ESD foam cover
Protects circuit board when not in use
Will not damage components
Different size components are pressed in a way which means that soldering can be carried out once the board is turned

Angular Adaptor

Black powder coated Aluminium casting
Allows the circuit board to be rotated in a larger turning circle for intricate working

Specifications
Attribute Value
Type PCB Circuit Board Holder
Mounting Clamp
2 in stock for FREE next working day delivery
6 available from Europe for delivery within 1 working day(s)
Price Each
£ 90.17
(exc. VAT)
£ 108.20
(inc. VAT)
Units
Per unit
1 +
£90.17
