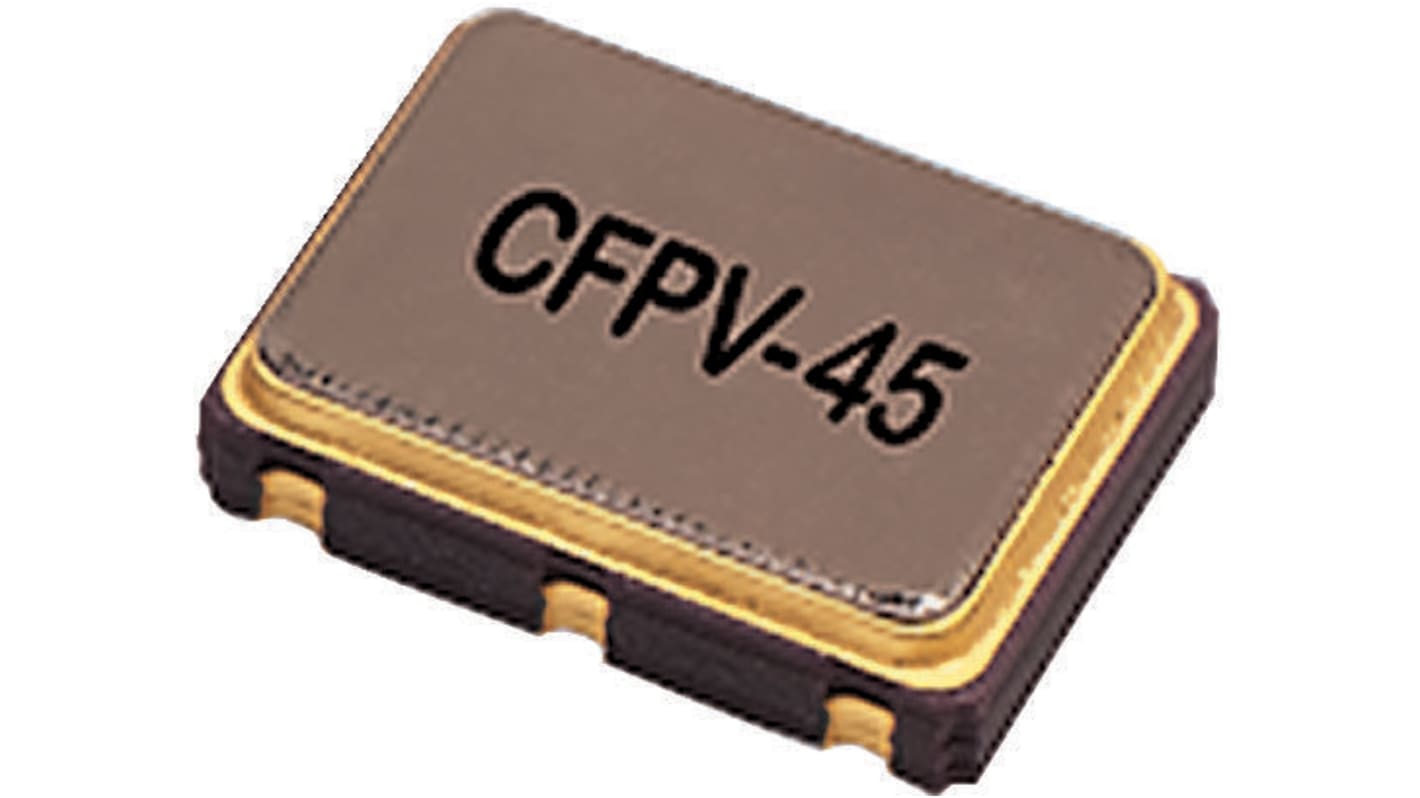

IQD 20MHz ±100ppm HCMOS SMD LFVCXO026156

  • RS Stock No. 671-5789
  • Mfr. Part No. LFVCXO026156
  • Brand IQD
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

IQD CFPV-45 Series

//media.rs-online.com/t_line/L6715764-01.gif

Voltage Controlled Oscillators (VCO)

Specifications
Attribute Value
Output Frequency 20MHz
Frequency Stability ±100ppm
Load Capacitance 15pF
Package Type SMD
Output Level HCMOS
Minimum Operating Temperature 0°C
Maximum Operating Temperature 70°C
Height 1.7mm
Dimensions 7 x 5 x 1.7mm
336 In stock - FREE next working day delivery available
Price Each
£ 3.24
(exc. VAT)
£ 3.89
(inc. VAT)
Units
Per unit
1 - 24
£3.24
25 - 49
£2.67
50 - 99
£2.44
100 - 249
£2.20
250 +
£2.10
