RS PRO Ceramic Trimmer Capacitor 10 → 50pF 100V Ceramic

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

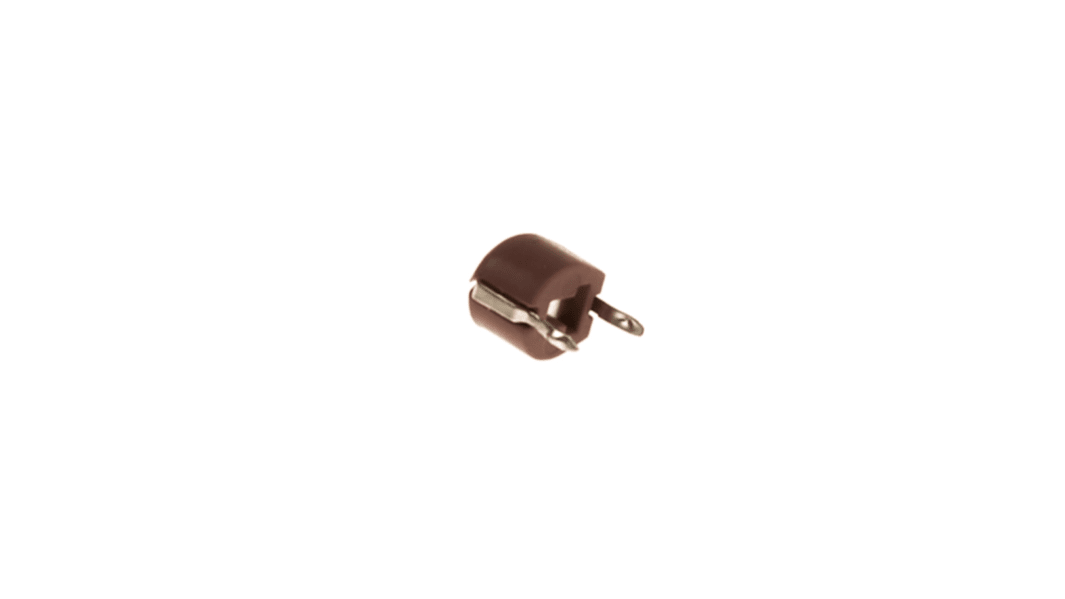

RS PRO Ceramic Trimmer Capacitor

The RS PRO through-hole mount ceramic trimmer capacitor is a new age device. It comes with a voltage rating of 100V and capacitive range between 10pF and 50pF.

Features and Benefits

• Lead pitch is 5.3mm
• Operating temperature ranges between -25°C to 85°C

Applications

• Electric and electronic apparatus
• Communication equipment

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007

Specifications
Attribute Value
Voltage 100V
Dielectric Ceramic
Mounting Type Through Hole
Tolerance 0 → 50%
Dimensions 5 x 6mm
Lead Pitch 5.3mm
Lead Diameter 0.2mm
Depth 5mm
Height 6mm
Minimum Capacitance 10pF
Capacitive Range 10 → 50pF
Maximum Capacitance 50pF
Maximum Operating Temperature +85°C
Minimum Operating Temperature -25°C
Available to back order for despatch 19/10/2020
Price Each (In a Pack of 25)
£ 0.26
(exc. VAT)
£ 0.31
(inc. VAT)
Units
Per unit
Per Pack*
25 - 75
£0.26
£6.50
100 - 225
£0.22
£5.50
250 - 475
£0.18
£4.50
500 +
£0.15
£3.75
*price indicative
