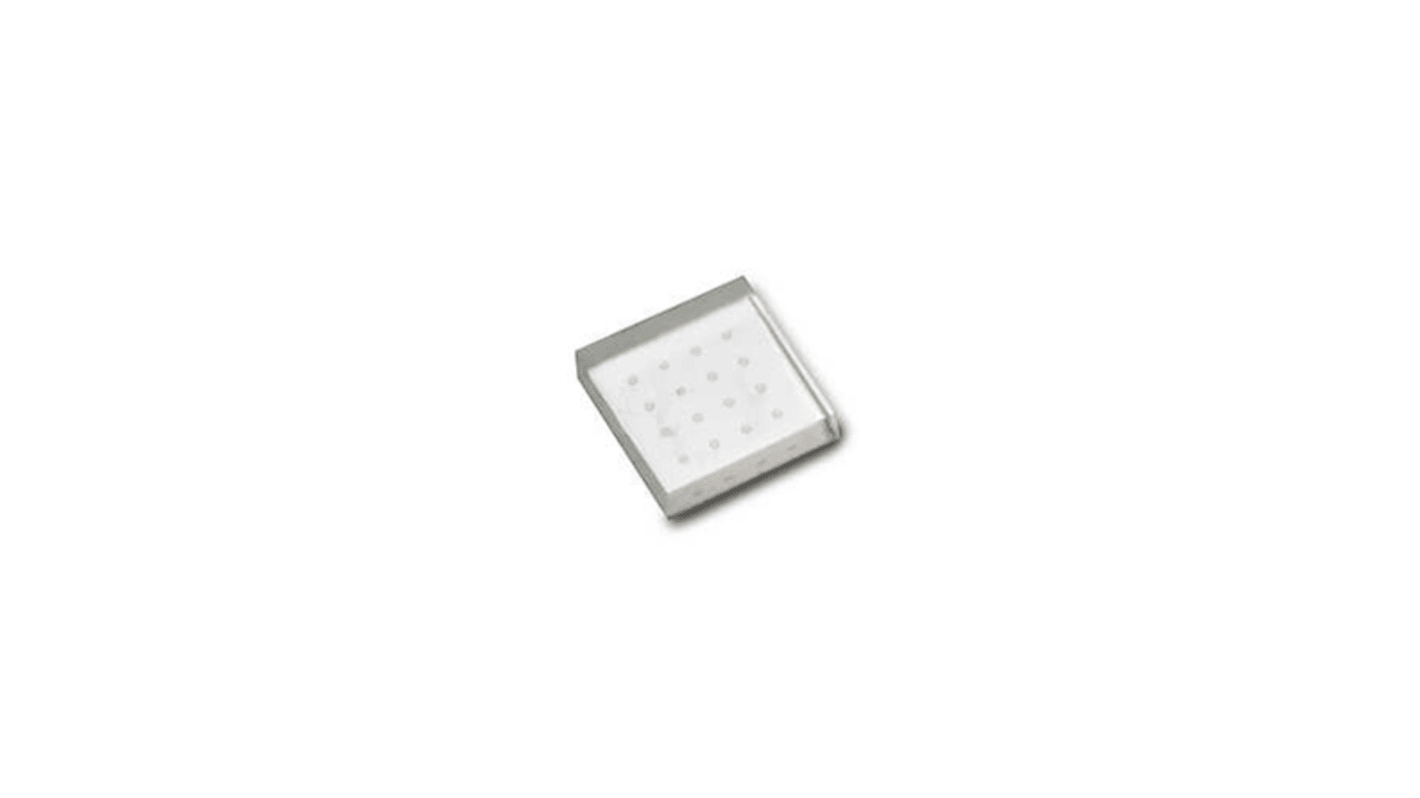

L1F2-U400100006001 Lumileds, LUXEON FlipChip UV Series UV LED, 400 → 410nm 1232mW, 2-Pin Surface Mount package
- RS Stock No.:
- 897-8841
- Mfr. Part No.:
- L1F2-U400100006001
- Brand:
- Lumileds
Discontinued product
- RS Stock No.:
- 897-8841
- Mfr. Part No.:
- L1F2-U400100006001
- Brand:
- Lumileds
Technical Reference
Legislation and Compliance
Product Details
Lumileds LUXEON FlipChip UV LEDs
The LUXEON FlipChip UV series from Lumileds are a family of UltraViolet LEDs in a chip-scale package. This extremely compact package comes with a UV wavelength of between 380 and 410nm. The LUXEON FlipChip UV LEDs can be packed closely together for Chip-On-Board (COB) solutions. They also offer tight beam control.
These high power density UV LEDs have a batwing radiation pattern making them great for wide emission angles. The LUXEON FlipChip UV LEDs are designed for speciality lighting.
These high power density UV LEDs have a batwing radiation pattern making them great for wide emission angles. The LUXEON FlipChip UV LEDs are designed for speciality lighting.
Features of the LUXEON FlipChip UV LEDs:
Chip-scale package 1 x 1 x 0.25 mm
High power density
UV wavelength: 380 to 410 nm
No wire bonds
5 sided emitter
Batwing emission pattern
Low thermal resistance
Chip-scale package 1 x 1 x 0.25 mm
High power density
UV wavelength: 380 to 410 nm
No wire bonds
5 sided emitter
Batwing emission pattern
Low thermal resistance
Note
Please note, due to their extremely small dimensions, these LEDs cannot be mounted using manual techniques.
Ultraviolet (UV) LEDs, Lumileds
Specifications
Attribute | Value |
|---|---|
| Number of LEDs | 1 |
| Peak Wavelength | 400 → 410nm |
| Radiant Flux | 1232mW |
| Package Type | CSP |
| Number of Pins | 2 |
| Mounting Type | Surface Mount |
| Height | 0.25mm |
| Length | 0.98mm |
| Width | 0.98mm |
| Dimensions | 1 x 1 x 0.25mm |
| Series | LUXEON FlipChip UV |
