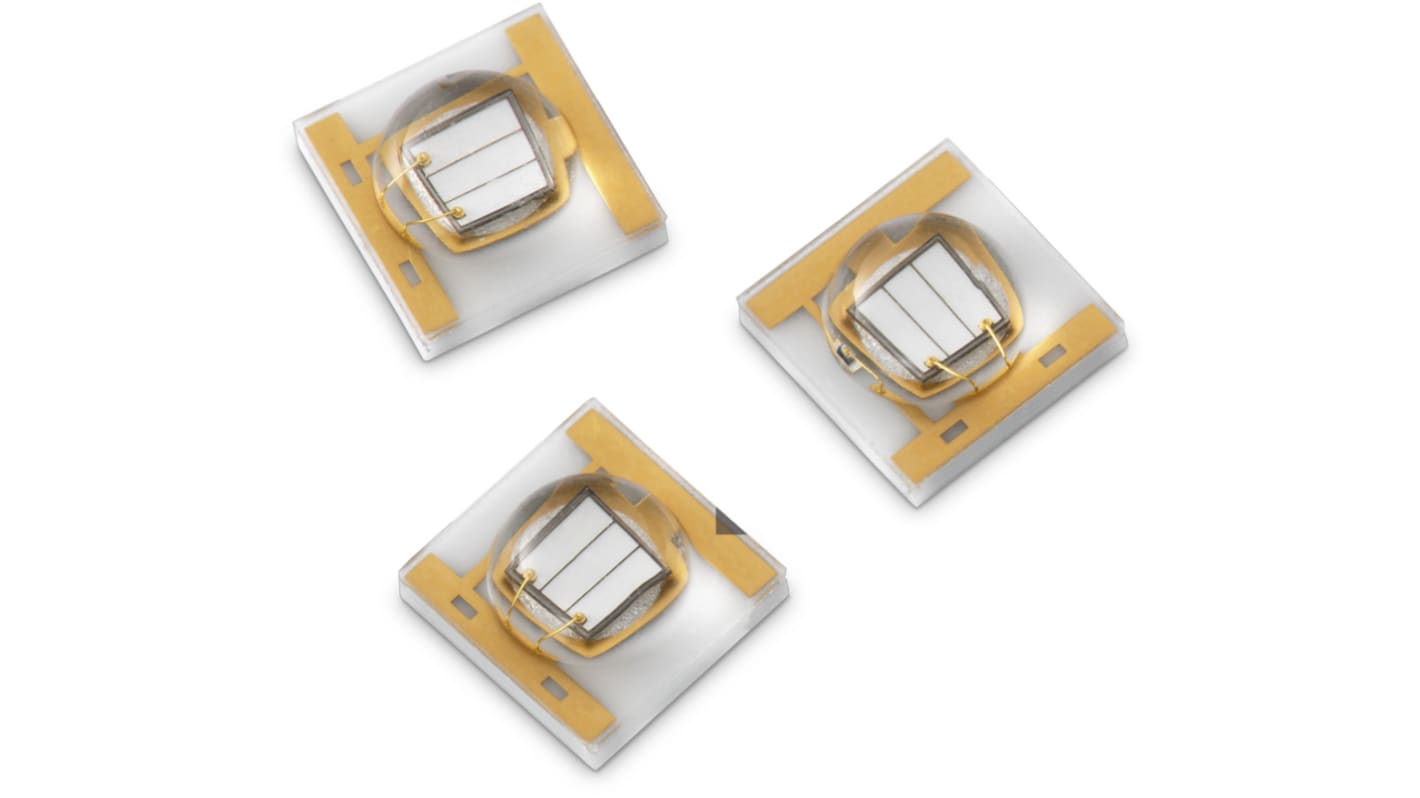

15335339AA350 Wurth Elektronik, WL-SUMW Series UV LED, 395nm 1100mW 130 °, 2-Pin Surface Mount package
- RS Stock No.:
- 176-4986
- Mfr. Part No.:
- 15335339AA350
- Brand:
- Wurth Elektronik
- RS Stock No.:
- 176-4986
- Mfr. Part No.:
- 15335339AA350
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Characteristics
High power output UV LEDs
Low thermal resistancy
Standard soldering pad footprint
Peak wavelengths: 385, 395, 405 nm
Applications
UV Curing
Printing
Counterfeit detection
UV torch
High power output UV LEDs
Low thermal resistancy
Standard soldering pad footprint
Peak wavelengths: 385, 395, 405 nm
Applications
UV Curing
Printing
Counterfeit detection
UV torch
Specifications
Attribute | Value |
---|---|
Number of LEDs | 1 |
Peak Wavelength | 395nm |
Radiant Flux | 1100mW |
Package Type | 3535 |
Viewing Angle | 130 ° |
Lens Shape | Dome |
Number of Pins | 2 |
LED Material | AlInGaN |
Mounting Type | Surface Mount |
Height | 2.1mm |
Length | 3.4mm |
Width | 3.4mm |
Series | WL-SUMW |
Dimensions | 3.4 x 3.4 x 2.1mm |
