RS PRO USB Connector, Panel Mount, Socket 3.0 A, Plug In, Straight- Dual Port

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

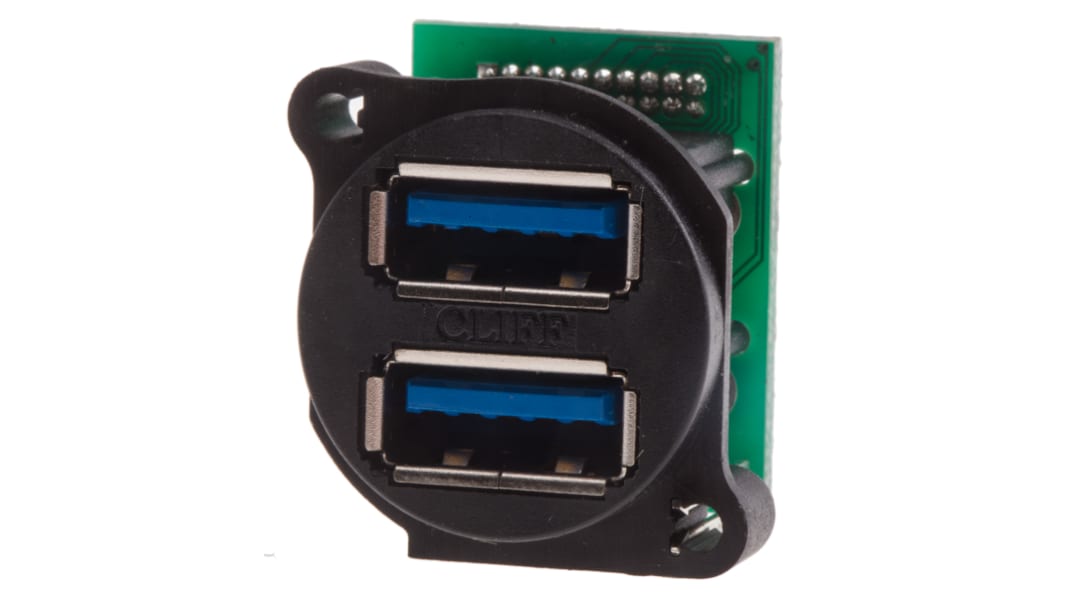

RS PRO XLR USB Type A x 2 Panel Connector

From RS PRO, a range of dual type A USB connectors mounted in a single XLR receptacle enclosure. They can be used in conjunction or to replace XLR panel mount connectors in, for example, audio panel interfaces or computer systems. Each socket has individual terminals for PCB or cable connection.

Features and Benefits:
Panel mount dual USB sockets
Colour: Black
862-1576 has 2 x 10 way headers
862-1567 and 830-0074 have 2 x 5 way headers in differing layouts

Available in this Range:

830-0074 - Dual Port Panel Mount, Version 2.0 USB Connector, Receptacle
862-1567 - Dual Port Panel Mount, Version 2.0 USB Connector, Receptacle
862-1576 - Dual Port Panel Mount, Version 3.0 USB Connector, Receptacle


FAQs

What does USB type mean?
USB (Universal Serial Bus) type can mean the following:
The connectors at the end of a USB cable, the USB ports the cable is plugging into, the cable being used and also the USB adapter if one is needed.

What are the different types of USB connector?
USB connectors are often called male connectors as they plug into a female port.
USB 2.0 – Type-A, Type-B, Type Mini-B, Type Micro-B
USB 3.0 – Type-A, Type-B, Type-C and Type Micro-B
Mini Connectors
Micro Connectors

Note

Stock number 862-1576 has 2x10 way headers, 862-1567 and 830-0074 have 2x5 way headers in differing layouts.

Specifications
Attribute Value
Gender Female
USB Type A
Mounting Type Panel Mount
Termination Method Plug In
USB Version 3.0
Body Orientation Straight
Number of Ports 2
Voltage Rating 5.0 V
Series CP
38 In stock - FREE next working day delivery available
Price Each
£ 9.90
(exc. VAT)
£ 11.88
(inc. VAT)
Units
Per unit
1 - 9
£9.90
10 - 24
£9.32
25 - 49
£8.81
50 - 99
£8.34
100 +
£7.92
