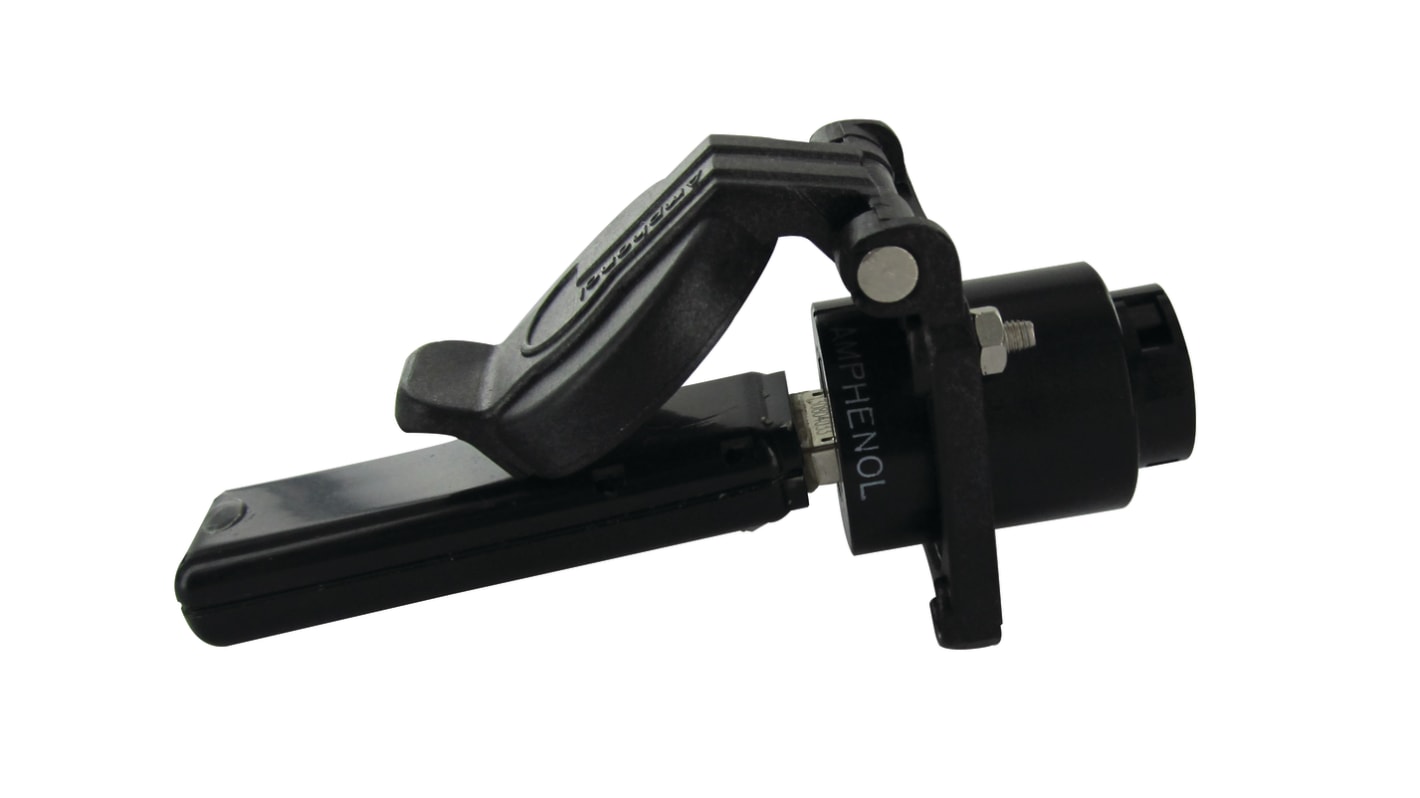

Amphenol Socapex Straight, Jam Nut, Female to Male Type A 2.0 IP54 USB Connector
- RS Stock No.:
- 739-8575
- Mfr. Part No.:
- USBAPSCC7210A
- Brand:
- Amphenol Socapex
16 In stock - FREE next working day delivery available
6 available from Europe for delivery within 1 working day(s).
Added
Price Each
£19.36
(exc. VAT)
£23.23
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £19.36 |
| 25 - 74 | £17.42 |
| 75 - 199 | £16.15 |
| 200 - 399 | £15.76 |
| 400 + | £15.33 |
- RS Stock No.:
- 739-8575
- Mfr. Part No.:
- USBAPSCC7210A
- Brand:
- Amphenol Socapex
Technical Reference
Legislation and Compliance
Product Details
USB-A Jam Nut Receptacles
These Amphenol USB-A Jam Nut Receptacles have a self closing cap that provides IP54 protection when alone, the protection is increased to IP67 when an appropriate USB-A cable assembly is connected. The USB_A Receptacle has either a rear USB-A Receptacle or a cordset with a standard USB-A Plug. A Panel Gasket is also included with this these USB-A Jam Nut Receptacles.
Note
For IP67 USB-A Cable Assemblies see stock number 739-8581 typical.
Amphenol USB-A Field Rugged Plastic & Neoprene solutions with Self Closing Cap
Amphenol USB-A Field - Plastic & Neoprene versions are rugged USB interconnect solutions suitable for harsh industrial environments. The Self Closing Cap enclosure provides protection to the USB-A Field Receptacles from dust and fluids when the Plug or the USB Memory key are not in place.
Sealing Levels:
Matted condition with Plug or Rugged USB Memory Key : IP67
Receptacle with Self Closing Cap alone : IP54
Receptacle with Self Closing Cap alone : IP54
Specifications
Attribute | Value |
|---|---|
| Gender | Female to Male |
| USB Type | A |
| Mounting Type | Jam Nut |
| Termination Method | Cable |
| USB Version | 2.0 |
| Body Orientation | Straight |
| IP Rating | IP54 |
| Number of Ports | 1 |
| Current Rating | 5.0A |
| Voltage Rating | 5.0 V |
| Series | USB Access Point |
| Contact Material | Copper Alloy, Gold Plated |
| Minimum Operating Temperature | -40.0°C |
| Maximum Operating Temperature | +85°C |
- RS Stock No.:
- 739-8575
- Mfr. Part No.:
- USBAPSCC7210A
- Brand:
- Amphenol Socapex
