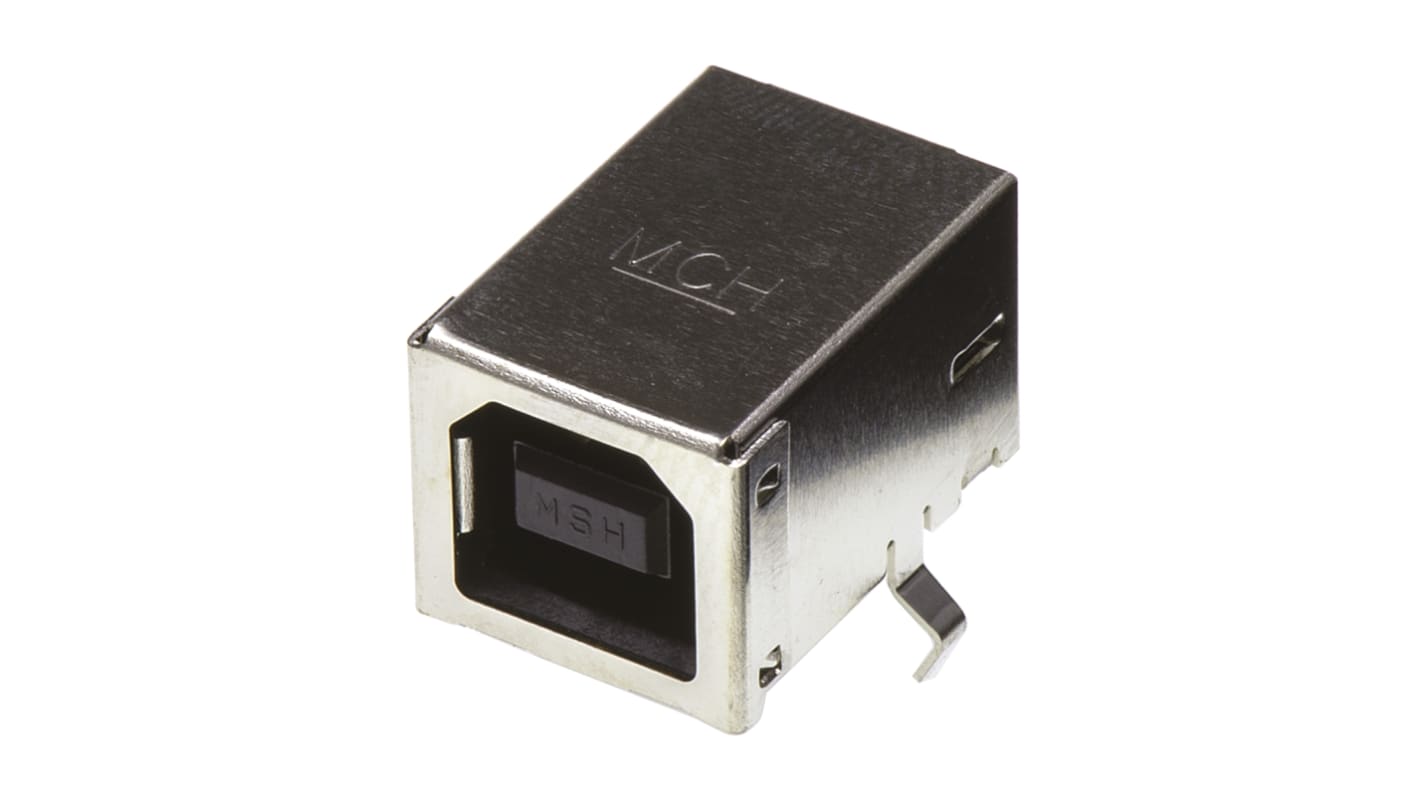

Molex USB Connector, Through Hole, Socket B, Solder, Right Angle- Single Port

  • RS Stock No. 515-1989
  • Mfr. Part No. 67068-7041
  • Brand Molex
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

USB PCB Receptacles

From Molex, a range of PCB mount USB Receptacles in a range of variations. These Through Hole USB Receptacles have a high temperature Nylon Glass Fibre filled UL 94V-0 housing coloured Black (unless otherwise stated) with a Tin plated copper alloy shell. This Molex range of USB receptacles is suited to various applications, such as Desktop and Notebook PC's, Keyboard, Mouse, Telephony - ISDN, PBX's, Handsets and peripherals.

Variations of Molex USB Receptacles are as follows:

USB 'A' types:
515-1945 Upright, Right Angle, kinked tabs, panel through style, without Mylar
515-2049 Upright, Right Angle kinked tabs, flange out
800-6863 Upright, Right Angle, Reverse Mount, Polyester Black
800-6848 Dual Right Angle, Polyester Black, kinked tabs, Gold Flash
800-6876 Dual, Right Angle, Polyester Black, kinked tabs, 0.76 μm Gold
800-7012 Dual, Right Angle, Polyester White, kinked tabs, Gold Flash
822-3208 Upright, Right Angle, Gold Flash
896-7579 Vertical with 3 bevelled metal pins

USB 'B' types:
515-1967 Right Angle, kinked tabs, Gold Flash
515-1989 Right Angle, kinked tabs, 0.76 μm Gold
800-6841 Right Angle, straight tabs, Gold Flash
800-6851 Right Angle, straight tabs, 0.76 μm Gold
800-6857 Right Angle, kinked Tabs, 0.76 μm Gold
800-6860 Right Angle, Polyester White, Kinked Tabs, Gold Flash

Molex USB Connectors

Specifications
Attribute Value
Gender Female
Mounting Type Through Hole
USB Type B
Termination Method Solder
Body Orientation Right Angle
Number of Ports 1
Current Rating 1.5A
Voltage Rating 30.0 V
Series Number 67068
Contact Material Phosphor Bronze
Minimum Operating Temperature 0.0°C
Maximum Operating Temperature +50°C
255 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£ 1.136
(exc. VAT)
£ 1.363
(inc. VAT)
Units
Per unit
Per Pack*
5 - 120
£1.136
£5.68
125 - 370
£0.912
£4.56
375 - 995
£0.794
£3.97
1000 +
£0.656
£3.28
*price indicative
