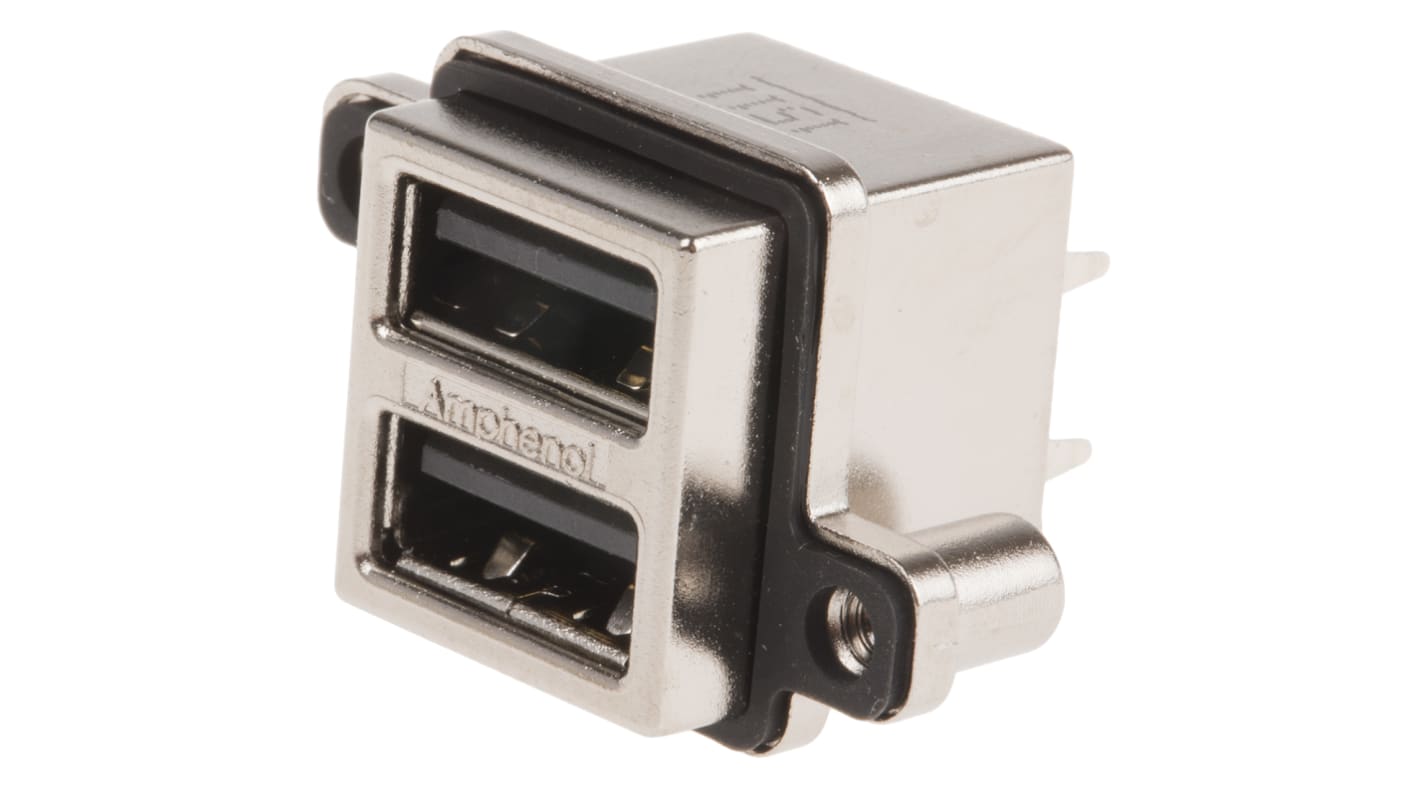

Amphenol ICC Straight, Through Hole, Socket Type A USB Connector
- RS Stock No.:
- 170-2695
- Mfr. Part No.:
- MUSBC51100
- Brand:
- Amphenol ICC
Available to back order for despatch 14/06/2024
Added
Price Each (In a Bag of 30)
£11.005
(exc. VAT)
£13.206
(inc. VAT)
| Units | Per unit | Per Bag* |
| 30 - 30 | £11.005 | £330.15 |
| 60 - 90 | £10.708 | £321.24 |
| 120 - 240 | £10.422 | £312.66 |
| 270 + | £10.158 | £304.74 |
| *price indicative | ||
- RS Stock No.:
- 170-2695
- Mfr. Part No.:
- MUSBC51100
- Brand:
- Amphenol ICC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
USB Connectors, Harsh Environment - MUSB Series
Amphenol MUSB series USB connectors provide the ideal solution for data transfer in harsh environments that demand a robust and reliable connector . These USB connectors are underwater submersible rather than just water resistant in both mated and unmated conditions. Suitable for industrial, military communications, mobile and other demanding connector situations.
Features and Benefits:
• IP67 sealed in mated and unmated conditions
• Die cast connector shell with nickel plated finish
• UL94V-0 Black Housing
• Contact plating gold
• Current rating 1.5 Amps
• Voltage rating 100 Vdc @ -25°C → +85°C
• Dielectric withstanding voltage 500Vac, RMS, 60Hz 1 minute
• Operating temperature range -40°C → +105°C
• IP67 sealed in mated and unmated conditions
• Die cast connector shell with nickel plated finish
• UL94V-0 Black Housing
• Contact plating gold
• Current rating 1.5 Amps
• Voltage rating 100 Vdc @ -25°C → +85°C
• Dielectric withstanding voltage 500Vac, RMS, 60Hz 1 minute
• Operating temperature range -40°C → +105°C
Amphenol USB & RJ45 Connectors, Harsh Environment
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| Mounting Type | Through Hole |
| USB Type | A |
| Termination Method | Solder |
| Body Orientation | Straight |
| Number of Ports | 2 |
| Current Rating | 1.5A |
| Series | MUSB |
| Contact Material | Copper Alloy |
| Minimum Operating Temperature | -40.0°C |
| Maximum Operating Temperature | +105°C |
