- RS Stock No.:
- 161-2311
- Mfr. Part No.:
- USB-B-S-F-W-TH
- Brand:
- Samtec
Available to back order for despatch 13/05/2024
Added
Price Each (In a Tray of 10)
£0.782
(exc. VAT)
£0.938
(inc. VAT)
Units | Per unit | Per Tray* |
10 + | £0.782 | £7.82 |
*price indicative |
- RS Stock No.:
- 161-2311
- Mfr. Part No.:
- USB-B-S-F-W-TH
- Brand:
- Samtec
Technical Reference
Legislation and Compliance

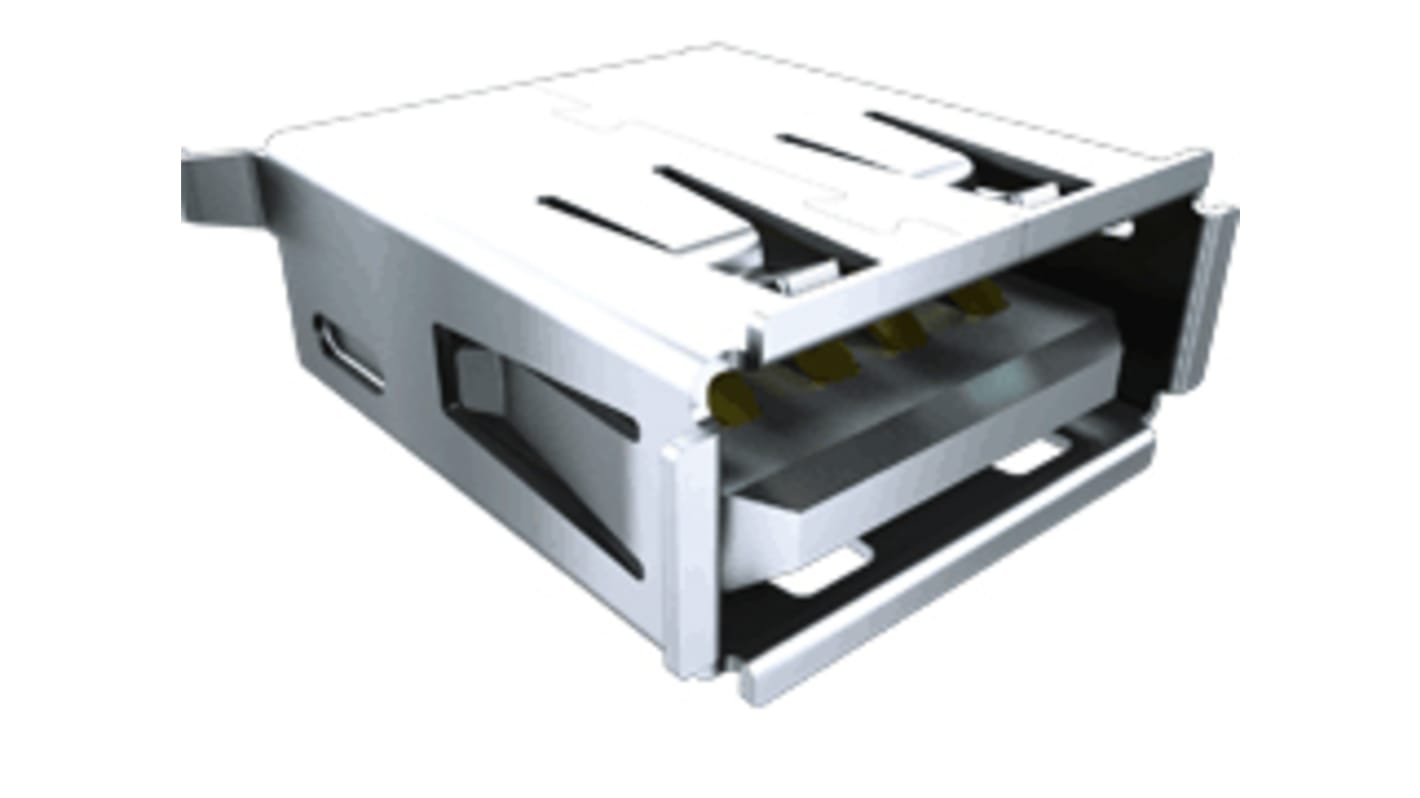

Product Details
USB 2.0 Interface, Type A
Available in black or white insulators
Available in standard or high-retention
Available with though-hole or surface mount tails
Cost saving flash gold plating available
Dual stack jack available
Available in standard or high-retention
Available with though-hole or surface mount tails
Cost saving flash gold plating available
Dual stack jack available
Specifications
Attribute | Value |
---|---|
Gender | Female |
Mounting Type | Through Hole |
USB Type | B |
Termination Method | Solder |
USB Version | 2.0 |
Body Orientation | Right Angle |
Number of Ports | 1 |
Voltage Rating | 30.0 V |
Series | USB-B |
Contact Material | Phosphor Bronze |
Minimum Operating Temperature | -50.0°C |
Maximum Operating Temperature | +85°C |
