Startech 2 Port PCIe USB 3.1 Card

  • RS Stock No. 186-3256
  • Mfr. Part No. PEXUSB311AC2
  • Brand Startech
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

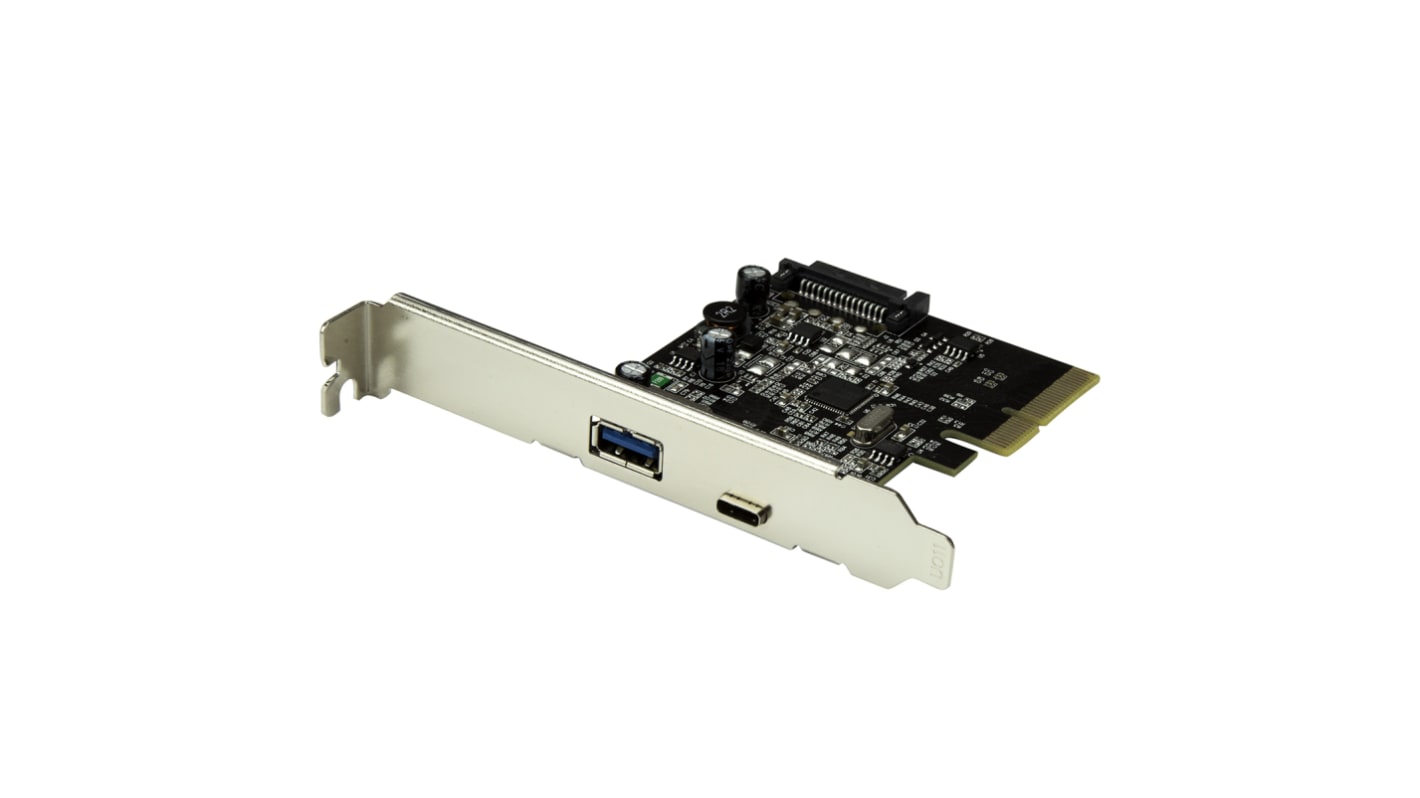

PEXUSB311AC2 Dual Port USB 3.1 Card

This USB 3.1 card lets you add one USB-C™ port and one USB-A port to your computer, through a PCI Express slot. It enables you to upgrade your current system by adding two USB 3.1 Gen 2 ports to your computer and giving you access to data transfer speeds up to 10Gbps per port.

Plus, by adding one USB-C and one USB-A port to your PC, you can easily connect legacy, modern, and future USB devices, regardless of the USB connector type.

Faster USB performance

By adding 10Gbps USB ports to your computer, you can harness the speed of USB 3.1 Gen 2 and rest assured you’re ready for both current and future high-bandwidth USB-A and USB-C devices.

With higher data throughput support, this USB 3.1 PCIe card is a necessity for external drives, drive enclosures, and many other USB 3.1 peripherals. Plus, the USB card includes an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.1 bus-powered devices (500mA for USB 2.0). The card is ideal for use with large external storage solutions.

Compatible with older USB devices

Connecting older peripherals isn’t a problem. This versatile dual-port USB 3.1 card is backward compatible with legacy USB 3.0/2.0 devices that use the common USB Type-A port, so you can eliminate the added expense and aggravation of purchasing new devices. You can also connect older devices on the USB Type-C™ port using a variety of USB-C cables and adapters.

Easy installation

The USB 3.1 card is compatible with a broad range of Windows® and Linux® operating systems. Plus, the high-quality card includes both standard-profile and low-profile brackets, making it easy to install in full or small form-factor PCs and servers.

The PEXUSB311AC2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features & Benefits

• Diversify the overall USB capabilities of your computer by adding USB Type-C and USB Type-A ports
• Transfer files and access USB 3.1 devices faster, with up to 10Gbps throughput
• Optional SATA power connector provides up to 900mA per USB port
• Cost-effective backward compatibility, works with USB 3.0 and 2.0 devices
• PCIe x4 interface compliant with PCI Express Base Specification Revision 3.0
• Fits into standard or low-profile systems with a dual-profile design
• Compliant with UASP (USB Attached SCSI Protocol) Revision 1.0
• Compliant with Universal Serial Bus 3.1 Specification Revision 1.0, and Universal Serial Bus Specification Revision 2.0

Applications

• Upgrade an older PCIe equipped desktop from USB 3.0/2.0 to USB 3.1 Gen 2 (10Gbps)
• Expand the USB capabilities of your system by adding one USB-C port and one USB-A port, or install the card as a vital hardware component when building a new PC
• Ideal for file backups, video editing, and data recovery, using high-bandwidth USB 3.1 Gen 2 external storage solutions

What’s in the package?

• USB 3.1 card
• low-profile bracket
• quick-start guide

Specifications
Attribute Value
Bus Type PCIe
USB Standard USB 3.1
Number of USB Ports 2
USB Connection Type USB A, USB C
Available to back order for despatch 09/01/2020
Price Each
£ 48.99
(exc. VAT)
£ 58.79
(inc. VAT)
Units
Per unit
1 +
£48.99
