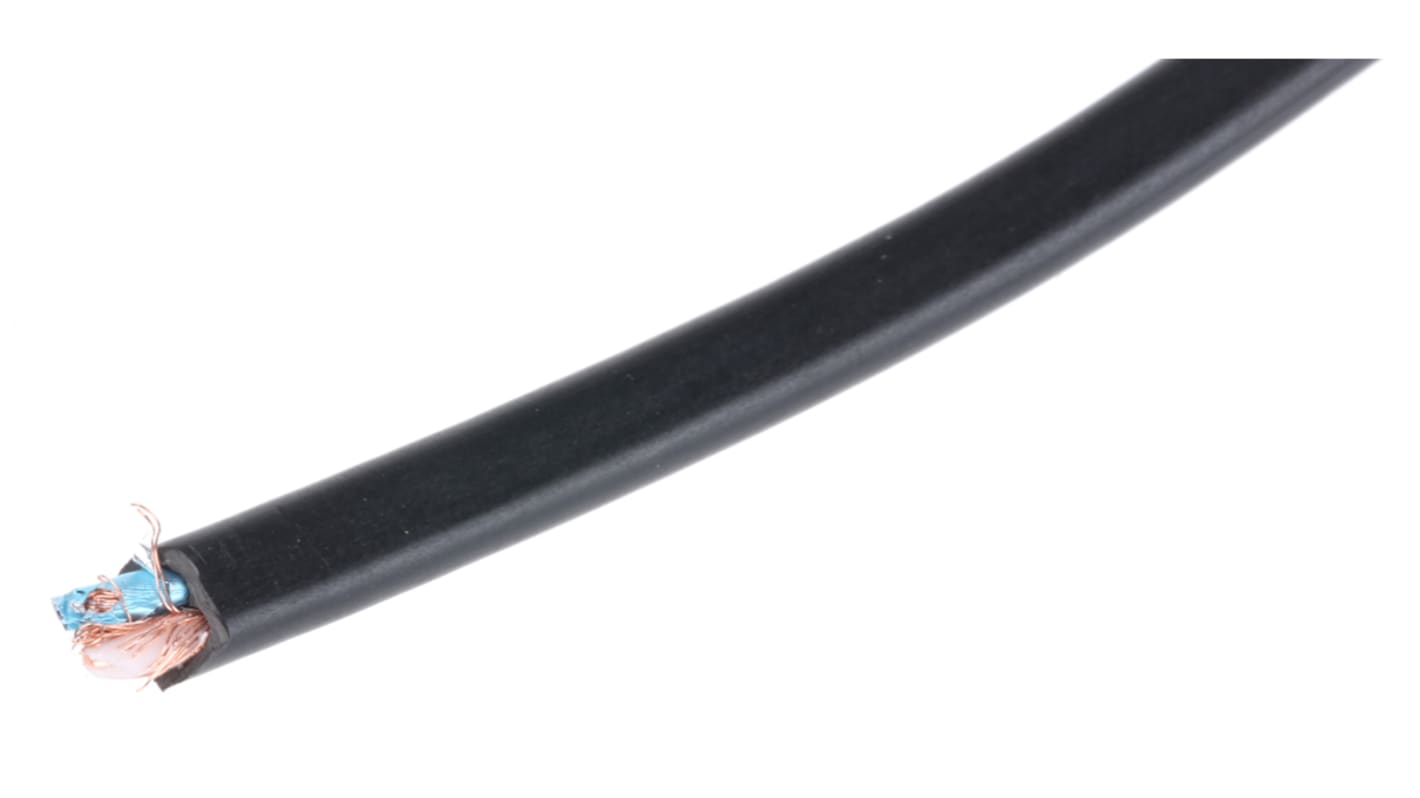

RS PRO Black Twinaxial Cable, 3.1mm OD 25m Reel

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Dual Coaxial Cable

Dual coaxial

S-VHS video cables are designed to transmit video signals in S-VHS video systems (also called Y/C systems due to the separate transmission of the luminance signal and the chrominance signal) and are used in professional audio and video (AV) environments and in consumer electronics

Dual Coaxial A / V Cable

The flat S-VHS video audio/video cable is designed to be split into a video section and two audio sections
Dimensions are designed for Mini-DIN connectors, SCART plugs (video) and audio connectors

Specifications
Attribute Value
Sheath Material Polyvinyl Chloride PVC
Sheath Colour Black
Reel Length 25m
Characteristic Impedance 62 Ω
Attenuation 2 dB/100m @ 1MHz, 2.8 dB/100m @ 2MHz, 4 dB/100m @ 5MHz, 5.6 dB/100m @ 10MHz, 8.4 dB/100m @ 20MHz, 13.9 dB/100m @ 50MHz, 19.8 dB/100m @ 100MHz
Insulation Material Foam PE
Outer Diameter 3.1mm
Capacitance 70 pF/m
Minimum Operating Temperature -20°C
Maximum Operating Temperature +70°C
Screened/Unscreened Unscreened
Velocity ratio 73%
Conductor Strand Type Solid
Number of Strands 1
Cable Shape Twinaxial
Connector Type Mini-DIN SCART
Size of Strands 0.37 mm
Core Strands 1/0.37 mm
Conductor Material Bare Copper
8 In stock for FREE next working day delivery
Price 1 Reel of 25 Metre(s)
£ 41.23
(exc. VAT)
£ 49.48
(inc. VAT)
Reel(s)
Per Reel
Per Metre*
1 +
£41.23
£1.649
*price indicative
