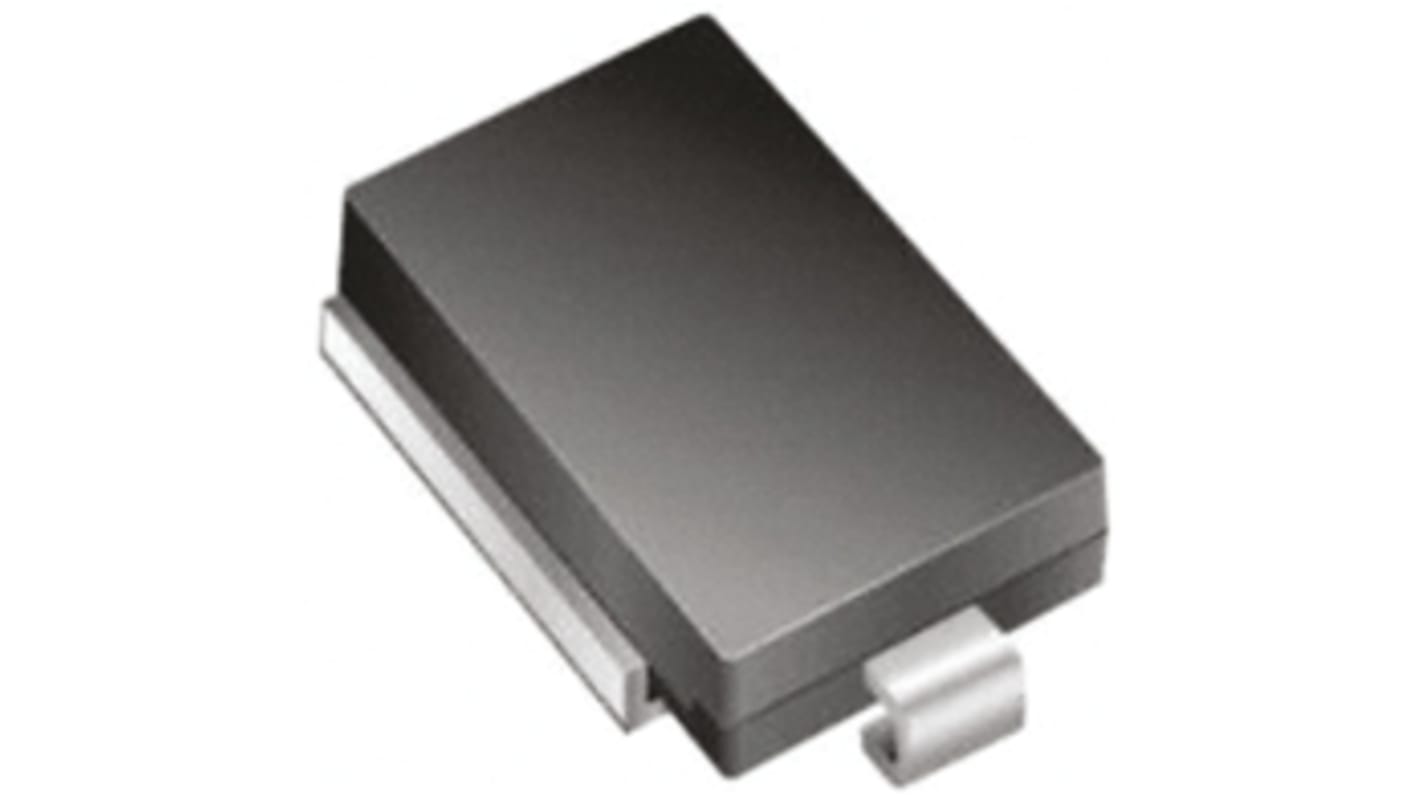

Vishay SM5A27HE3/2D, Uni-Directional TVS Diode, 3600W, 2-Pin DO-214AB
- RS Stock No.:
- 814-1345
- Mfr. Part No.:
- SM5A27HE3/2D
- Brand:
- Vishay
Discontinued product
- RS Stock No.:
- 814-1345
- Mfr. Part No.:
- SM5A27HE3/2D
- Brand:
- Vishay
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
PAR® Transient Voltage Suppressors SMT Unidirectional 3600W, Vishay Semiconductor
Transient Voltage Suppressors, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 40V |
| Minimum Breakdown Voltage | 24V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AB (SMC) |
| Maximum Reverse Stand-off Voltage | 22V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 3600W |
| Maximum Peak Pulse Current | 55A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Dimensions | 13.7 x 8.7 x 4.6mm |
| Maximum Operating Temperature | +175 °C |
| Length | 13.7mm |
| Maximum Reverse Leakage Current | 10µA |
| Height | 4.6mm |
| Width | 8.7mm |
| Test Current | 10mA |
