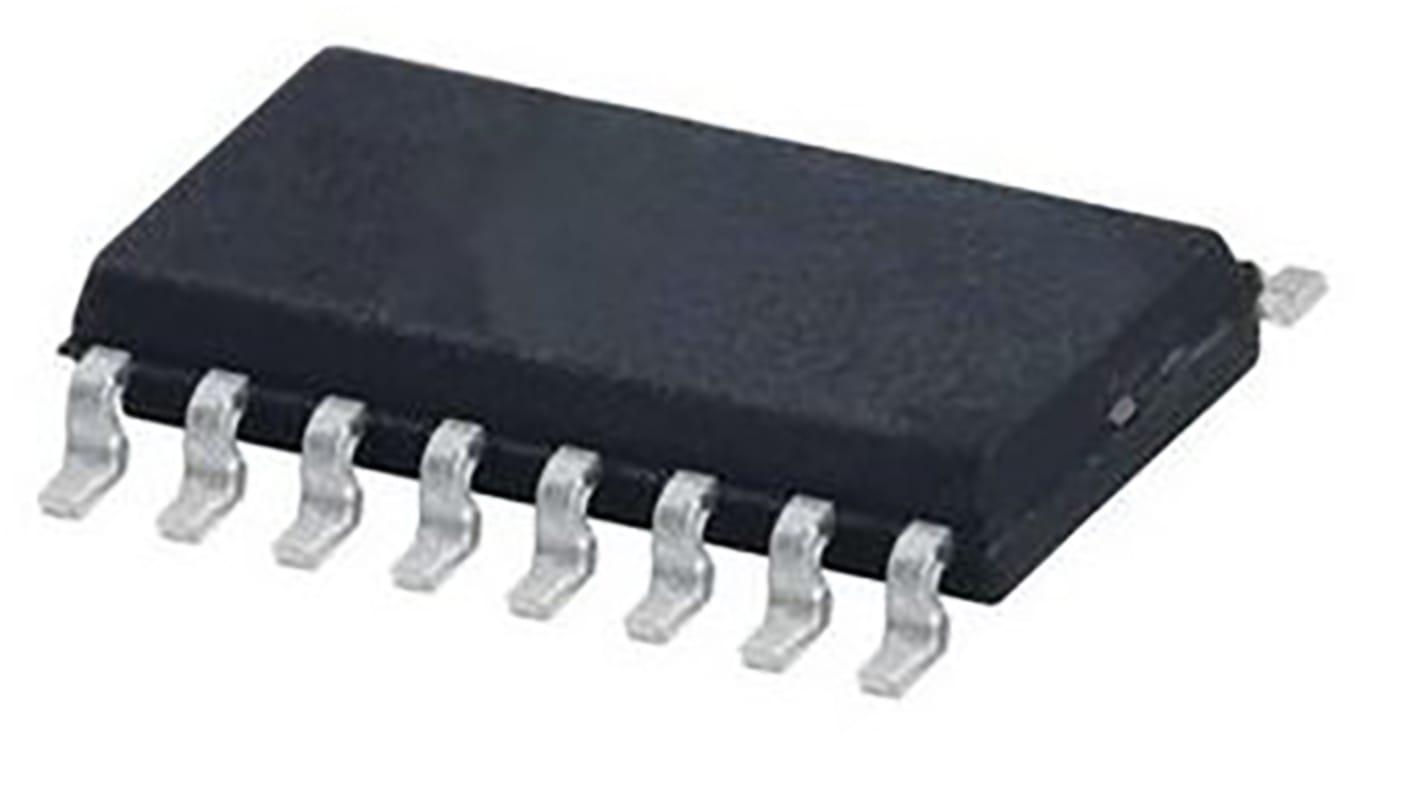

Littelfuse SP720ABG, 14-Element Uni-Directional Over-voltage Protector, 16-Pin SOIC
- RS Stock No.:
- 178-6966
- Mfr. Part No.:
- SP720ABG
- Brand:
- Littelfuse
2040 In stock - FREE next working day delivery available
Added
Price Each (In a Tube of 40)
£1.88
(exc. VAT)
£2.26
(inc. VAT)
| Units | Per unit | Per Tube* |
| 40 + | £1.88 | £75.20 |
| *price indicative | ||
- RS Stock No.:
- 178-6966
- Mfr. Part No.:
- SP720ABG
- Brand:
- Littelfuse
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details
TVS Diode Arrays, SP7xx Series
The SP7xx Series of TVS diode arrays are designed for ESD and over-voltage protection to sensitive input circuits. The series is suitable for data bus protection, microprocessor/logic protection, analog device input protection and voltage clamping.
Features:
Fast Switching
Low Input Leakages
Low Input Capacitance
General Purpose ESD Protection
Fast Switching
Low Input Leakages
Low Input Capacitance
General Purpose ESD Protection
Transient Voltage Suppressors, Littelfuse
Specifications
Attribute | Value |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Complex Array |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 16 |
| Maximum Peak Pulse Current | 3A |
| ESD Protection | Yes |
| Number of Elements per Chip | 14 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +105 °C |
| Dimensions | 10 x 4 x 1.5mm |
| Length | 10mm |
| Width | 4mm |
| Height | 1.5mm |
