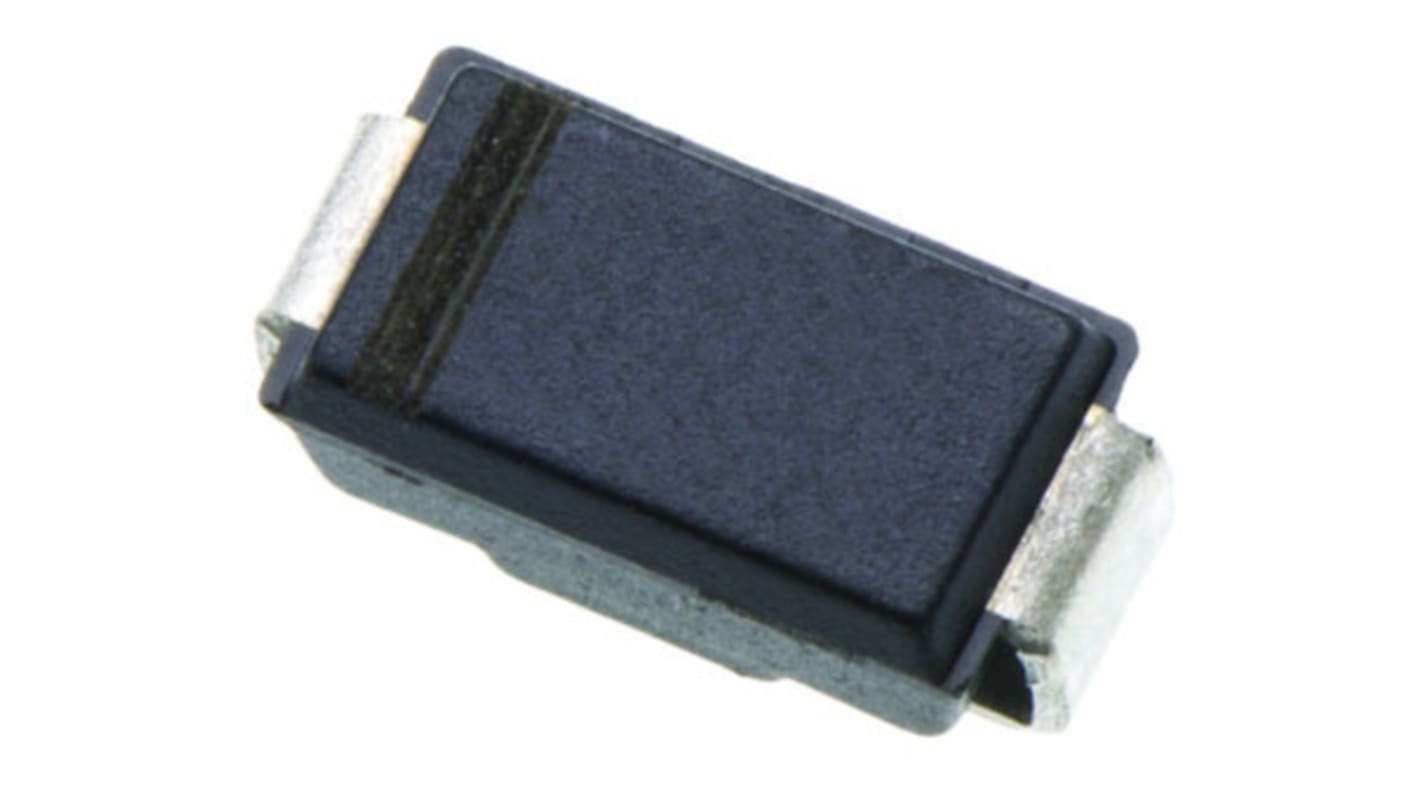

Bourns P4SMA350A, Uni-Directional TVS Diode, 400W, 2-Pin DO214AC
- RS Stock No.:
- 126-1749
- Mfr. Part No.:
- P4SMA350A
- Brand:
- Bourns
Discontinued product
- RS Stock No.:
- 126-1749
- Mfr. Part No.:
- P4SMA350A
- Brand:
- Bourns
Technical Reference
Legislation and Compliance
Product Details
P4SMA Series 400W TVS Diodes, Bourns Electronics
Transient Voltage Suppressor diodes with 400W peak pulse capacity in compact DO214AC (SMA) surface mount packages. Manufacturer’s part numbers with a “CA” suffix are bidirectional devices.
Transient Voltage Suppressors, Bourns Electronics
Specifications
Attribute | Value |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 482V |
| Minimum Breakdown Voltage | 368V |
| Mounting Type | Surface Mount |
| Package Type | DO214AC |
| Maximum Reverse Stand-off Voltage | 300V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 400W |
| Maximum Peak Pulse Current | 25A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Dimensions | 4.57 x 2.92 x 2.41mm |
| Maximum Operating Temperature | +150 °C |
| Height | 2.41mm |
| Width | 2.92mm |
| Length | 4.57mm |
| Surge Current Rating | 0.9A |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 1µA |
