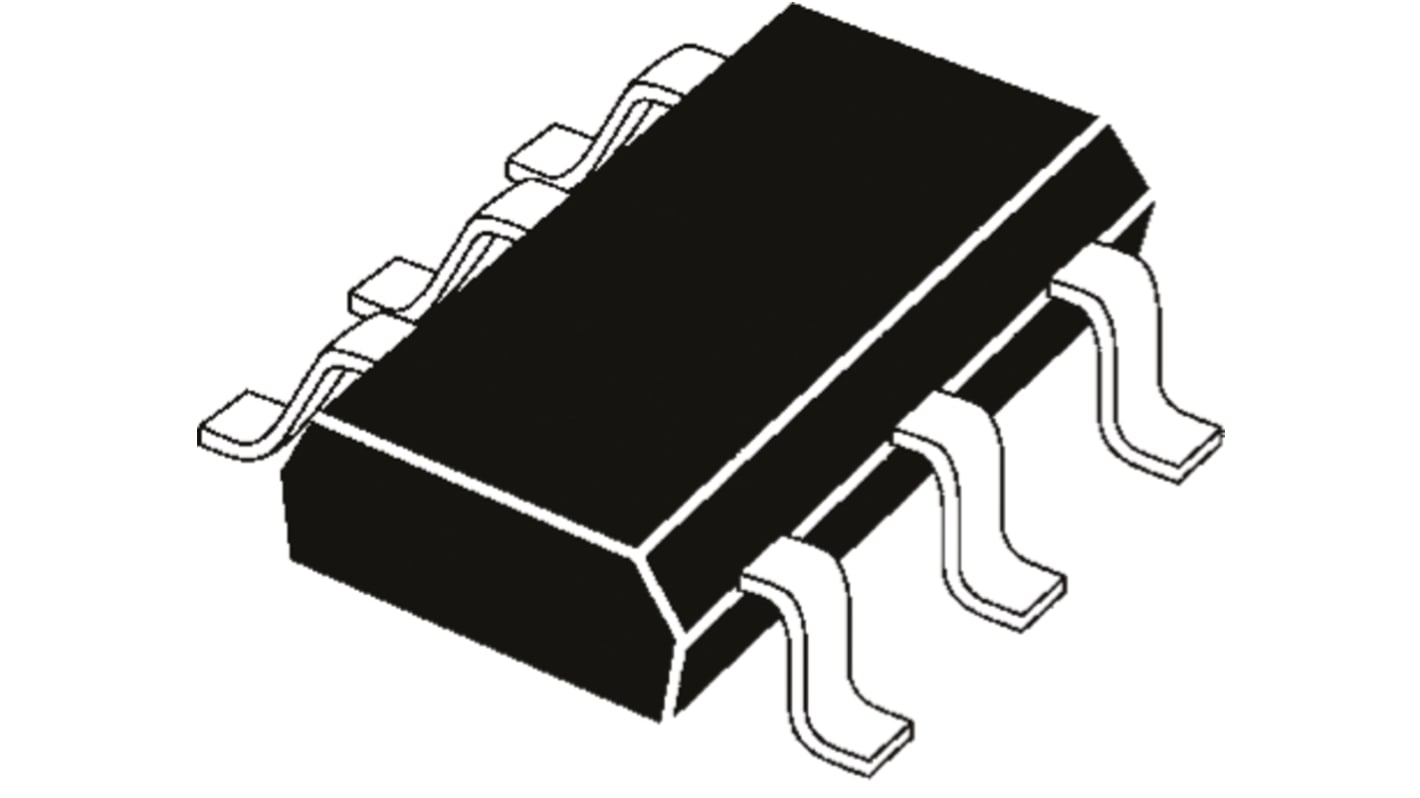

    Texas Instruments TXS0101DCKT, 1-Channel, Voltage Level Translator, , Voltage Level Translator, Open Drain, Push-Pull,

    RS Stock No.:
    825-5441
    Mfr. Part No.:
    TXS0101DCKT
    Brand:
    Texas Instruments
    Texas Instruments
    View all Translator ICs
    Discontinued product
    RS Stock No.:
    825-5441
    Mfr. Part No.:
    TXS0101DCKT
    Brand:
    Texas Instruments

    Legislation and Compliance


    Product Details

    Voltage-Level Translators, Texas Instruments



    Specifications

    AttributeValue
    Mounting TypeSurface Mount
    Package TypeSC-70
    Number of Elements per Chip1
    Output TypeOpen Drain, Push-Pull
    Pin Count6
    Logic FunctionVoltage Level Translator
    Dimensions2.15 x 1.4 x 1mm
    TranslationBi-Directional
    Maximum Propagation Delay Time @ Maximum CL260ns
    Maximum Operating Supply Voltage3.6 V, 5.5 V
    Maximum Operating Temperature+85 °C
    Minimum Operating Supply Voltage1.65 V, 2.3 V
    Minimum Operating Temperature-40 °C
    Discontinued product
