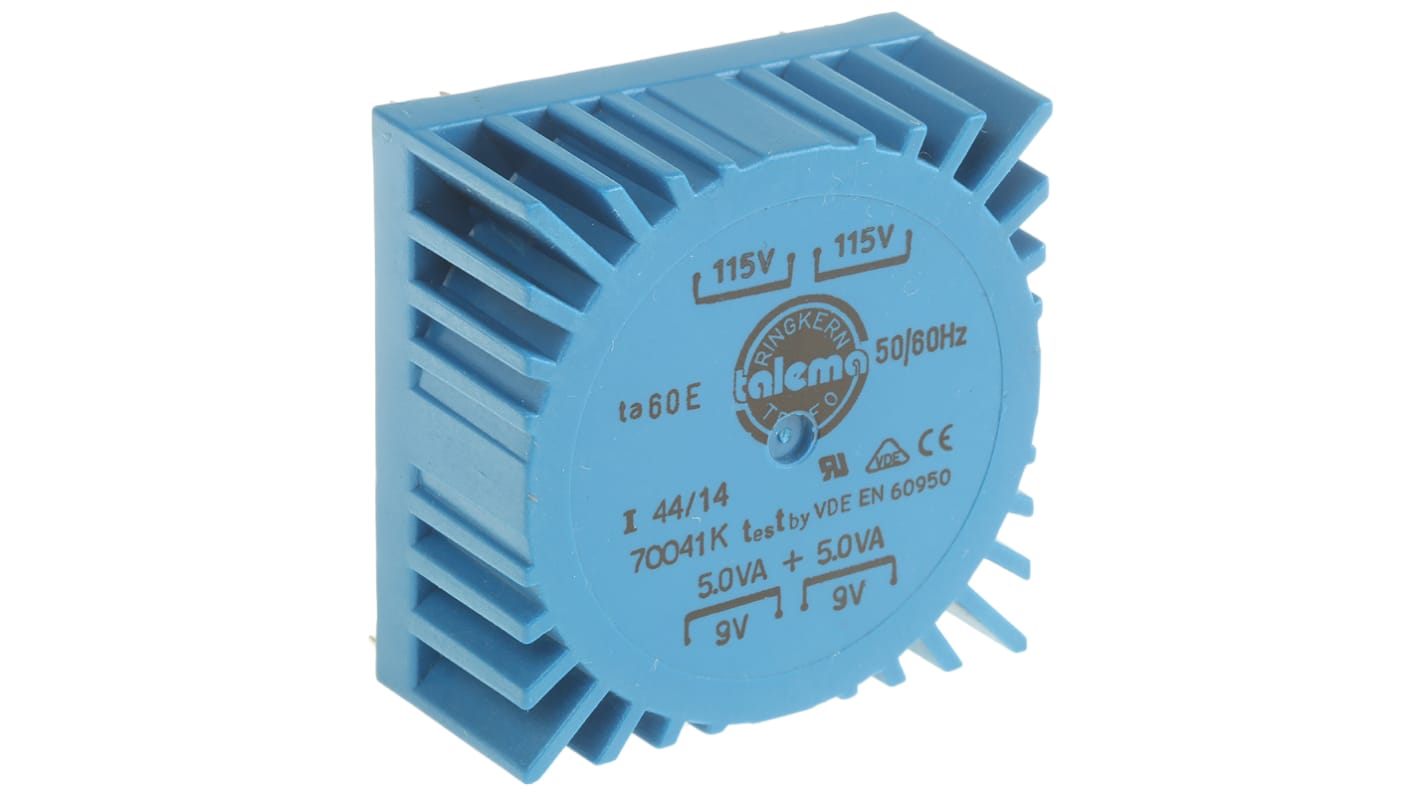

Nuvotem Talema 115 V ac, 230 V ac, 2 x 9V ac Toroidal Transformer, 10VA 2 Output
- RS Stock No.:
- 223-9266
- Mfr. Part No.:
- 70041K
- Brand:
- Nuvotem Talema
287 In stock - FREE next working day delivery available
Added
Price Each
£19.86
(exc. VAT)
£23.83
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £19.86 |
| 10 - 24 | £18.75 |
| 25 - 49 | £16.78 |
| 50 - 74 | £14.80 |
| 75 + | £12.81 |
- RS Stock No.:
- 223-9266
- Mfr. Part No.:
- 70041K
- Brand:
- Nuvotem Talema
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details
Miniature Encapsulated PCB Mount 115/230Vac Primary Transformers
This series of fully encapsulated PCB mounting toroidal transformers feature twin 115 V ac 50/60Hz primary windings that can be connected in series to a 230 V supply or in parallel for 115 V supplies. With a low weight and compact size, these toroidal transformers are ideal where space is at a premium, offering low magnetic interference, low noise and high efficiency. An M4 central bush allows for easy mounting
Low profile compact design
Fully encapsulated to UL94-V0
Extremely low level of radiated magnetic field
Extremely low level of hum and noise
High efficiency and low temperature rise
Ease of mounting
100% electrical and flash tested
Fully encapsulated to UL94-V0
Extremely low level of radiated magnetic field
Extremely low level of hum and noise
High efficiency and low temperature rise
Ease of mounting
100% electrical and flash tested
Standards
EN60950, VDE0805, UL506, UL1950, UL6500
Approvals
UL recognised, VDE
Approvals
EN60950; VDE 0805 (VDE 5803UG); UL 506 (E215495); UL 1950 (E218027; UL 6500 (E218027)
Encapsulated – Toroidal
Note
Fixing screws not provided
Specifications
Attribute | Value |
|---|---|
| Primary Voltage Rating | 115 V ac, 230 V ac |
| Secondary Voltage Rating | 2 x 9V ac |
| Power Rating | 10VA |
| Number of Outputs | 2 |
| Secondary Current | 556mA |
| Weight | 252g |
| Dimensions | 55 x 55 x 26mm |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Mounting Type | PCB |
| Termination Type | Pin |
| Fixing Hole Diameter | M4 |
| Maximum Temperature | +60°C |
