RS PRO 2 x 115V ac, 2 x 15V Toroidal Transformer, 7VA
- RS Stock No.:
- 124-3858
- Brand:
- RS PRO
38 In stock - FREE next working day delivery available
Added
Price Each
£14.56
(exc. VAT)
£17.47
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £14.56 |
| 10 - 24 | £13.70 |
| 25 - 49 | £12.68 |
| 50 - 99 | £11.80 |
| 100 + | £10.62 |
- RS Stock No.:
- 124-3858
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

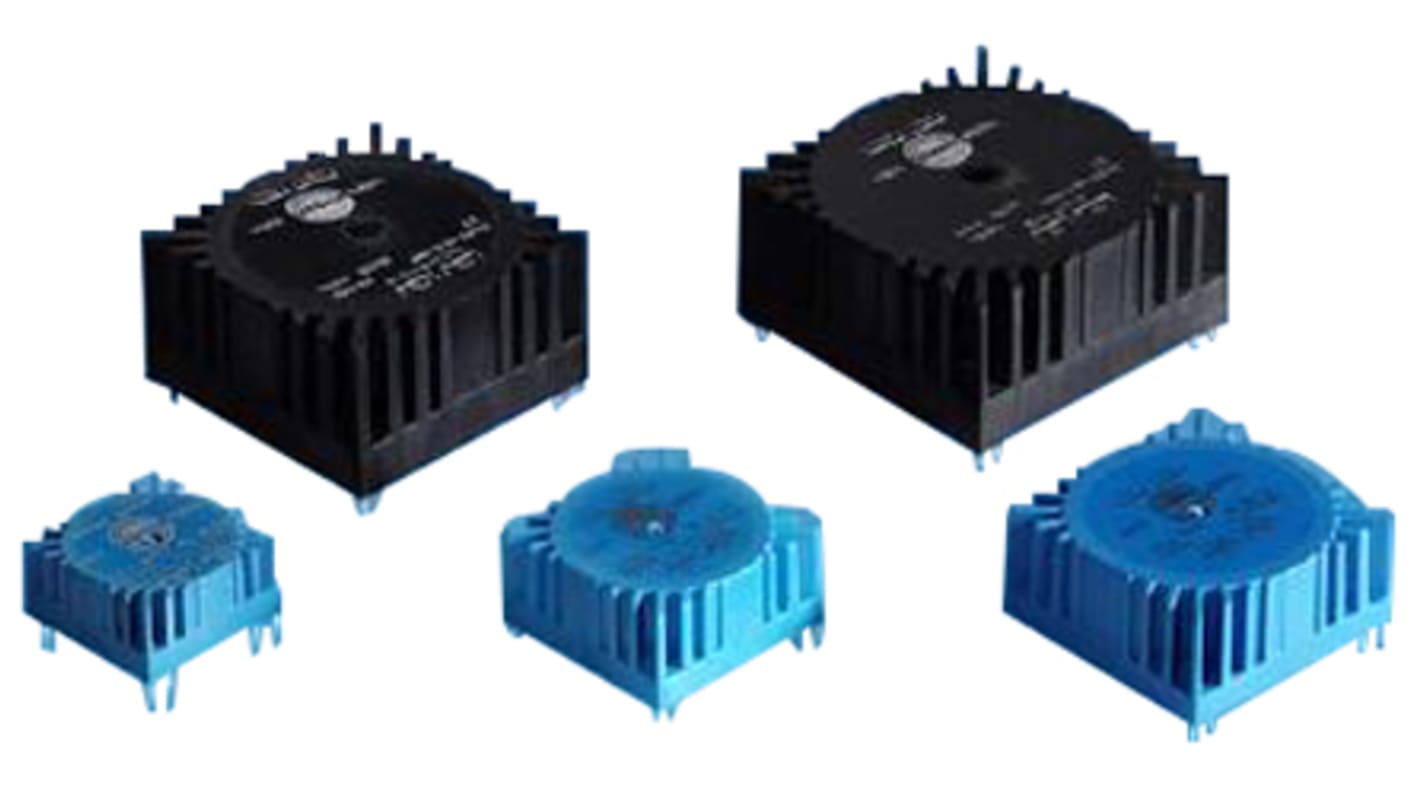

RS Pro Toroidal PC Transformer 1.6VA- 25VA
RS Pro toroidal PC transformers are high efficiency and low profile being a small size and low weight. These Toroidal transformers have low iron loss and low induced noise. Dual 115 V primaries for parallel or series connections.
Features
Lower stray field
Reduced standby current
Test voltage primary- secondary 4.0 KV
Ease of mounting- M4 Centre bush
Ambient operating temperature: +60°C Max
Fully RoHS & REACH compliant
Reduced standby current
Test voltage primary- secondary 4.0 KV
Ease of mounting- M4 Centre bush
Ambient operating temperature: +60°C Max
Fully RoHS & REACH compliant
Encapsulated – Toroidal
Note
Fixing screws not provided
Specifications
Attribute | Value |
|---|---|
| Primary Voltage Rating | 2 x 115V ac |
| Secondary Voltage Rating | 2 x 15V |
| Power Rating | 7VA |
| Height | 23.1mm |
| Weight | 174g |
| Dimensions | 49.7 x 49.7 x 23.1mm |
| Maximum Operating Frequency | 50Hz |
| Mounting Type | Through Hole |
| Maximum Temperature | +60°C |
| Isolation Voltage | 4kV |
