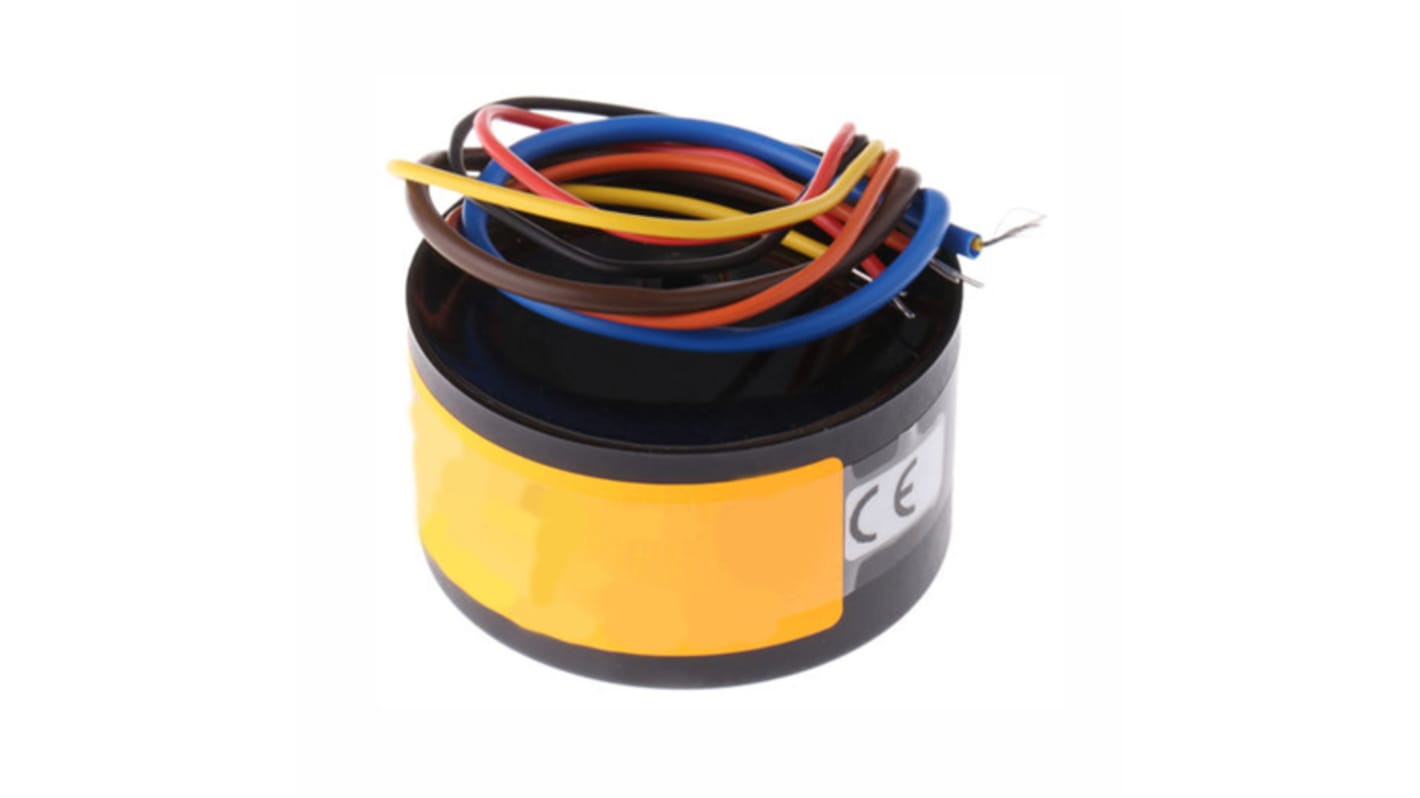

RS PRO 230V ac, 2 x 25V ac Toroidal Transformer, 15VA 2 Output

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CZ
Product Details

RS Pro Encapsulated Transformers Single Primary Winding15VA-500VA

RS Pro High-quality encapsulated toroidal transformers with a single 230 Vac 50/60 Hz primary winding. Twin secondary windings can be connected in series or parallel or used independently. Designed for easy mounting with centre hole fixing.

Features

Fully encapsulated to UL94-V0
Case material meets UL94-V0, Nylon 6.6
Small size and low weight compared with traditional stacked lamination types
Low induced noise (hum)
Low iron loss
Double insulated primary leads
Low surface temperature
Fixing bolt not included
100% electrical and flash tested

Standards

UL506
UL5085-1
EN61558-1 Class II
EN60065 Class II

Toroidal Encapsulated 230Vac Primary 15VA to 500VA

Specifications
Attribute Value
Primary Voltage Rating 230V ac
Secondary Voltage Rating 2 x 25V ac
Power Rating 15VA
Number of Outputs 2
Height 35mm
Weight 300g
Diameter 63mm
Dimensions 63 (Dia.) x 35mm
Minimum Operating Frequency 50Hz
Maximum Operating Frequency 60Hz
Mounting Type Surface Mount
Termination Type Lead Wire
Available to back order for despatch 24/04/2020
Price Each
£ 17.45
(exc. VAT)
£ 20.94
(inc. VAT)
Units
Per unit
1 - 9
£17.45
10 - 24
£14.84
25 - 49
£13.09
50 +
£12.00
