- RS Stock No.:
- 819-9278
- Mfr. Part No.:
- MTE 106 F
- Brand:
- KNITTER-SWITCH
- RS Stock No.:
- 819-9278
- Mfr. Part No.:
- MTE 106 F
- Brand:
- KNITTER-SWITCH
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

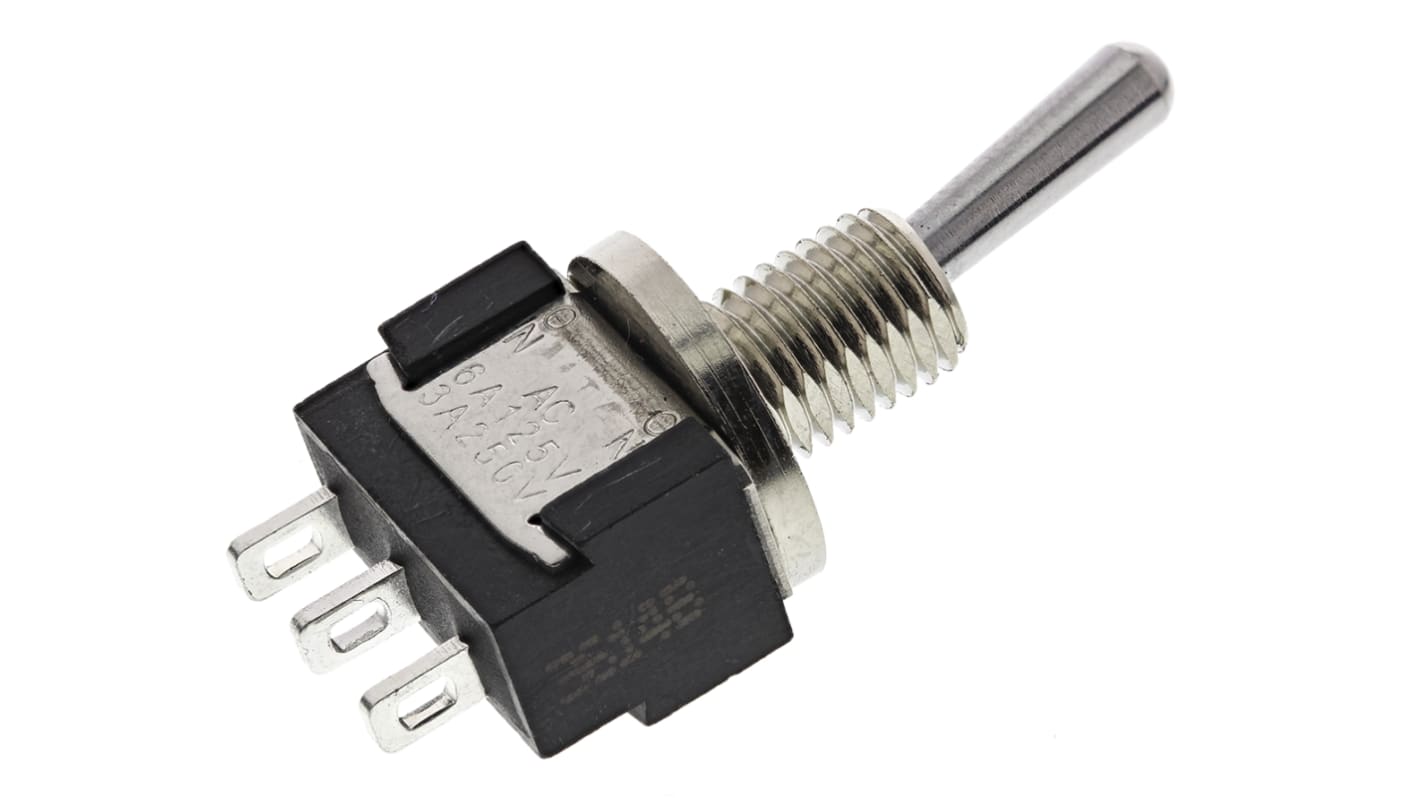

MTE Series - Waterproof IP67
2 and 3 position, single, double and triple pole panel mount toggle switches
Chromium-plated actuator
Solder tags; copper alloy silver plated
Silver plated contacts
Max. panel thickness; 1.5mm
Chromium-plated actuator
Solder tags; copper alloy silver plated
Silver plated contacts
Max. panel thickness; 1.5mm
Approvals
UL
Specifications
Attribute | Value |
---|---|
Contact Configuration | SPDT |
Switch Operation | On-(On) |
Contact Current Rating | 4 A @ 30 V dc |
Mounting Type | Panel Mount |
Terminal Type | Solder |
IP Rating | IP67 |
Panel Cut Out Width | 6.1mm |
Panel Cut Out Height | 5.5mm |
Actuator Length | 10.5mm |
Contact Resistance | <10mΩ |
Contact Material | Silver Plated Copper Alloy |
Panel Cut Out Size | 6.1mm |
Minimum Operating Temperature | -45°C |
Maximum Operating Temperature | +140°C |
Operating Temperature Range | -45 → +140°C |
Mechanical Life | 100000Operations |
