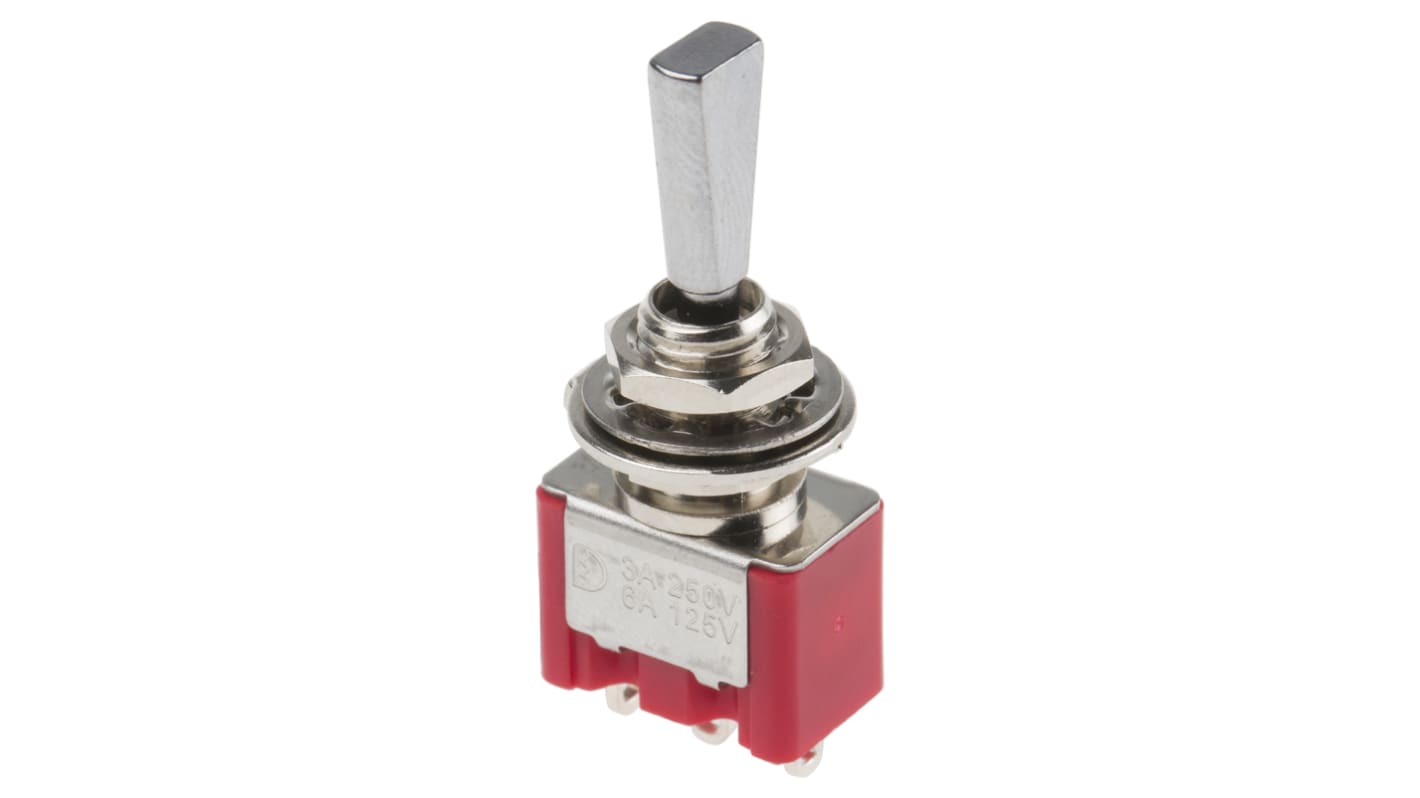

RS PRO Single Pole Double Throw (SPDT) Toggle Switch, On-Off-On, Panel Mount

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Water Resistant Miniature Toggle Switches - RS Series

Water-resistant RS series of PCB mount miniature toggle switches with a low contact resistance and are available with either Gold (Q) or Silver (R) contact material. The RS series miniature toggle switches have a minimum insulation resistance of 500MΩ and a minimum dielectric strength of 1000 Vrms at sea level.

Water-resistance: 100 make-and-break cycles minimum at a depth of 10cm

Specifications
Attribute Value
Contact Configuration Single Pole Double Throw (SPDT)
Switch Operation On-Off-On
Contact Current Rating 3 A @ 250 V ac
Mounting Type Panel Mount
Terminal Type Solder
Actuator Length 11.5mm
Actuator Material Chromium Plated Brass
Contact Resistance 10mΩ
Standards Met RoHS & Lead Free
Mechanical Life 200000Cycles
Operating Temperature Range -30 +85°C
Minimum Operating Temperature -30°C
Contact Material Silver Plated
Maximum Operating Temperature +85°C
