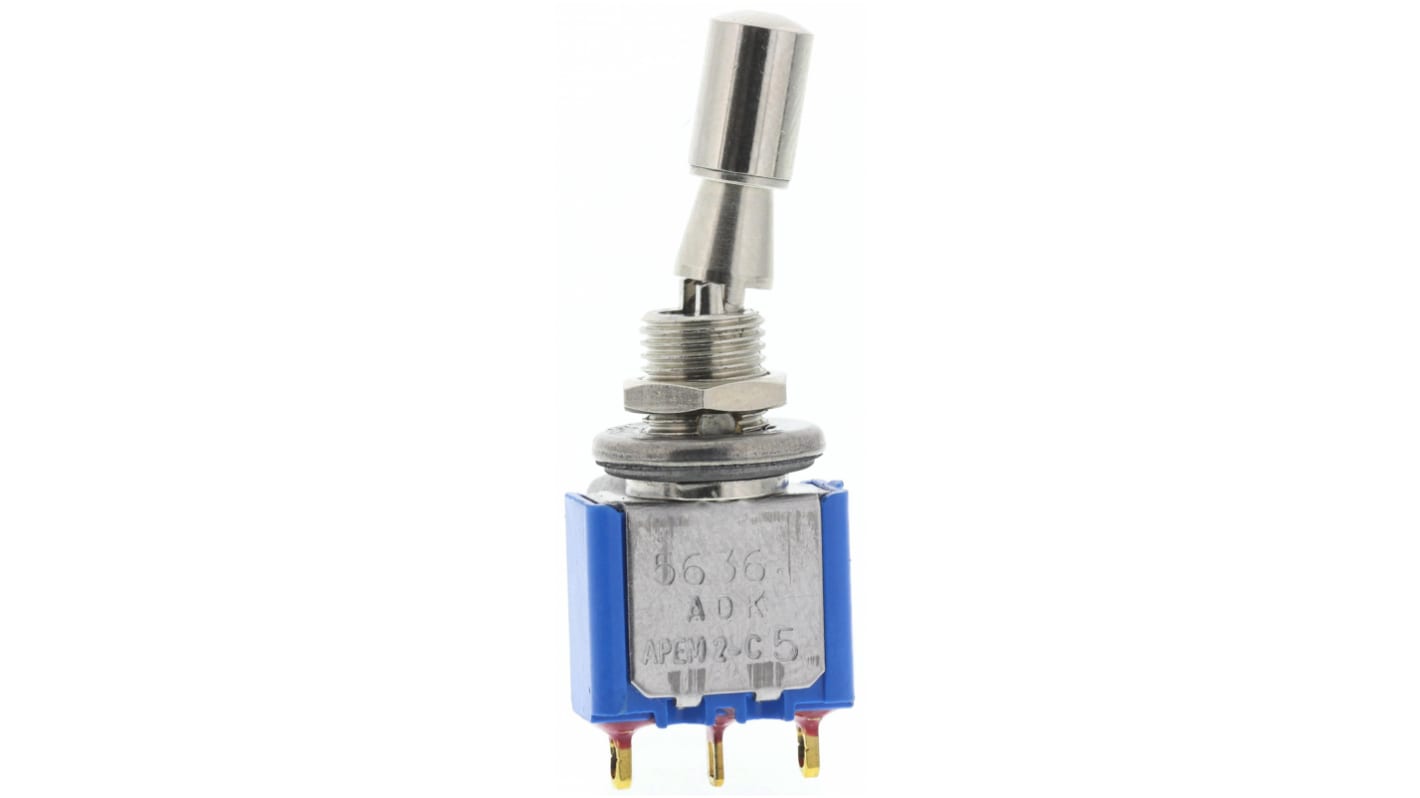

APEM Toggle Switch, Panel Mount, On-On, SPDT, Solder Lug Terminal, 30V dc

RS Stock No.:: 692-5211
Mfr. Part No.:: 5636ADBK2V
Brand:: APEM

APEM Toggle Switch, Panel Mount, On-On, SPDT, Solder Lug Terminal, 30V dc

72 In stock - FREE next working day delivery available

32 available from Europe for delivery within 1 working day(s).

Added

Price Each

£17.06

(exc. VAT)

£20.47

(inc. VAT)

Units	Per unit
1 - 24	£17.06
25 - 49	£13.98
50 - 99	£12.79
100 - 249	£11.94
250 +	£10.91

RS Stock No.:: 692-5211
Mfr. Part No.:: 5636ADBK2V
Brand:: APEM

Technical Reference

Legislation and Compliance

COO (Country of Origin):: FR

Product Details

Toggle Switches, Standard Lever

Panel mount switches with a large variety of contact configurations
Solder lug termination. Bush thread 1/4 - 40UNS (6.35 - 4UNS)
Brass actuator and Diallyl Phthalate case
Panel cut-out 6.35 mm

Note

For biased switches '(on)' refers to momentary 'on' position

Approvals

UL; CSA; CECC; LNZ; GAM T1; QPL (Europe); MUAHAG; NATO

Approvals

UL; CSA; CECC; LNZ; GAM T1; (Europe); MUAHAG; NATO; VDE

Specifications

Attribute	Value
Contact Configuration	SPDT
Switch Operation	On-On
Contact Current Rating	4 A @ 30 V dc
Mounting Type	Panel Mount
Terminal Type	Solder Lug
Illuminated	No
Panel Cut Out Diameter	6.5mm
Actuator Length	14.75mm
Actuator Material	Nickel Plated Brass
Voltage Rating	30V dc
Contact Resistance	10mΩ
Contact Material	Gold Plated Silver
Panel Cut Out Size	6.5mm
Maximum Operating Temperature	+85°C
Mechanical Life	100000Operations
Operating Temperature Range	-40 → +85°C
Minimum Operating Temperature	-40°C
