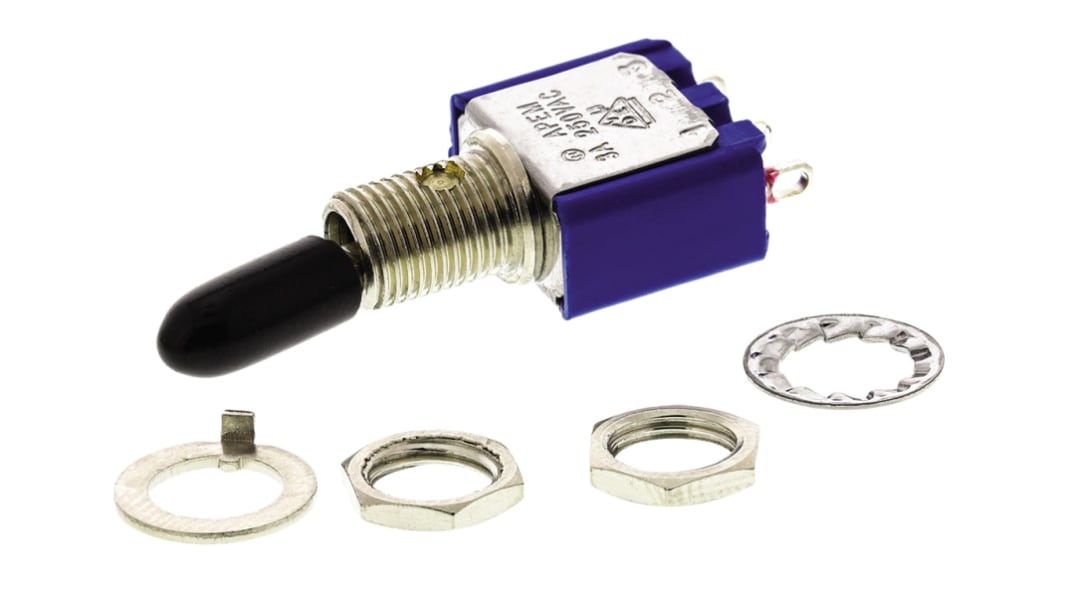

APEM Toggle Switch, Panel Mount, On-On, SPDT, Solder Terminal
- RS Stock No.:
- 236-9159
- Mfr. Part No.:
- 55636AVDE
- Brand:
- APEM
Available to back order for despatch 19/09/2024
Added
Price Each
£8.18
(exc. VAT)
£9.82
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £8.18 |
| 25 - 49 | £6.71 |
| 50 - 99 | £6.13 |
| 100 - 249 | £5.73 |
| 250 + | £5.23 |
- RS Stock No.:
- 236-9159
- Mfr. Part No.:
- 55636AVDE
- Brand:
- APEM
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Series 55000 Switches
Toggle switches, VDE approved.
The insulating cover is bonded to the lever.
Earth washers are available separately for mounting on panels not made of metal or not connected to earth.
Terminations sealed with epoxy resin.
The insulating cover is bonded to the lever.
Earth washers are available separately for mounting on panels not made of metal or not connected to earth.
Terminations sealed with epoxy resin.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPDT |
| Switch Operation | On-On |
| Contact Current Rating | 4 A @ 30 V dc |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Panel Cut Out Diameter | 6.35mm |
| Actuator Length | 11.5mm |
| Actuator Material | Chromium Plated Brass |
| Contact Material | Silver |
| Panel Cut Out Size | 6.35mm |
| Contact Resistance | 0.1Ω |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
